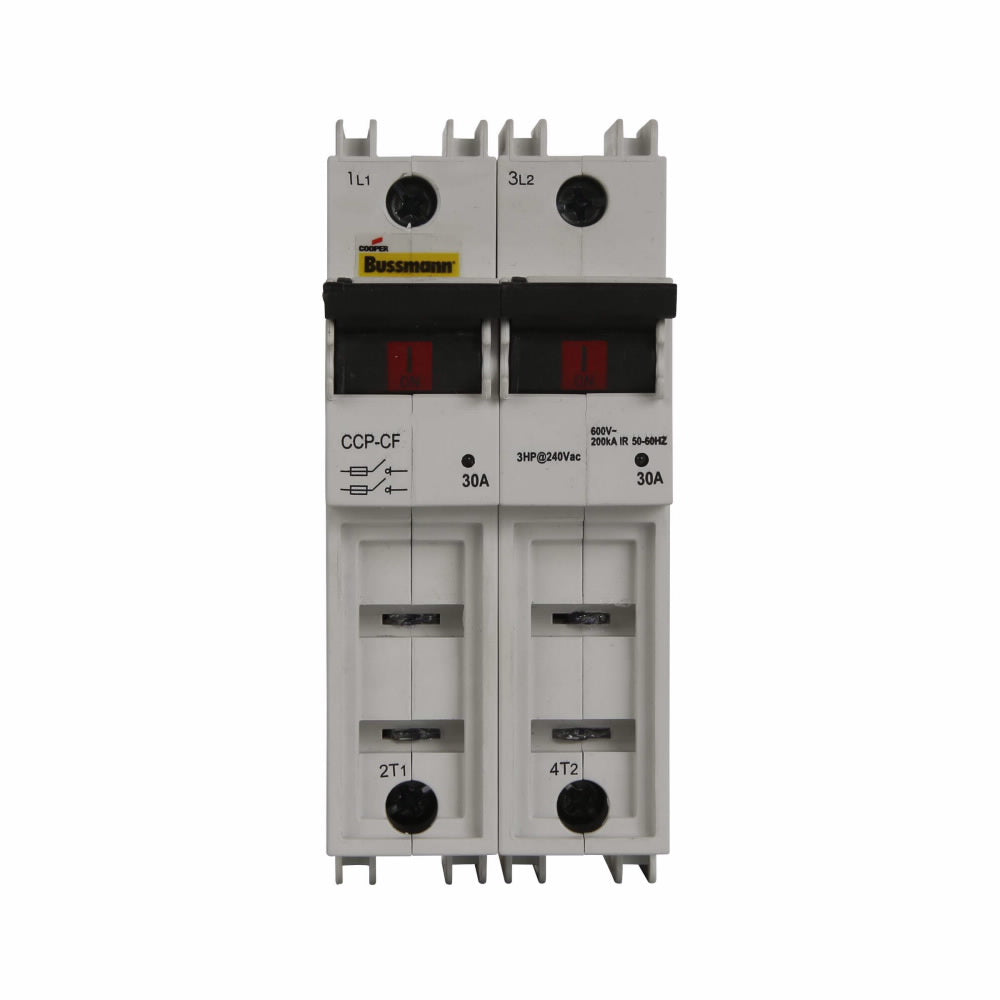

Eaton CCP-2-30CF BUS COMPACT CIRCUIT PROTECTOR 2 POLE 30A CF

Product Description

Eaton CCP-2-30CF is a compact circuit protector and fusible disconnect. It operates at six hundred volts AC and one hundred twenty-five volts DC, providing thirty amperes of current through two poles. Designed for easy mounting on DIN rails, it features a padlockable handle for enhanced safety.

• Compact design, 25.4 millimeters wide per pole
• DIN rail mounting for simplified installation
• Wide operating temperature range, from minus twenty to seventy-five degrees Celsius

Product Highlights

The Eaton CCP-2-30CF offers reliable performance in a compact format and ensures safety during operation. It is ideal for branch circuit disconnect and protection applications.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171220147

Technical Specifications

• Voltage Rating: 600 VAC/125 VDC
• Amperage Rating: 30 A
• Fuse Type: Class CF
• Number of Poles: 2
• Mounting Type: DIN Rail
• Operating Temperature: -20 to 75 degrees C
• Width: 3 inches
• Height: 4.5 inches
• Depth: 3 inches
• Application: Branch Circuit Disconnect/Protection, Electrical Assemblies, Panels, and EOEMs Applications
• Standards/Approvals: CE Marked, cULus Listed, UL 98, UL94 V-0 Rating
