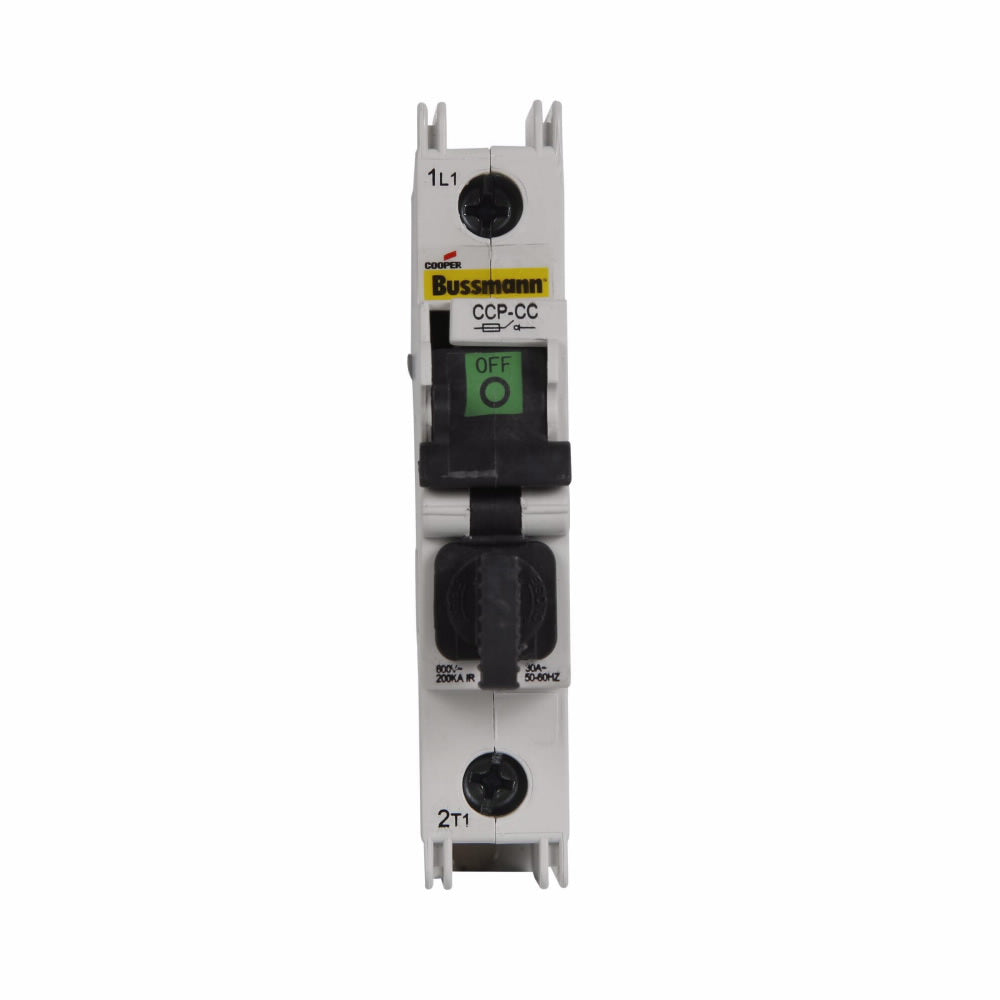

Eaton CCP-1-30M BUSS Comp Circuit Protec 1Pole 10X38MM Midget 5171215794 (6)

Product Description

The Eaton CCP-1-30M is a Bussmann CUBEFuse® Compact Circuit Protector designed for effective fusible disconnect solutions. It operates within a voltage range of 240 to 600 VAC and 125 VDC, making it suitable for various applications.

• Rated for 30 amps.
• One pole configuration.
• Compatible with midget fuses and various wire sizes (18 to 6 AWG).

Product Highlights

This compact device features DIN rail mounting and a padlockable handle for safe operation. It ensures high short circuit current ratings and is made for use in branch circuit protection and electrical assemblies.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171215794

Technical Specifications

• Amperage Rating: 30 A
• Application: Branch Circuit Disconnect/Protection, Electrical Assemblies and Panels Applications
• Depth: 3.1 inches
• Fuse Type: Midget
• Height: 3.7 inches
• Manufacturer Part Number: CCP-1-30M
• Mounting Type: DIN Rail
• Number of Poles: 1
• Operating Temperature: -20 to 75 degrees C
• Operator: Padlockable Handle
• Series: CCP
• Standards/Approvals: UL 508, cULus Listed, cULus 22.2 No. 14-05, CE Marked
• Type: Fusible Disconnect
• Voltage Rating: 240 to 600 VAC/125 VDC
• Width: 2.1 inches
