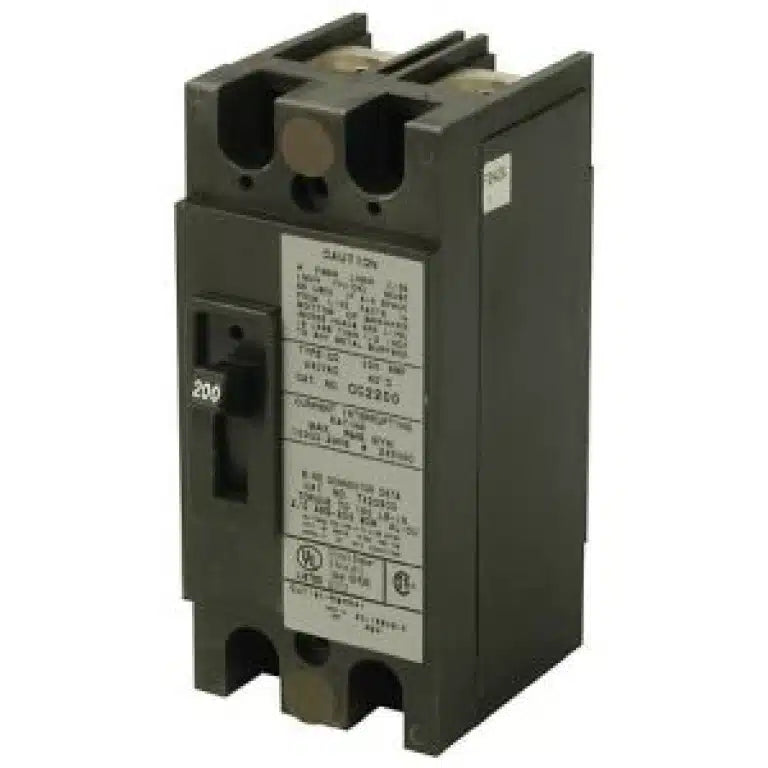

Eaton CC2200X Tenant Main Breaker 200A

Product Description

The EATON CC2200X tenant main circuit breaker is a two-pole breaker with a 200A amperage rating and a voltage rating of 120/240V. It has a 10 kAIC interrupt rating and is suitable for use with type ECC unit enclosures. This thermal magnetic breaker provides supplementary and branch circuit protection.

• Amperage Rating: 200 A
• Voltage Rating: 120/240 V
• Interrupt Rating: 10 kAIC

Product Highlights

Eaton CC2200X tenant main breaker offers reliable circuit protection for various applications, ensuring safety and optimum performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CC2200X

Technical Specifications

• UPC: 786685368580
• Product Length/Depth: 8 in
• Product Height: 5.5 in
• Product Width: 4.5 in
• Warranty: Limited lifetime residential, 1 year commercial
• Certifications: UL 489
• Catalog Notes: Terminals-standard lugs (wire connectors) suitable for copper or aluminum wire.
• Product Type: Tenant main breaker
• Used with: Type ECC Unit Enclosures
• Amperage Rating: 200 A
• Voltage rating: 120/240 V
• Interrupt rating: 10 kAIC
• Wire size: #2/0 AWG-300 kcmil Cu/Al
• Number of poles: 2
• Type: Thermal Magnetic Breaker
• Mount Type: Bolt-On
• Voltage Maximum: 240V AC
• Number of Poles: 2P
• Amps: 200A
• kA IR 240V AC: 10
• Frame Type: Type CC
• Mounting Style: Panel, Bolt-On
• Current Type: AC
• Maximum Amperage: 200 A
• AIC: 10kA@240V
