EATON C58 CRH C58 1 1/2 NPT IRON C FORM 8

Product Description

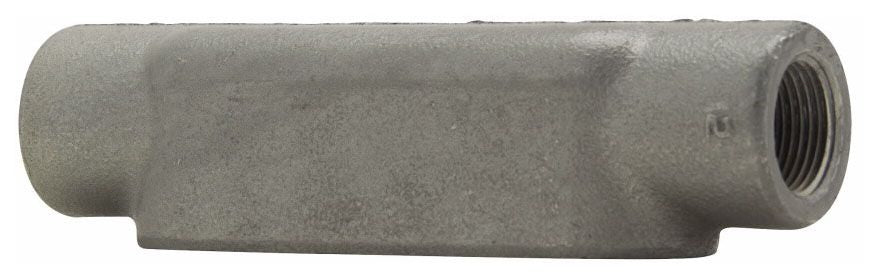

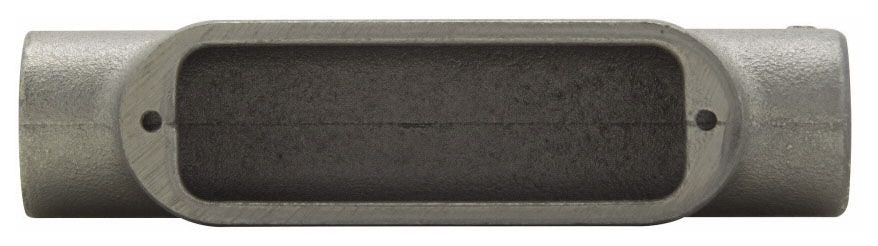

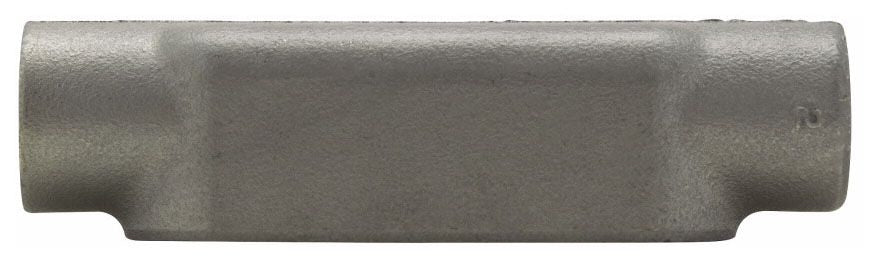

The EATON C58 is a rigid conduit body designed for use in electrical installations. It features a side configuration access opening and is constructed from a durable feraloy iron alloy, ensuring long-lasting performance. This model includes a straight hub location with two hubs, each with a hub size of one and a half inches. The dimensions of the product are ten and three-eighths inches in length, two and three-fourths inches in width, and two and twenty-five thirty-seconds inches in height.

• Constructed from electrogalvanized aluminum and feraloy iron alloy.
• UL 514B/50E and CSA C22.2 approved for reliability.
• Suitable for non-hazardous locations and compliant with federal specifications.

Product Highlights

The EATON C58 is ideal for providing access to conductors in a rigid conduit installation. It acts as a pull outlet, facilitating splices and taps.

Product Information

Standard Information

• Brand: EATON
• Manufacturer: Crouse-Hinds

Technical Specifications

• Form Type: Form 8
• Material: Feraloy iron alloy
• Hub Size: 1-1/2 inches
• Number of Hubs: 2
• Approval: UL 514B/50E, CSA C22.2
• Dimensions: 10-3/8 inches L x 2-3/4 inches W x 2-25/32 inches H
• Connection Type: Threaded
