Eaton C440B1A100SF3 C440 55MM EOL FRE

Product Description

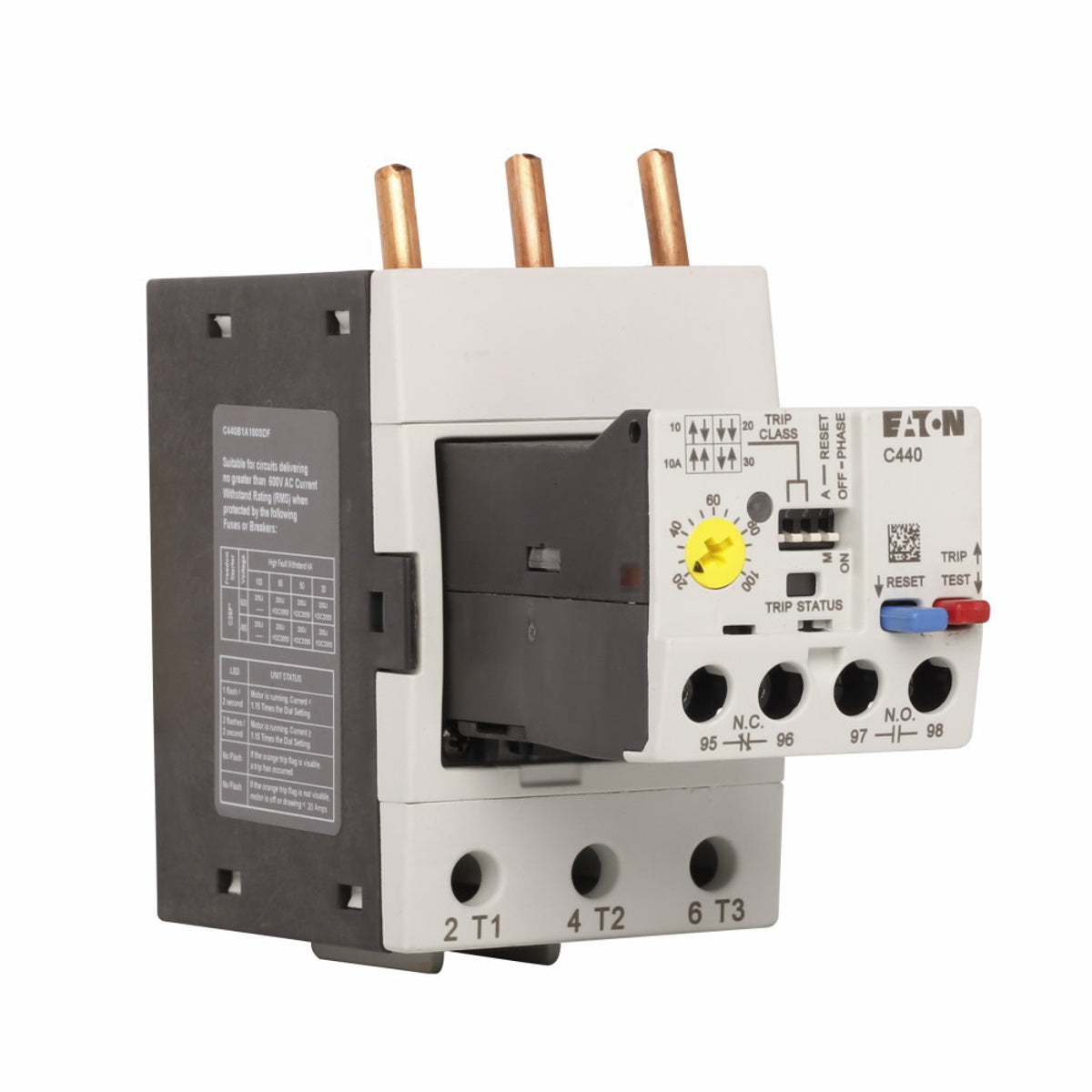

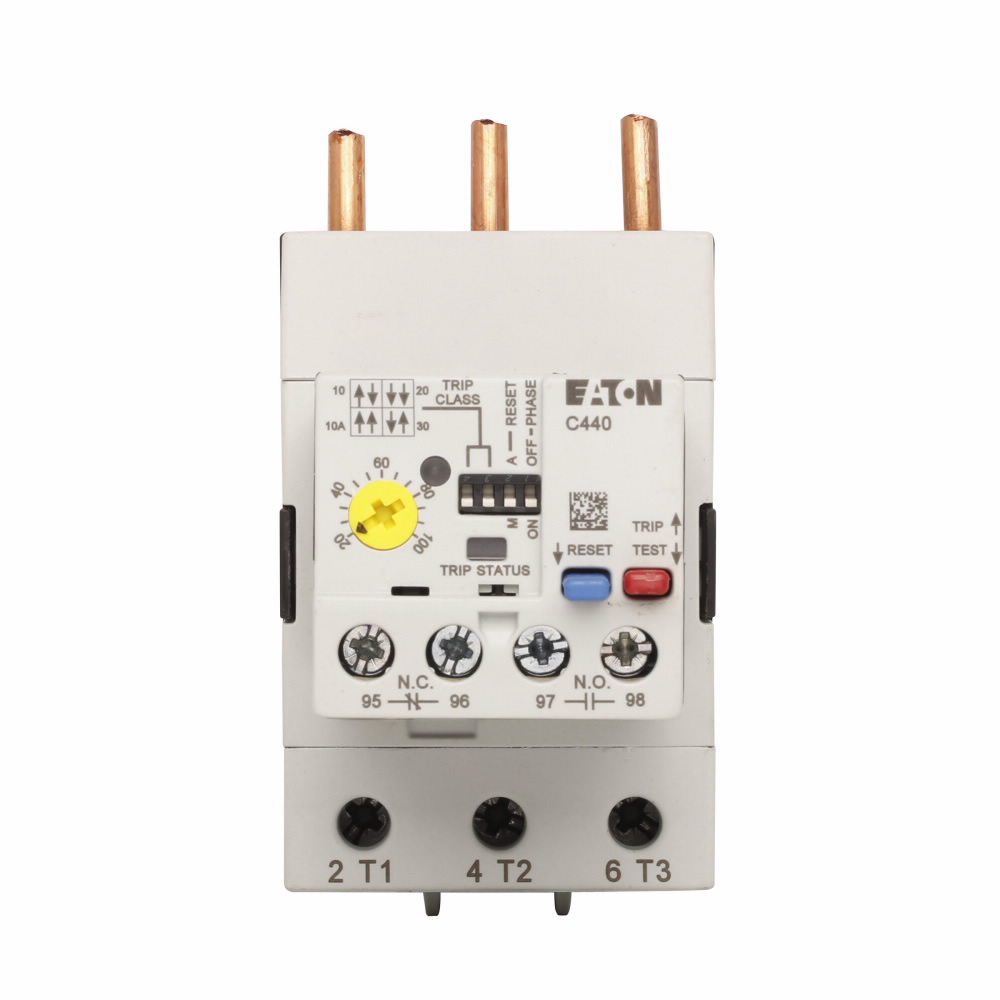

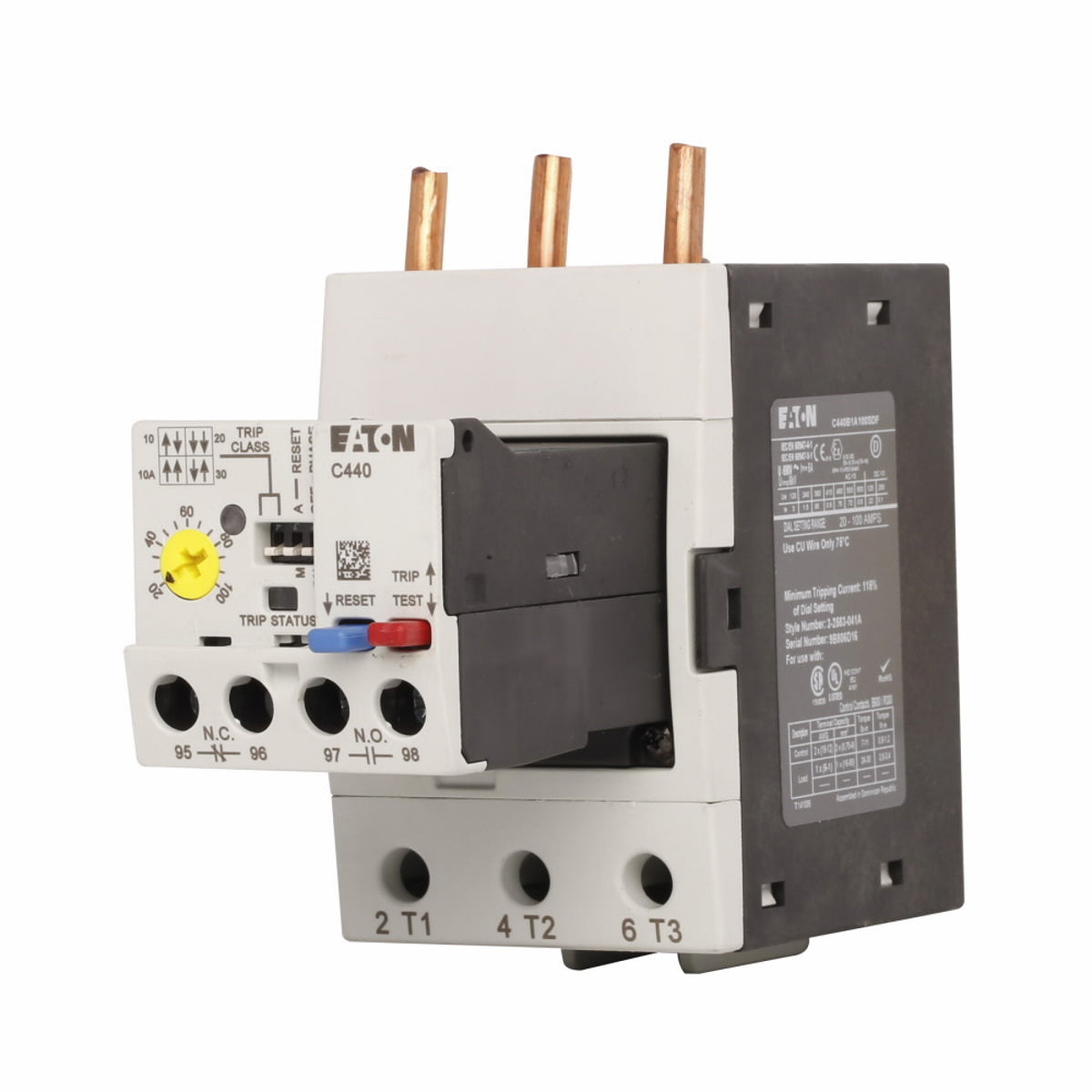

The Eaton C440B1A100SF3 is an electronic overload relay designed for efficient motor protection. This product features a compact design with a NEMA Freedom Size three frame, making it suitable for various commercial applications.

• Selectable overload range: 20-100A
• Trip types of Class 10, 20, or 30
• UL Listed for safety and reliability

Product Highlights

The Eaton C440B1A100SF3 provides reliable overload protection while monitoring motor currents across each phase. It features electronic thermal modeling for precision performance.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: C440B1A100SF3
• Type: Electronic Overload Relay
• Frame Size: 55 mm
• Width: 2.21 inches
• Height: 4.13 inches
• Length: 5.52 inches
• Weight: 0.87 lb
• Amperage Rating: 20A to 100A
• Trip Type: 10A, Class 10, 20, 30
• Reset Type: Selectable Auto/Manual
• UPC: 786685411941
• GTIN: 00786685411941
• Application: Commercial/Institutional Buildings
• Standard: CE Marked, CSA, UL
