Eaton C440B1A100SDF C440 Electronic Overload Relay Definite Purpose 55mm Frame Selectable 10A Class 10 20 30 Overload 20-100A Standard

Product Description

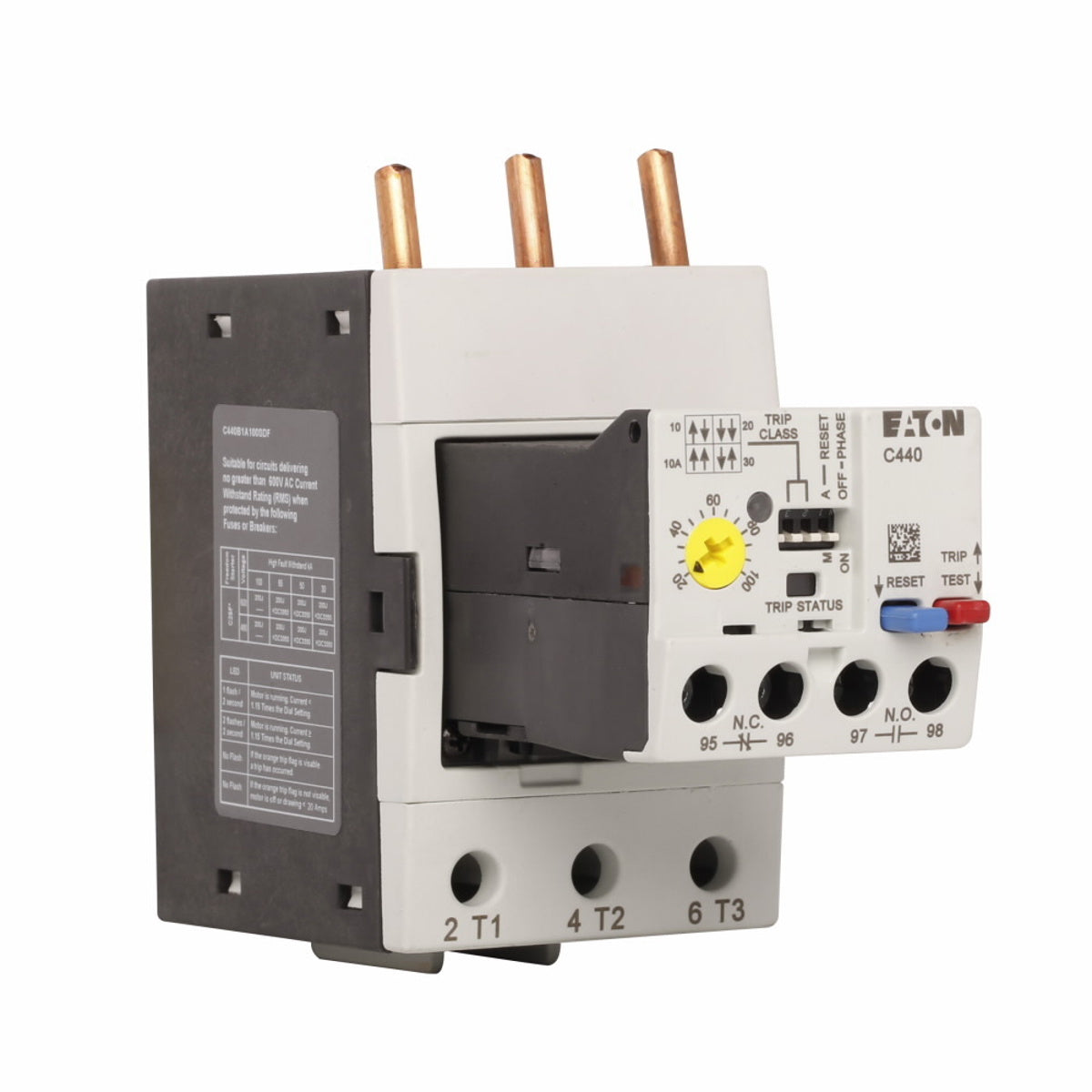

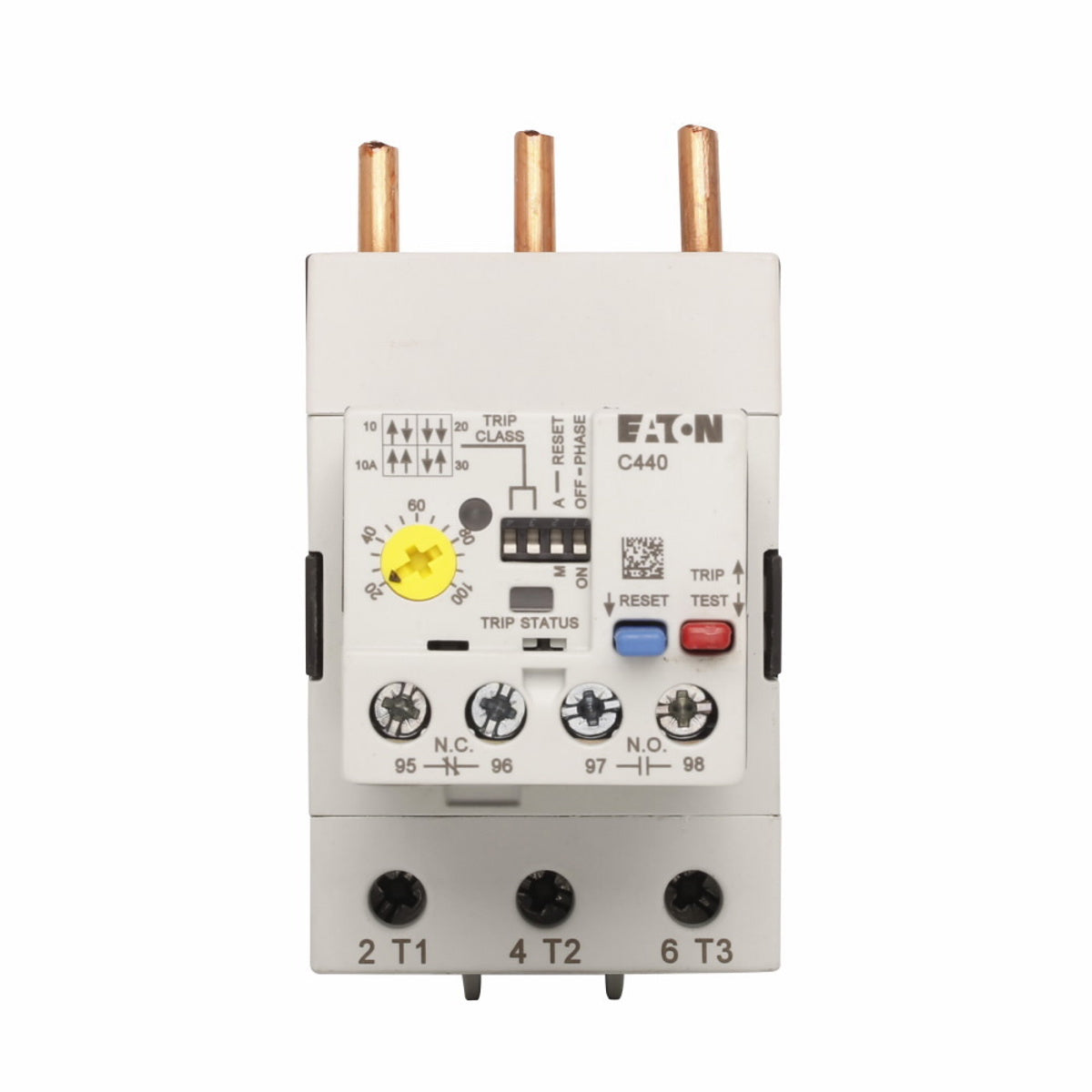

Eaton's C440B1A100SDF is an electronic overload relay designed for definite purpose applications. This product offers a compact design suitable for various commercial and industrial uses. It features selectable trip classes of 10, 20, and 30, and can handle overloads from twenty to one hundred amperes.

• Selectable trip classes: 10, 20, and 30
• Handles overload ranges from twenty to one hundred amperes
• Suitable for commercial and institutional structures

Product Highlights

This electronic overload relay is perfect for power distribution and control in commercial buildings. It is designed for use with Freedom contactors and provides reliable protection for motors.

Product Information

Standard Information

• Brand: Eaton
• MPN: C440B1A100SDF

Technical Specifications

• Catalog Number: C440B1A100SDF
• Manufacturer: Eaton
• Country of Origin: Dominican Republic
• Application: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
• Made in USA: No
• Standard: CSA Certified, UL Listed, CE Marked
• UPC: 786685467313
• Item Type: Overload relay
• Trip Type: Selectable 10A, Class 10, 20, 30
