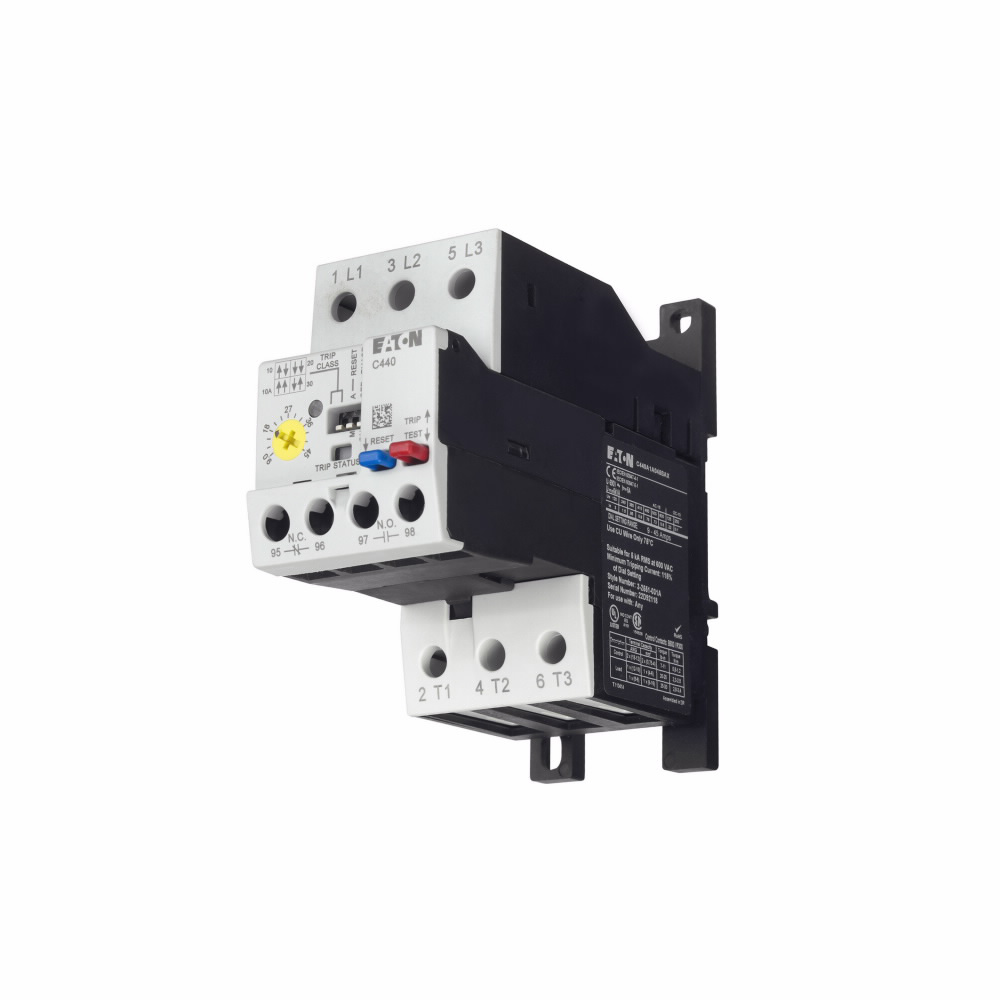

Eaton C440A2A005SAX C440 OL (1-5A) NE

Product Description

The Eaton C440A2A005SAX is an electronic overload relay designed for motor protection. This device provides ground fault sensing and selectable trip types ranging from one to five amps. It is rated for a frame size of 45 millimeters and can be mounted separately. The relay supports thermal modeling through solid-state components, ensuring reliable operation in various applications.

• Ground fault sensing capability
• Selectable trip type ranging from 1-5A
• Separate mount with a frame size of 45mm

Product Highlights

This relay is designed for commercial and institutional buildings, offering reliable motor protection and monitoring for enhanced safety.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: C440A2A005SAX
• Type: Electronic Overload Relay
• Trip Type: Selectable 10 A, Class 10, 20, 30
• Size: Separate Mount
• Height: 3.8 inches
• Length: 4.32 inches
• Weight: 0.87 lb
• Application: Commercial / Institutional Buildings / Structures
