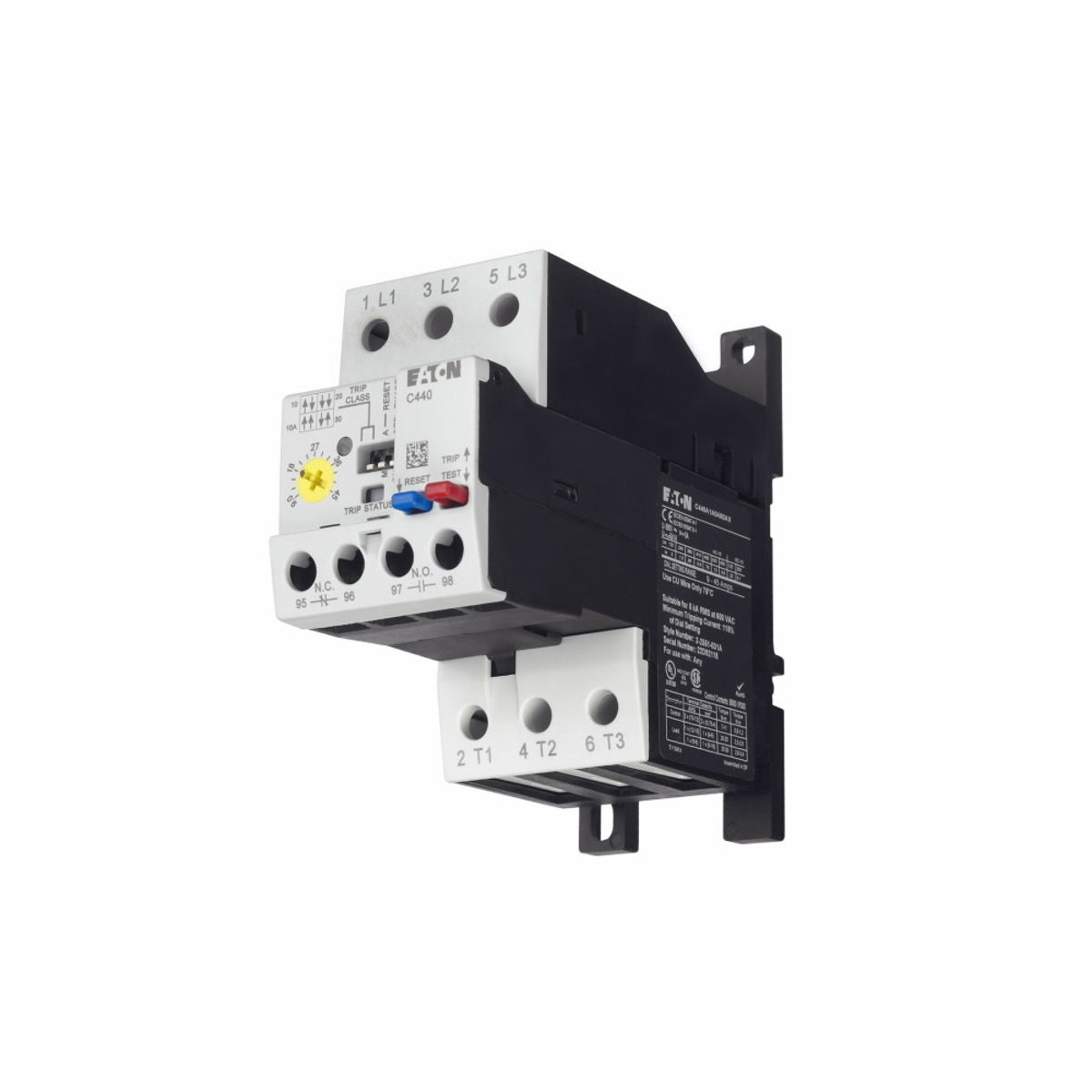

EATON C440A1A1P6SAX Relay OVLD Elek 0.33 to 1.65A 1NO-1NC

Product Description

The EATON C440A1A1P6SAX is an electronic overload relay designed to provide reliable motor protection. It features a current range of zero point thirty-three to one point sixty-five amperes and is suitable for various applications requiring overload protection.

• Flexible mounting options including DIN rail or panel.
• Built-in ground fault protection eliminates the need for additional components.
• Compact design for easy integration into existing setups.

Product Highlights

The EATON C440 overload relay supports standard applications across multiple sectors.

Product Information

Standard Information

• Manufacturer: EATON
• Country of Origin: Dominican Republic

Technical Specifications

• Amperage Rating: 0.33 to 1.65 A
• Contact Form: 1NO-1NC
• Contact Rating: 5 A at 690 VAC
• Frequency Rating: 50/60 Hz
• Display Type: LED
• Enclosure Type: NEMA IP20
• Temperature Rating: -13 to 149 deg F
• Dimensions: 4.32 in L x 1.8 in W x 6.5 in H
• Mounting Type: DIN Rail/Panel
• Series: Freedom C440
