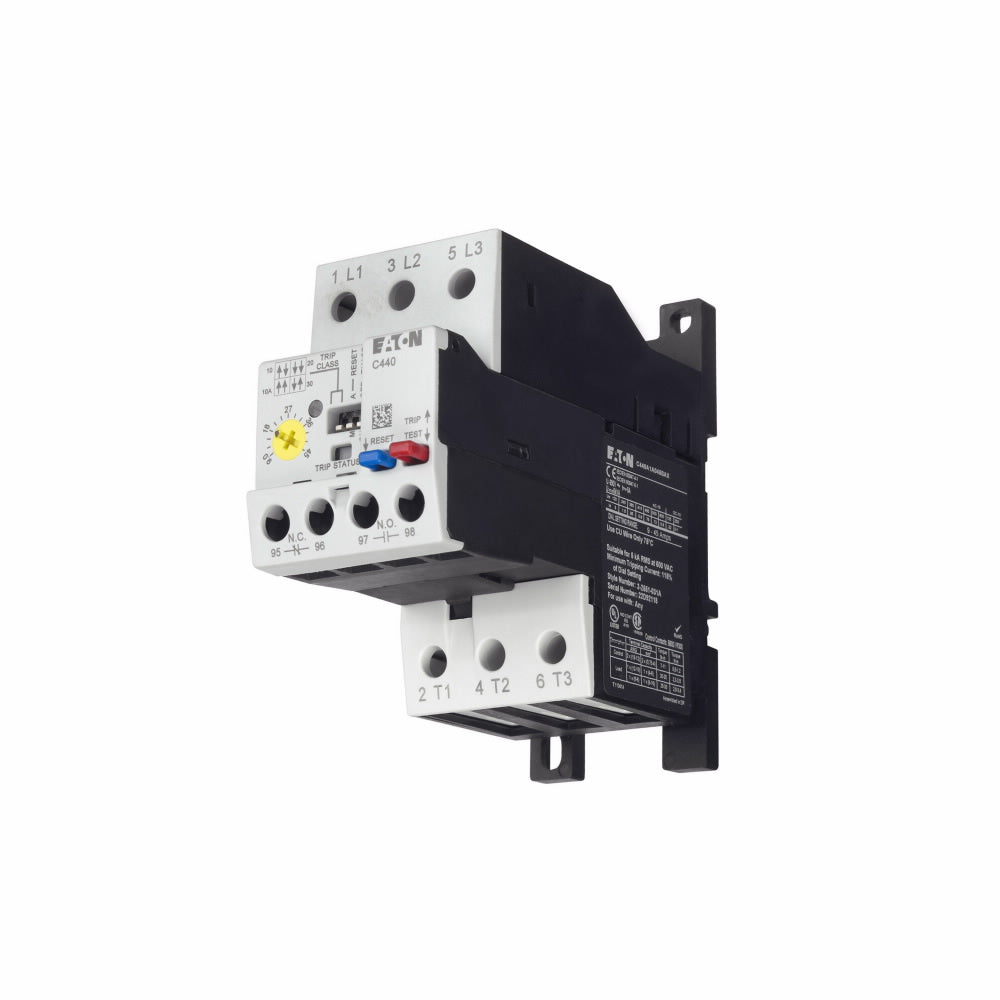

Eaton C440A1A045SF2 Electronic Overload Relay 9-45A Replacement C440A1A045SF2

Product Description

Eaton's model C440A1A045SF2, an electronic overload relay, offers robust motor protection. Specifically designed for motors in commercial and institutional buildings, this relay features a NEMA, Freedom size 2 with adjustable trip class settings.

• Selectable auto/manual reset post-trip functionality
• 45 mm frame for a compact, flexible design
• Direct motor current monitoring for enhanced protection

Product Highlights

Engineered to safeguard motors from overload and short circuits, the Eaton C440 ensures reliable, solid-state motor protection. Notably compatible with Freedom Size 2 contactors, it supports a variety of applications, making it an invaluable tool for industrial automation and motor control.

Product Information

Standard Information

• Brand: Eaton
• MPN: C440A1A045SF2

Technical Specifications

• Frame: 45 mm
• Class: 10, 20, 30 selectable
• Type: Electronic, Standard, Automatic/Manual Reset
• Applications: Industrial machinery, pumps, fans, conveyors, HVAC systems
• Standards: CSA Certified, UL Listed, CE Marked
