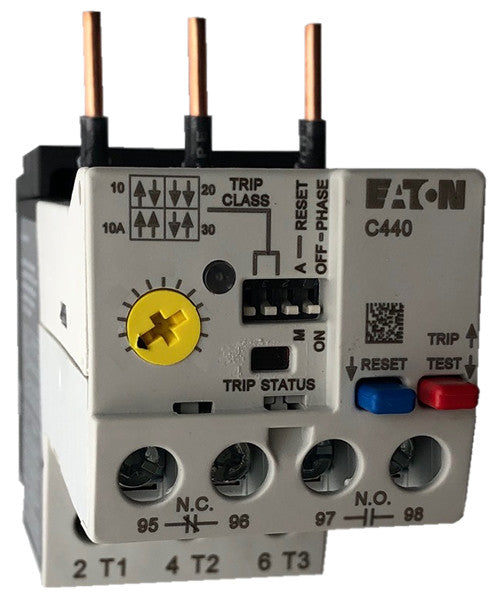

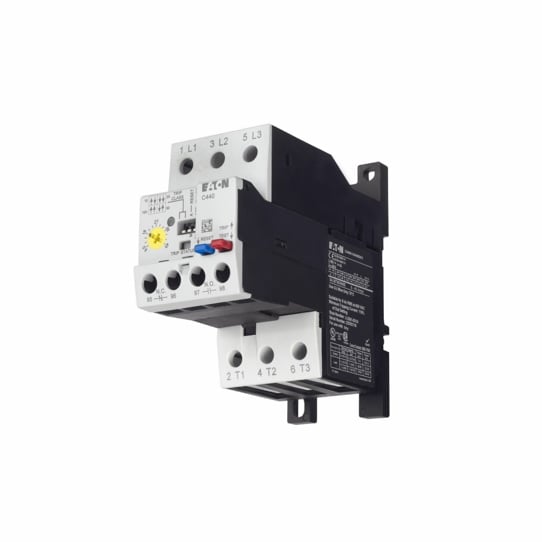

Eaton C440A1A045SF1 Electronic Overload Relay 9-45 A

Product Description

The Eaton C440A1A045SF1 electronic overload relay is a compact and economical product. Designed on a global platform, the C440 covers the power control spectrum, including NEMA, IEC, and DP contactors. The electronic design provides reliable, accurate protection and communications capabilities. It is a flexible choice for applications requiring easy-to-use, reliable protection.

• Monitors motor current in each phase.
• Provides thermal modeling with solid-state components.
• Offers selectable motor protection features.

Product Highlights

The Eaton C440 electronic overload relay delivers enhanced motor protection and communications capabilities in a single compact device.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: C440A1A045SF1
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton C440 electronic overload relay
• Catalog Number: C440A1A045SF1
• UPC: 786685411835
• Product Length/Depth: 4.32 in
• Product Height: 3.8 in
• Product Width: 1.8 in
• Compliances: CE Marked
• Certifications: CSA Certified UL Listed
• Product Type: Electronic overload relay
• Overload range: 9-45A
• Special features: Standard
• Type: Electronic overload relay
• Frame size: 45 mm
• Rated short-time withstand current (Icw): Auto Manual
• Trip type: Selectable 10 A, class 10 ,20, 30
• Size: Freedom Size 1
• AMP Range: 9 to 45 AMPS
• Reset: Manual or Automatic
• Mounts to: AN19DNO or CN15DN3
• Phase loss protection: Yes (can be turned off)
• Auxiliaries: 1 N.O. / 1 N.C.
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: C440A1A045SF1
• Numeric ID: 4388640
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Electronic Overload Relay (EOR)
• Product series / family name: NEMA - C440 series
• Functions: Electronic Overload Protection Relay (EOR)
• Rated current: 9A - 45A (Overload Range)
• Poles: 3 Pole(s)
• Trip unit type: Electronic
• Protection settings: (Thermal Overload) 9A - 45A
• Net Width (mm): 45 mm
• Minimum current: 9 A
• Maximum current: 45 A
• Technical compatibility with: Cont. Freedom Size 1
• Manufacturer product status: Commercialized
• Rated Voltage (AC) - Phase-to-phase: 690 V
• Compliant with standard(s): NEMA ICS1, UL991, IEC60536, IEC60068-2-27, IEC60068-2-6, IEC60947-4-1, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, EN55011, IEEE519
• Protection functions: Thermal overload Class 10A, Thermal overload Class 10, Thermal overload Class 20, Thermal overload Class 30
• GTIN: 00786685411835
• Item Type: Electronic overload relay
• UNSPSC: 39122330
• Display Type: LED
• Mounting Type: Surface
• Contact Rating: 5 A at 690 VAC
• Enclosure Type: IP20/NEMA 1
• Frequency Rating: 50/60
• Temperature Rating: -13 to 149
• Series: C440
• Amperage Rating: 9 to 45
