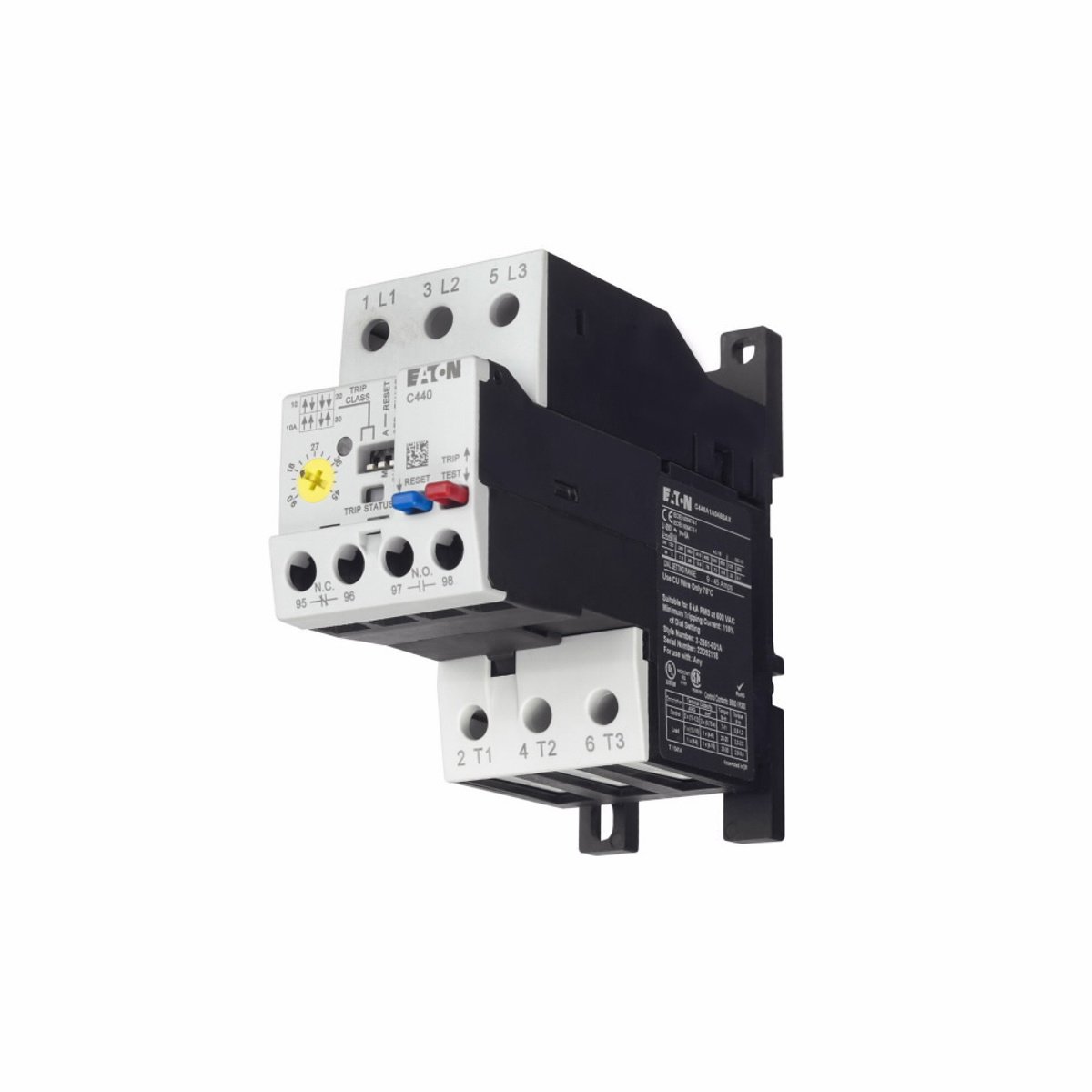

Eaton C440A1A045SAX Relay Ovld Elek 9/45A

Product Description

The Eaton C440A1A045SAX relay is an electronic overload relay designed for motor protection. It operates at an amperage rating of nine to forty-five amps and belongs to the Class 10/20/30 standard series. The device mounts easily on surfaces and is suitable for use in various commercial and institutional applications.

• 45 mm frame size
• Selectable 10 A, Class 10, 20, 30 trip options
• Selectable auto/manual reset options available

Product Highlights

Reliable motor protection with advanced electronic monitoring capabilities.

Product Information

Standard Information

• Manufacturer: Eaton
• Product UPC: 786685412375

Technical Specifications

• Model Number: C440A1A045SAX
• Amperage Rating: 9/45 A
• Dimensions: 4.32 in L x 1.18 in W
• Mounting Type: Surface
• Series: Freedom C440
• Type: Class 10/20/30 Standard
• Applications: For commercial and institutional buildings and structures
• Standards/Approvals: UL Listed, CSA Certified
