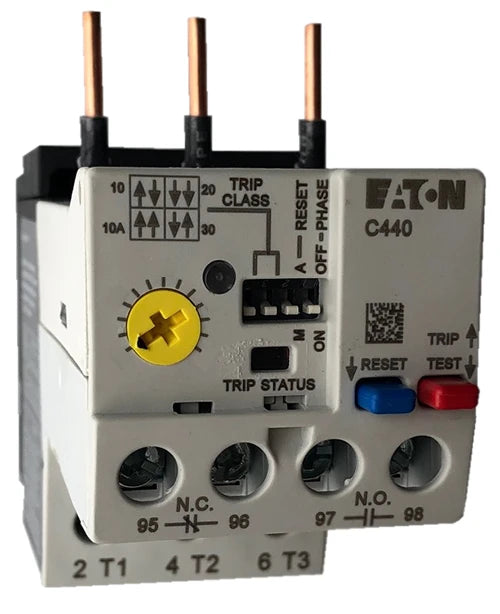

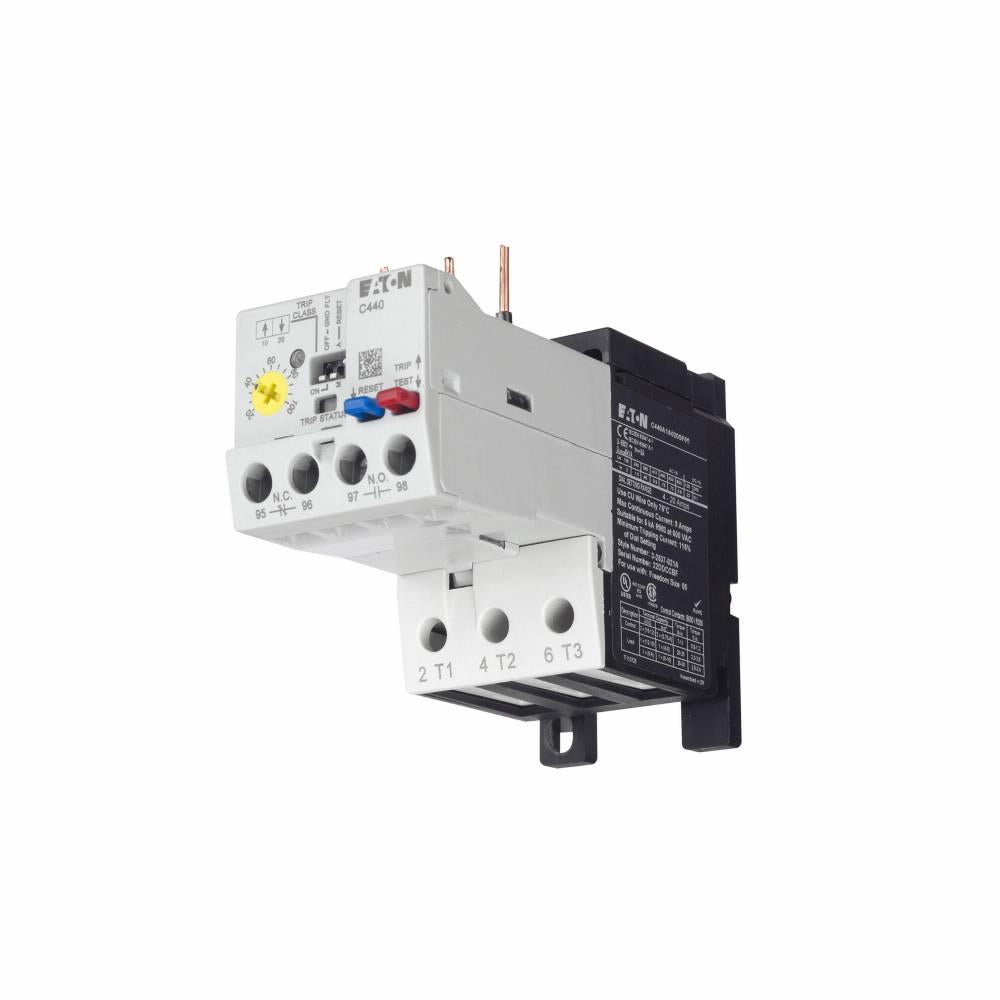

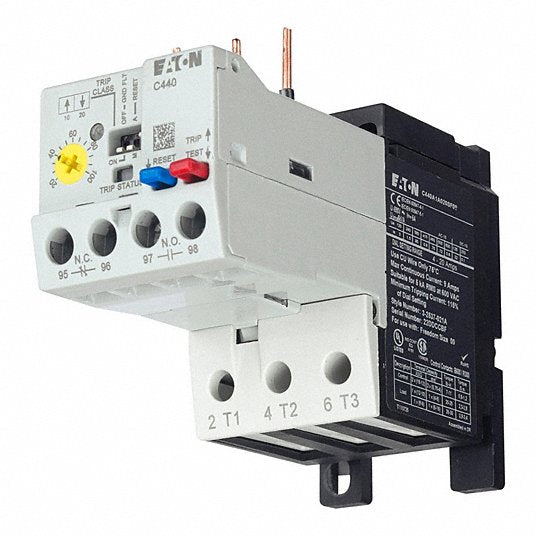

Eaton C440A1A020SF1 Electronic Overload Relay 4-20 A

Product Description

The Eaton C440A1A020SF1 electronic overload relay is adjustable from 4 to 20 AMPS for direct mount to AN19DNO and CN15DN3 starters and contactors. This overload relay has a normally open (N.O.) and normally closed (N.C.) set of auxiliary contacts with manual or automatic reset and selectable class trip ratings from 10 to 30 seconds.

• Eaton C440 electronic overload relay
• C440 Electronic Overload Relay - NEMA
• Freedom Size 1

Product Highlights

Provides reliable and robust motor protection with phase loss protection and wide AMP ranges.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: C440A1A020SF1
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton C440 electronic overload relay
• Catalog Number: C440A1A020SF1
• UPC: 786685411828
• Product Length/Depth: 4.32 in
• Product Height: 6 in
• Product Width: 1.8 in
• Compliances: CE Marked
• Certifications: UL Listed, CSA Certified
• Product Type: Electronic overload relay
• Overload range: 4-20A
• Special features: Standard
• Type: Electronic overload relay
• Frame size: 45 mm
• Rated short-time withstand current (Icw): Manual Auto
• Trip type: Selectable 10 A, class 10 ,20, 30
• Size: Freedom Size 1
• AMP Range: 4 to 20 AMPS
• Reset: Manual or Automatic
• Mounts to: AN19DNO or CN15DN3
• Phase loss protection: Yes (can be turned off)
• Auxiliaries: 1 N.O. / 1 N.C.
• Compatible Contactor Series: C25 Definite Purpose; Freedom
• Relay Style: NEMA
• Overload Protection Type: Electronic
• Number of Poles: 3
• Phase: Three
• Auxiliary Contact Form: 2NO/2NC
• Relay Mounting Style: Direct To Contactor
• NEMA Size: 1
• Minimum Overload Relay Current Setting: 4 A
• Maximum Overload Relay Current Setting: 20 A
• Trip Class: 10/20/30
• Maximum Voltage Rating: 690V AC
• Wire Termination Type: Screw Clamp
• Body Height: 6 in
• Body Width: 1.8 in
• Body Depth: 4.32 in
• IP Rating: IP20
• Standards: CE; CSA; UL Listed
• Mounting Type: Direct
• Amperage Rating: 4/20 A
• Enclosure Type: NEMA 1
• Series: C440 Freedom
• Catalog ID: C-HC440A1A020SF1
• Current Type: AC
• Maximum Amperage: 20 A
• Number in Pack: 1
• Model: Eaton C440A1A020SF1
• Current Rating: 4-20 A
• Manufacturer: Eaton
• Family Series: Eaton Overload Relays
• Description: Eaton C440 electronic overload relay, C440 Electronic Overload Relay - NEMA, Freedom Size 1, 45mm frame, Selectable 10A, Class 10 ,20, 30, Overload 4-20A, Standard
• Poles: 3
• Reset Type: Automatic, Manual
• Approvals: CE, CSA, UL
• Net Weight: 0.8 lbs
• Gross Weight: 0.87 lbs
