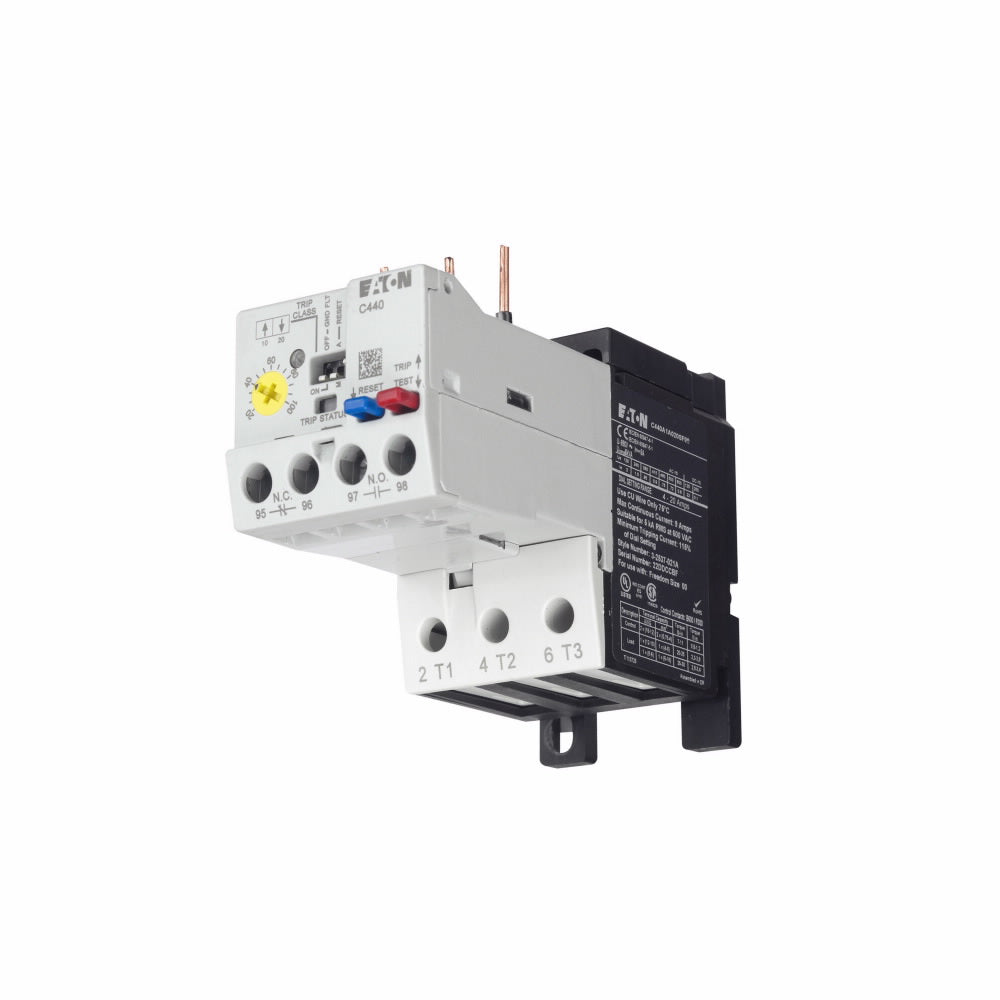

Eaton C440A1A020SF0 Electronic Overload Relay 4-20A Freedom Size 0 Standard

Product Description

The Eaton C440A1A020SF0 is a reliable electronic overload relay designed to offer precise motor protection. This device, part of Eaton's Freedom series, efficiently monitors motor current across phases featuring a 45 mm frame and selectable trip class settings of 10, 20, and 30.

• Adjustable current setting from 4-20 amps.
• Electronic precision for robust motor protection.
• Compatible with NEMA and IEC standards for versatile installation.

Product Highlights

Intended for both commercial and industrial applications, the Eaton C440 electronic relay ensures consistent overload protection and integrates ground fault detection, enhancing system safety and reliability. Its solid-state design guarantees accurate thermal modeling and robust performance in demanding environments.

Product Information

Standard Information

• Frame Size: 45mm
• Control Type: Electronic

Technical Specifications

• Brand: Eaton
• Type: Electronic Overload Relay
• Dimensions: 4.32 inches Length x 1.8 inches Width x 3.8 inches Height
• Weight: 0.87 pounds
• Enclosure: NEMA 0/IP20
• Temperature Rating: -13 to 149 degrees Fahrenheit
• Standards: UL Listed, CSA Certified, CE Marked
