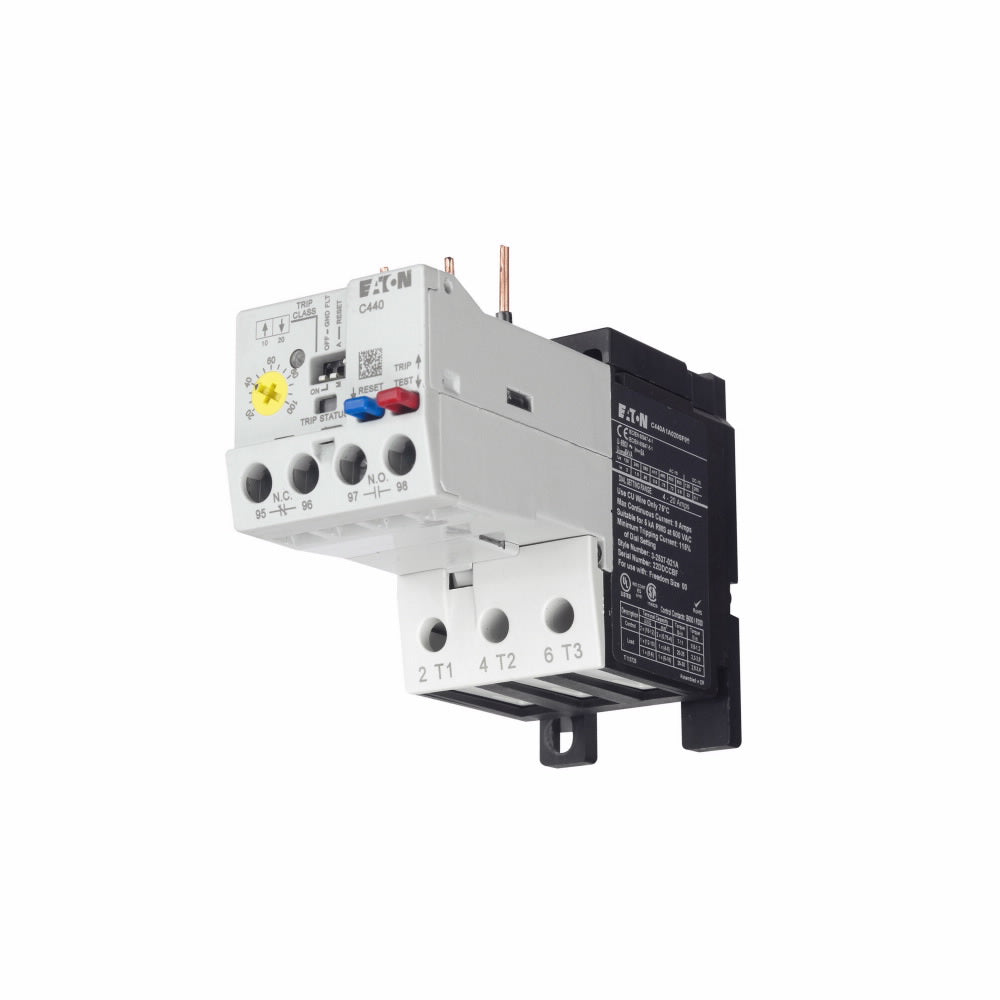

Eaton C440A1A005SF00 C440 1-5A Electronic Overload Relay

Product Description

The Eaton C440A1A005SF00 is an electronic overload relay designed for motor protection. This device from Eaton offers a current rating of 1 to 5 A and fits in a Freedom size 00 with a 45 mm frame. It ensures reliable motor protection in commercial and institutional buildings.

• Current rating: 1-5 A
• Frame size: 45 mm
• Application: Commercial and institutional buildings

Product Highlights

The Eaton C440A1A005SF00 protects motors with advanced electronic components, ensuring precise thermal modeling and adjustable trip settings. It is built to safeguard against overloads and short circuits, providing enhanced protection and remote monitoring capabilities.

Product Information

Standard Information

• Brand: Eaton
• Series: Freedom C440
• Manufacturer: Cutler-Hammer / Eaton
• Country of Origin: Dominican Republic
• Made in USA: No

Technical Specifications

• Catalog Number: C440A1A005SF00
• Type: Electronic overload relay
• Frame: 45 mm
• Size: Freedom size 00
• Width: 1.8 inches
• Height: 3.8 inches
• Length: 4.32 inches
• Weight: 0.87 lb
• Trip Type: Selectable 10 A, Class 10, 20, 30
• UPC: 78668541169
• GTIN: 00786685411699
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• Special Features: Standard
• Standards/Approvals: CSA Certified, UL Listed, CE Marked
