Eaton C361SF264 Type C361 Fusible Variable Depth Disconnect Switch and Operating Mechanism, 200 A, 40 hp, 60 hp, 125 hp, 150 hp

Product Description

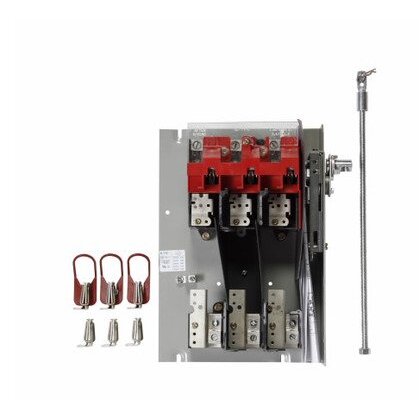

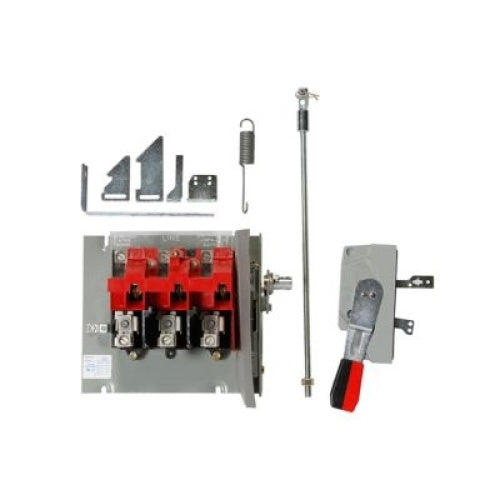

The EATON C361SF264 is a Type C361 fusible variable depth disconnect switch and operating mechanism. This disconnect switch offers a compact, economical, and high-quality choice for switching and isolation. It is suitable for use as motor disconnects and may be used for service entrance or anywhere a local means of disconnect is needed or required.

• Switch and operating mechanism only
• 7 to 16 in D range
• 200 A at 250/600 VAC class H, J and K fuse clip rating

Product Highlights

The EATON C361SF264 disconnect switch provides load break switching and isolation for machine and control circuits with quick-make, quick-break functionality for safety isolation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: C361SF264
• Country of Origin: USA

Technical Specifications

• Phase: 3
• UNSPSC: 39122233
• Mounting Type: Flange/Right Hand
• Terminal Type: Line Lug
• Enclosure Type: NEMA 12
• Voltage Rating: 600 VAC, 250 VDC
• Type: Type C361 Fusible Variable Depth
• Dimensions: 19.9 in L x 13 in W x 9.8 in H
• Horsepower: 40 hp, 60 hp, 125 hp, 150 hp
• Actuator Type: Padlock-Off Handle
• Amperage Rating: 200
• Manufacturer: Eaton
• Enclosure Disconnect Type: Rotary Disconnect Switch
• Component: Rotary Disconnect Switch
• UNSPSC Code: 39120000
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: C361SF264
• Unit of Measure: EA
• Mounting: Right
