Eaton C361NF Rotary Disconnect Main Switch 200A

Product Description

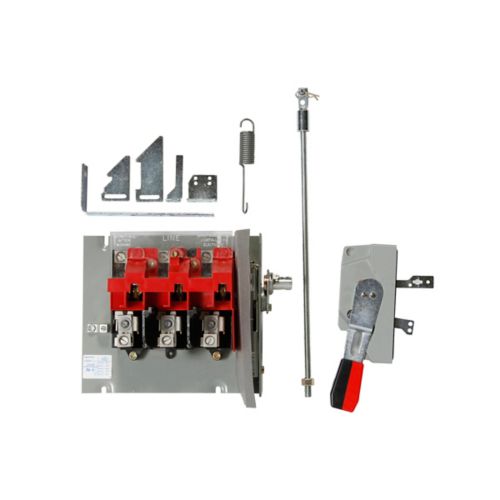

The EATON C361NF rotary disconnect main switch is a switch and operating mechanism only. This non-fusible switch is designed for right-hand mounting. It has a maximum horsepower rating of 40 hp at 208 Vac, 60 hp at 240 Vac, 125 hp at 480 Vac, 150 hp at 600 Vac, and 40 hp at 250 Vdc.

• Switch and operating mechanism only
• 7 to 16 in D range
• 40 hp at 208 VAC, 60 hp at 240 VAC, 125 hp at 480 VAC, 150 hp at 600 VAC, 40 hp at 250 VDC maximum hp rating

Product Highlights

The EATON C361NF rotary disconnect switch is a reliable solution for switching and isolation needs, suitable for use as motor disconnects.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: C361NF

Technical Specifications

• Product Name: Eaton rotary disconnect main switch
• Catalog Number: C361NF
• UPC: 782113566535
• Product Length/Depth: 20.031 in
• Product Height: 9.625 in
• Product Width: 13.063 in
• Certifications: UL Listed CSA Certified
• Product Type: Main switch
• Mounting: Right
• Type: Switch and operating mechanism only
• Wire size: #6 AWG-250 kcmil Cu/Al
• Amperage Rating: 200A
• Depth range: 7-16 in
• Fuse clip rating: Non-fusible
• HP rating - max: 40 hp at 208 Vac, 60 hp at 240 Vac, 125 hp at 480 Vac, 150 hp at 600 Vac, 40 hp at 250 Vdc
• Phase: 3
• UNSPSC: 39122233
• Mounting Type: Flange/Right Hand
• Terminal Type: Line Lug
• Enclosure Type: NEMA 12
• Voltage Rating: 600 VAC, 250 VDC
• Dimensions: 20.031 in L x 13.063 in W x 9.625 in H
• Horsepower: 40 hp, 60 hp, 125 hp, 150 hp
• Actuator Type: Padlock-Off Handle
• Weight: 7.00 lbs
• Category: Disconnect Switch
