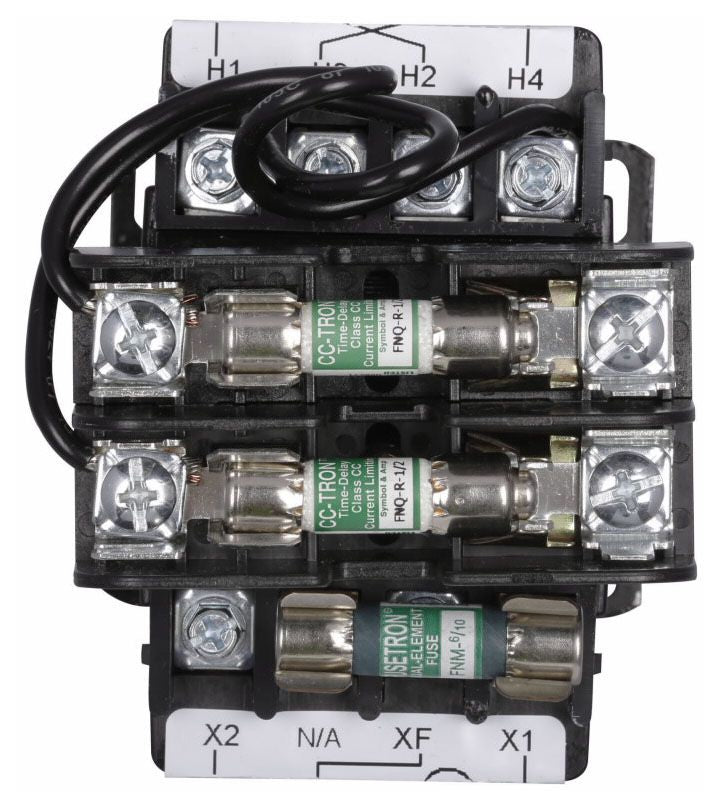

Eaton C341AC Control Transformer

Product Description

The EATON C341AC is a control transformer designed to step down line voltage to a lower control-circuit voltage for use in industrial and commercial electrical systems. Control transformers of this type provide stable, isolated power to relay coils, solenoids, pilot lights, and other control-circuit loads. The C341AC is installed by licensed electricians and industrial maintenance technicians working on machine control panels, motor control centers, and HVAC control circuits where a dedicated, noise-isolated control voltage supply is required.

The C341AC is suited for commercial and industrial applications where reliable control-circuit power isolation is essential. Typical installations include motor starters, contactors, and automated equipment panels. Its compact footprint allows integration into standard control enclosures and panel layouts without requiring excessive cabinet depth.

Key Features

• Steps down line voltage to low control-circuit voltage for relay, solenoid, and pilot light loads
• Provides electrical isolation between primary and secondary circuits for safety and noise reduction
• Compact housing suitable for panel-mount installation in control enclosures
• EATON build quality consistent with industrial-grade control transformer standards

Compatibility

Designed as an OEM-style or replacement control transformer for industrial and commercial electrical control panels requiring a panel-mount step-down transformer.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lockout/tagout all primary voltage sources before installation or servicing. Verify primary and secondary voltage ratings match the application requirements before connecting. Ensure the transformer is properly grounded and secured within a suitable enclosure per local electrical code.

Technical Specifications

• Dimensions (L x W x H): 5.7 inches x 4.3 inches x 3.7 inches
• Weight: 3.2 pounds
• UPC: 78668000050

Standard Information

• Brand: EATON
• Manufacturer Part Number: C341AC
