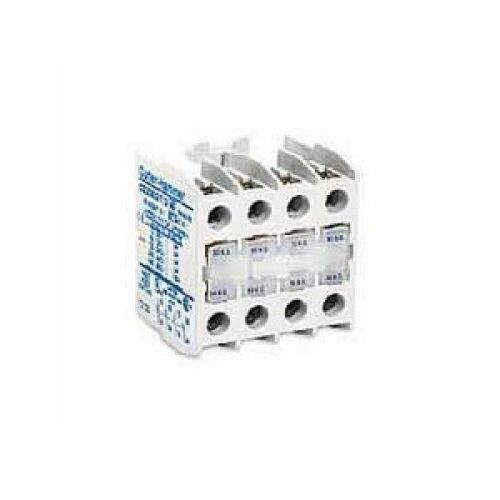

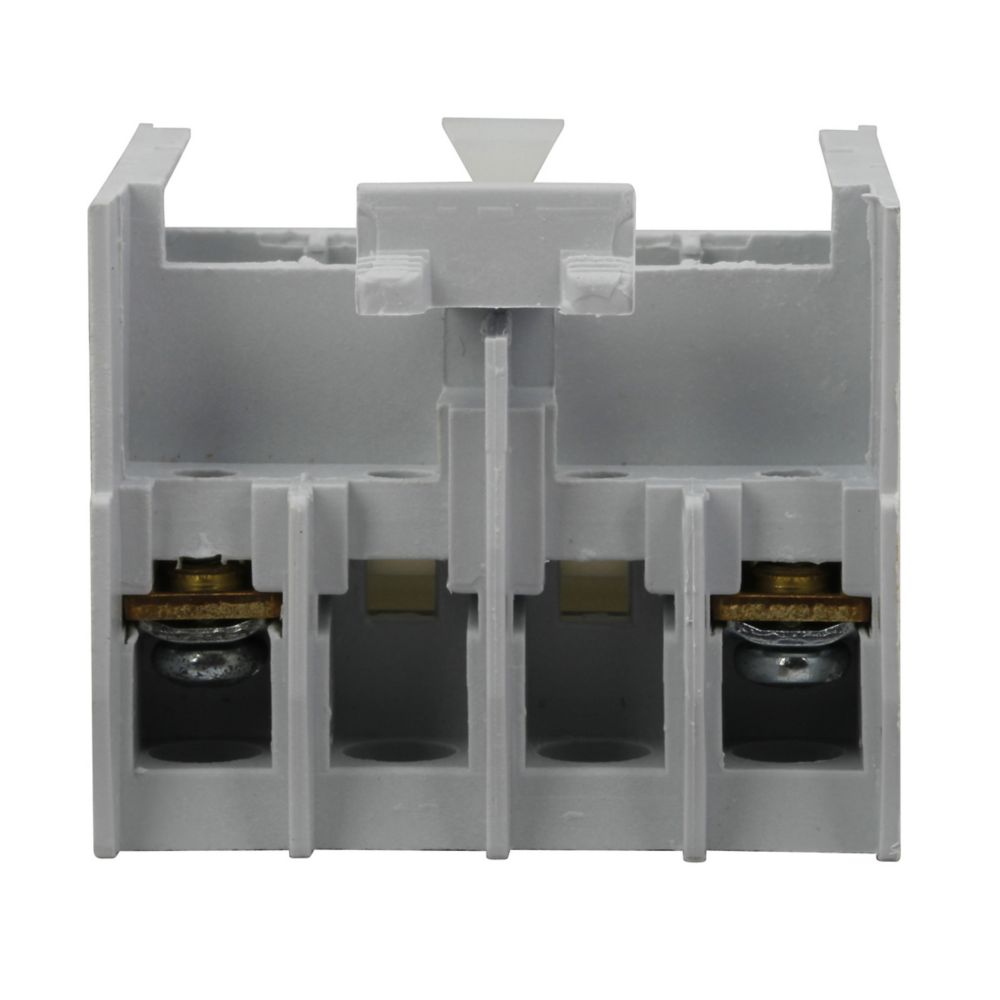

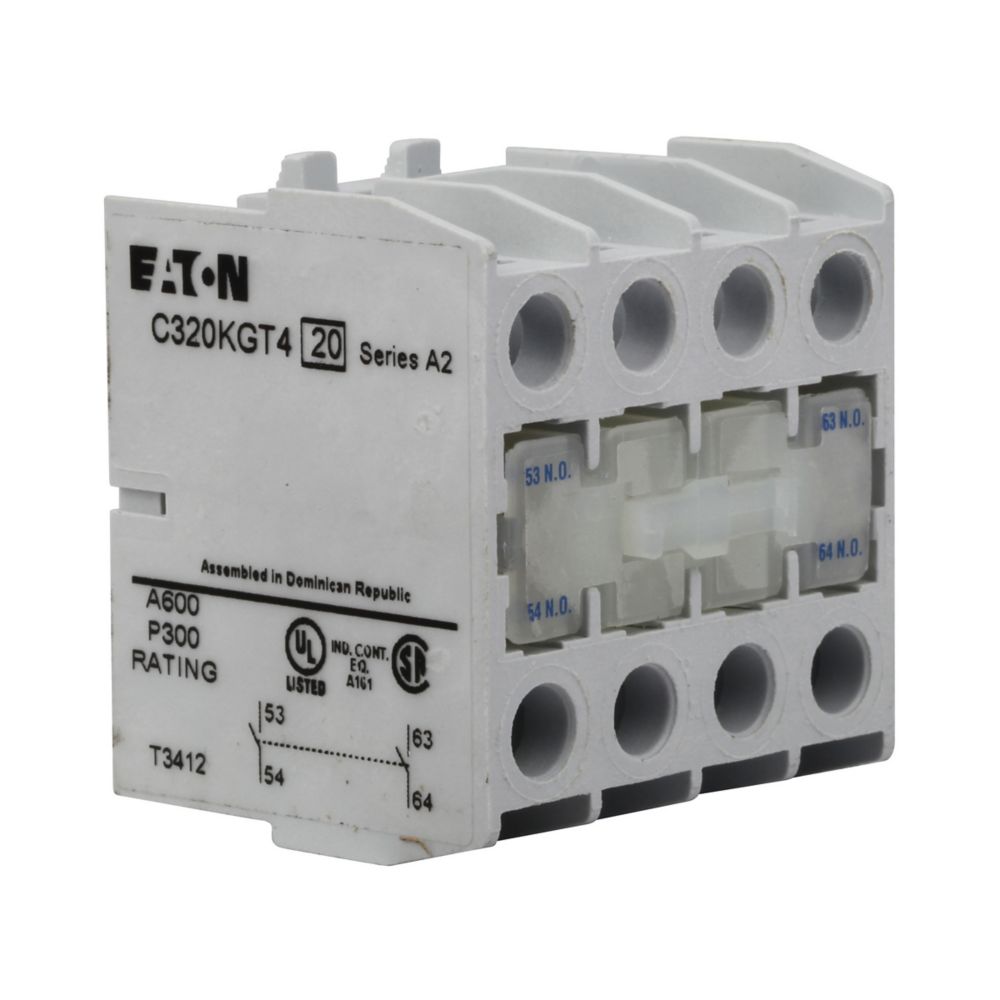

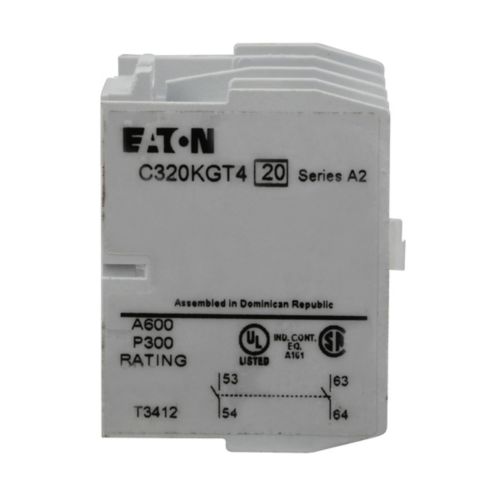

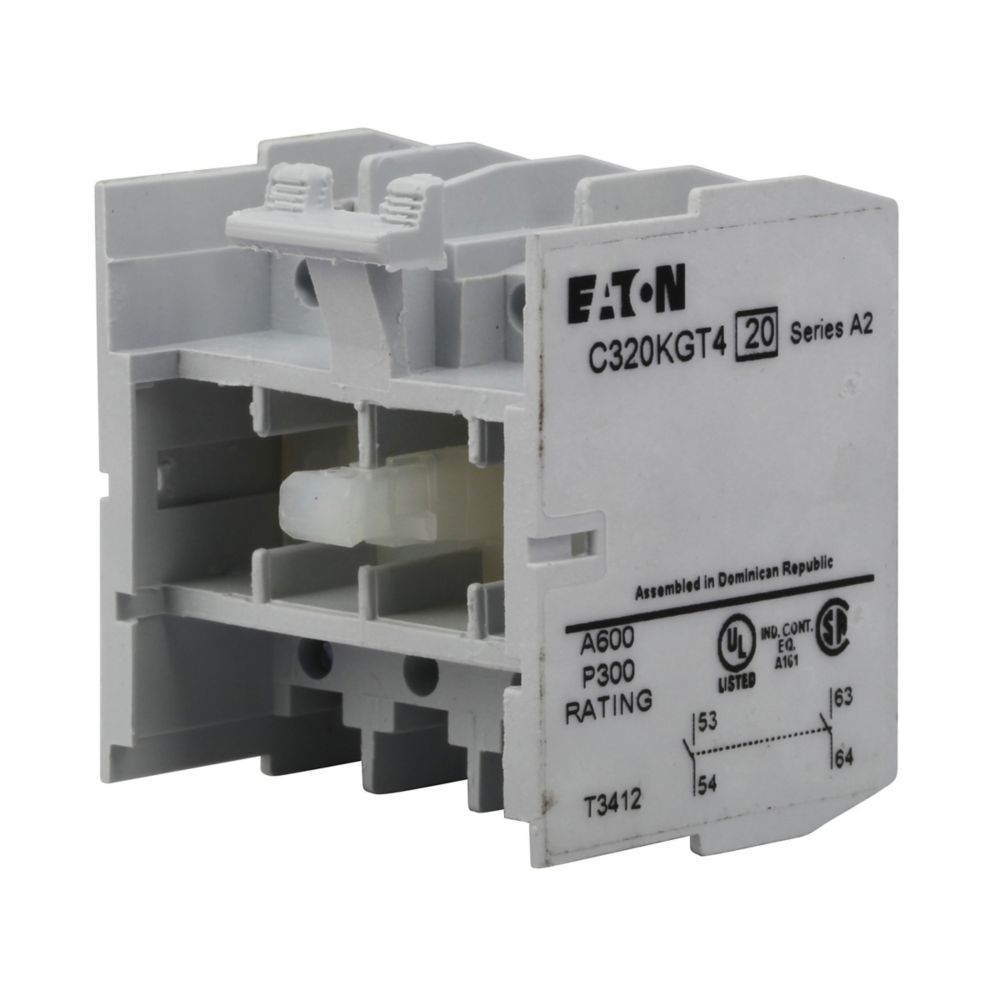

Eaton C320KGT4 Freedom NEMA Auxiliary Contact

Product Description

The Eaton C320KGT4 is a Freedom NEMA auxiliary contact used on starters and contactors. The C320KGT4 has a top mounting type and is used for size 00-2 AN16 contactors and starters. It has a current rating of 10 Amps and a voltage rating of 600VAC.

• Used on Starters and Contactors
• Top Mounting method
• Current Rating of 10 Amps

Product Highlights

The Eaton C320KGT4 auxiliary contact is top mounted and used with NEMA size 00-2 & IEC Size A-K.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: C320KGT4
• Country of Origin: China

Technical Specifications

• Product Name: Eaton Freedom NEMA auxiliary contact
• Catalog Number: C320KGT4
• UPC: 782113413594
• Product Length/Depth: 2 in
• Product Height: 2.2 in
• Product Width: 1.9 in
• Certifications: cUL Listed
• Catalog Notes: NCI = Normally Closed early opening designed for use in reversing applications. EC = Early Closing. LO = Late Opening.
• Product Type: Accessory
• Used with: Used on Starters and Contactors
• Mounting method: Top
• Contact configuration: 2 NO 3NC
• Series: Freedom
• Manufacturer: Eaton
• Family: Freedom Series
• Category: Contactors
• Current Rating: 10 Amps
• Connector Type: Screw
• Number Of Contacts: 2
• Voltage: 600VAC
• Number Of Poles: 2
• Specification Met: IEC, NEMA
• type_updatedforcompatibility: Auxiliary Contact
• net_weight: 0.1 lb
• gross_weight: 0.15 lb
• Amperage: 10
• Mounting Type: Top
• Approval: cUL
• Nema Rating: 1
• For Use With: Size 00-2 AN16 Contactors and Starters
• Fusibility: Fusible
• Nema Size: 00-2
