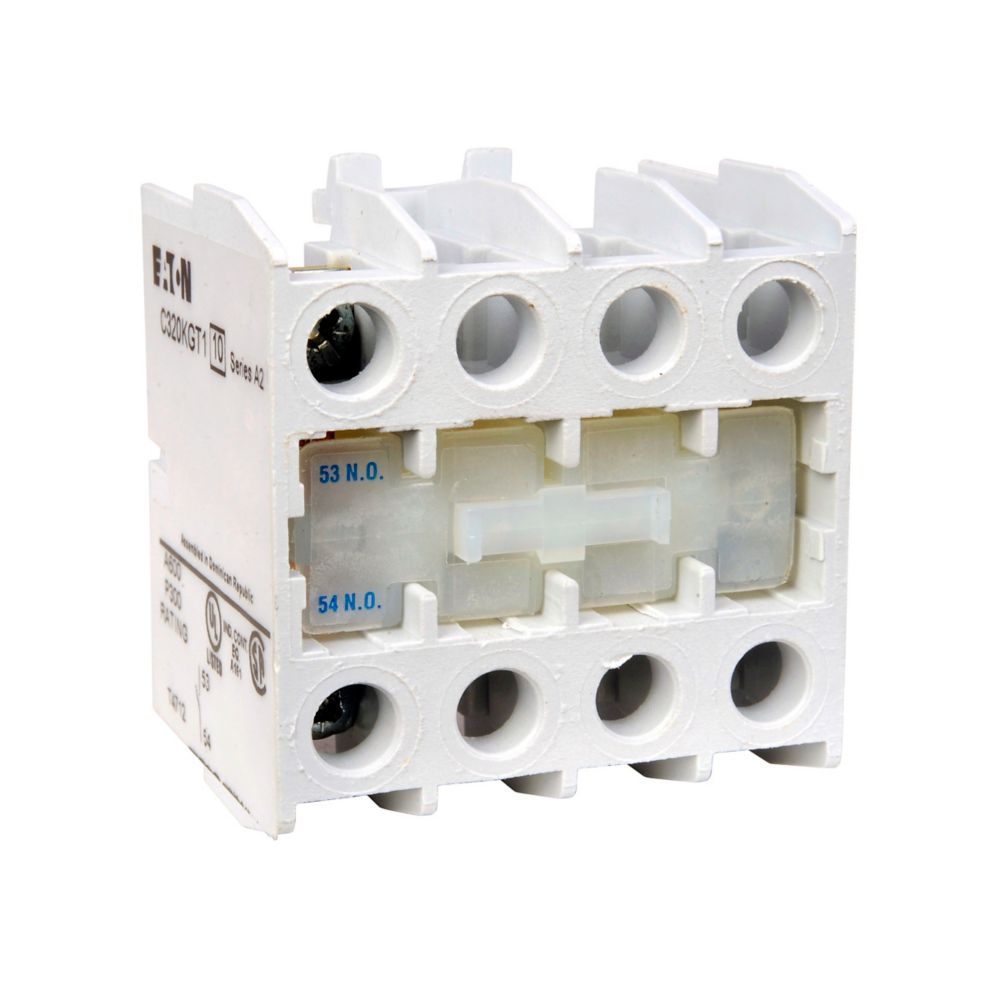

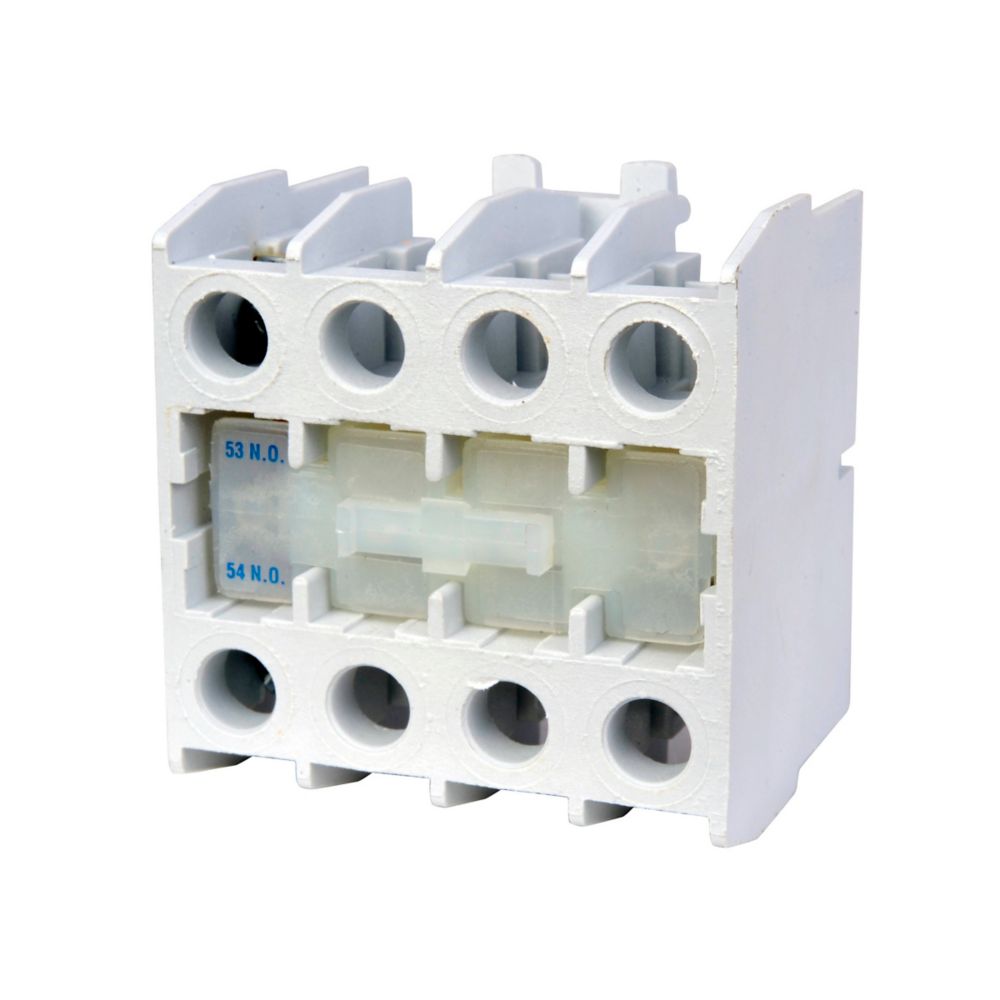

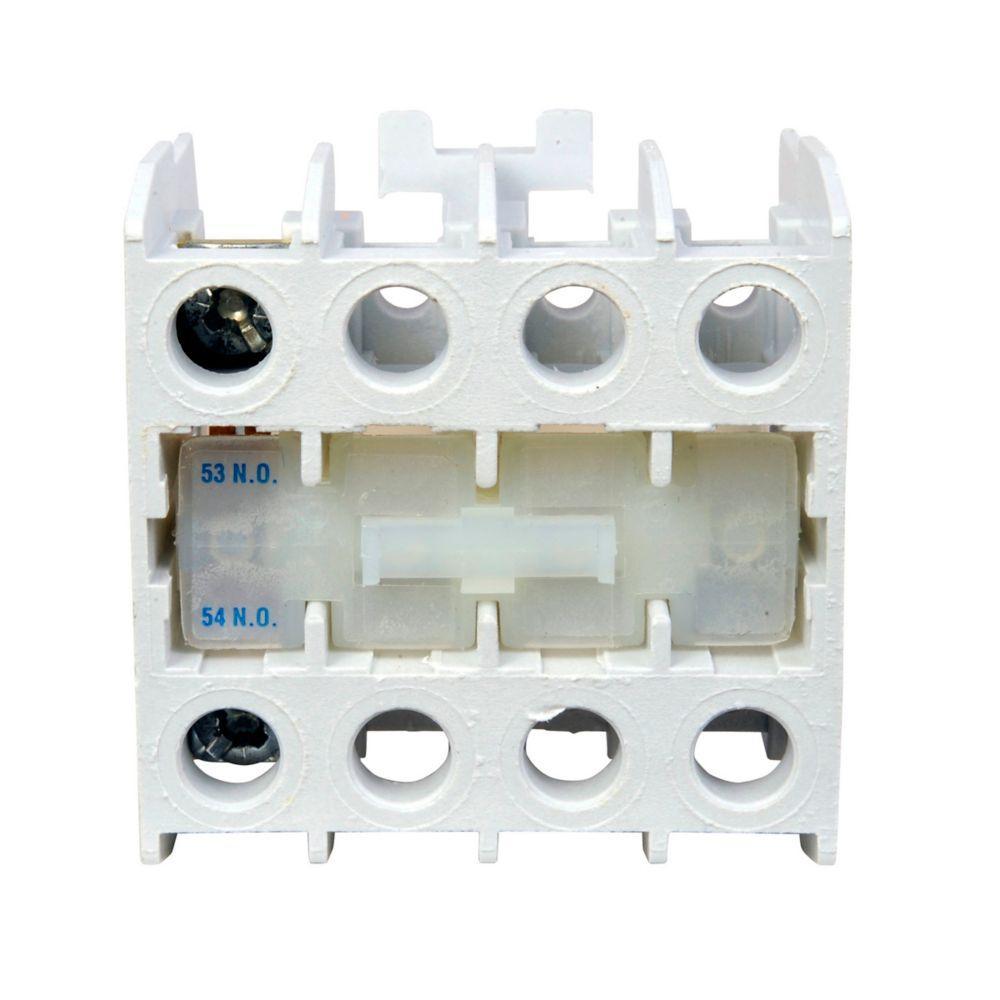

Eaton C320KGT10 Auxiliary Contact

Product Description

The Eaton C320KGT10 is an auxiliary contact with a current rating of 10 Amps and a voltage rating of 600VAC, 250/600VDC. The auxiliary contact features a compact, space-saving design and top mounting. It is used for contactors and starters.

• 2NO-1NC contact configuration
• Used on Starter and Contactors
• Top mounting

Product Highlights

The Eaton C320KGT10 auxiliary contact is designed for use with contactors and starters. It features a 2NO 1NC contact configuration and top mounting.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: C320KGT10

Technical Specifications

• Dimensions: 1.8 x 1.9 x 2.2 in
• Mounting Type: Top
• Size: SZ 0 to 2
• Suitable For Use With: Contactor and Starter
• Type: C320
• Voltage Rating: 600 VAC
• Amperage Rating: 10 A
• Number of Contacts: 3
• Material: Silver Cadmium Alloy
• Applications: Electrical Assemblies, Panels and EOEMs
• Standard: Class E Requirements For Channel,Component Level Performance Per TIA,EIA-568-B.2-1 And ISO,Extreme 6+ System Components Meet Or Exceed The Category 6,IEC 11801-B. Components Certified Per UL And CUL Listed, NOM And ACA Requirements
• Brand: Eaton
• 12-Digit UPC: 782113413655
• Product UPC: 78211341365
• Weight: 0.1 lb
• Height: 2.2 Inch
• Length: 1.8 Inch
• Product Name: Eaton Freedom NEMA auxiliary contact
• Catalog Number: C320KGT10
• UPC: 782113413655
• Product Length/Depth: 1.8 in
• Product Height: 2.2 in
• Product Width: 1.9 in
• Product Weight: 0.1 lb
• Warranty: 1 year
• Certifications: cUL Listed
• Catalog Notes: NCI = Normally Closed early opening designed for use in reversing applications. EC = Early Closing. LO = Late Opening.
• Product Type: Accessory
• Used with: Used on Starters and Contactors
• Mounting method: Top
• Contact configuration: 2 NO, 1 NC
• Series: Freedom
• Part Number: C320KGT10
• Manufacturer: Crouse-Hinds
• Family: Freedom Series
• Category: Contactors
• Duty Rating: Heavy Duty
• Dimensions (HxWxD): 1.8 in x 2.2 in x 1.9 in
• Amperage: 10
• Voltage: 600VAC, 250/600VDC
• Approval: CUL
• For Use With: Contactors and Starters
• Mpn: C320KGT10
• Condition: New – Open box
