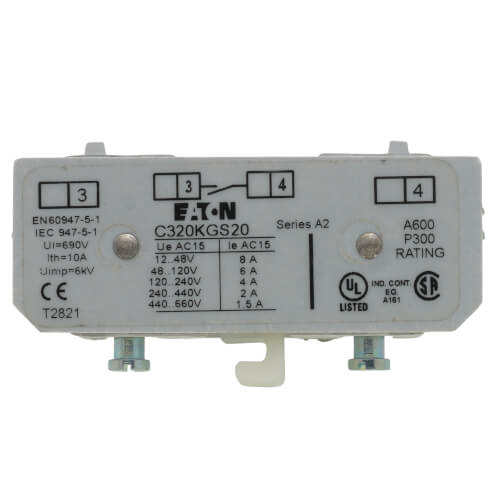

Eaton C320KGS20 Side Mount 1NO 600 VAC 10 Amp 250 VDC Auxiliary Contact

Product Description

The Eaton C320KGS20 is a side-mounted 1NO (Normally Open) auxiliary contact designed for integration with motor starters and contactors, maximizing operational efficiency and reliability in electrical assemblies and panels.

• Compatible with NEMA Size 3-5 and IEC Size L-S.
• Optimal for side mounting on DIN rails or directly beside the contactor.
• Rated for 10 Amps at 600 VAC and 0.55 Amps at 250 VDC.

Product Highlights

This robust auxiliary contact is constructed to ensure long-lasting durability and high performance in challenging industrial environments.

Product Information

Standard Information

• Country of Origin: Dominican Republic
• Certification: UL Listed, CSA Certified

Technical Specifications

• Brand: Eaton
• MPN: C320KGS20
• Mounting Type: Side/DIN Rail
• Contact Configuration: 1 NO
• Contact Rating: 10 A at 600 VAC
• Voltage: 600 VAC
• Amperage: 10 Amp
• Height: 1.1 inches
• Length: 4 inches
• Weight: 0.1 lb
