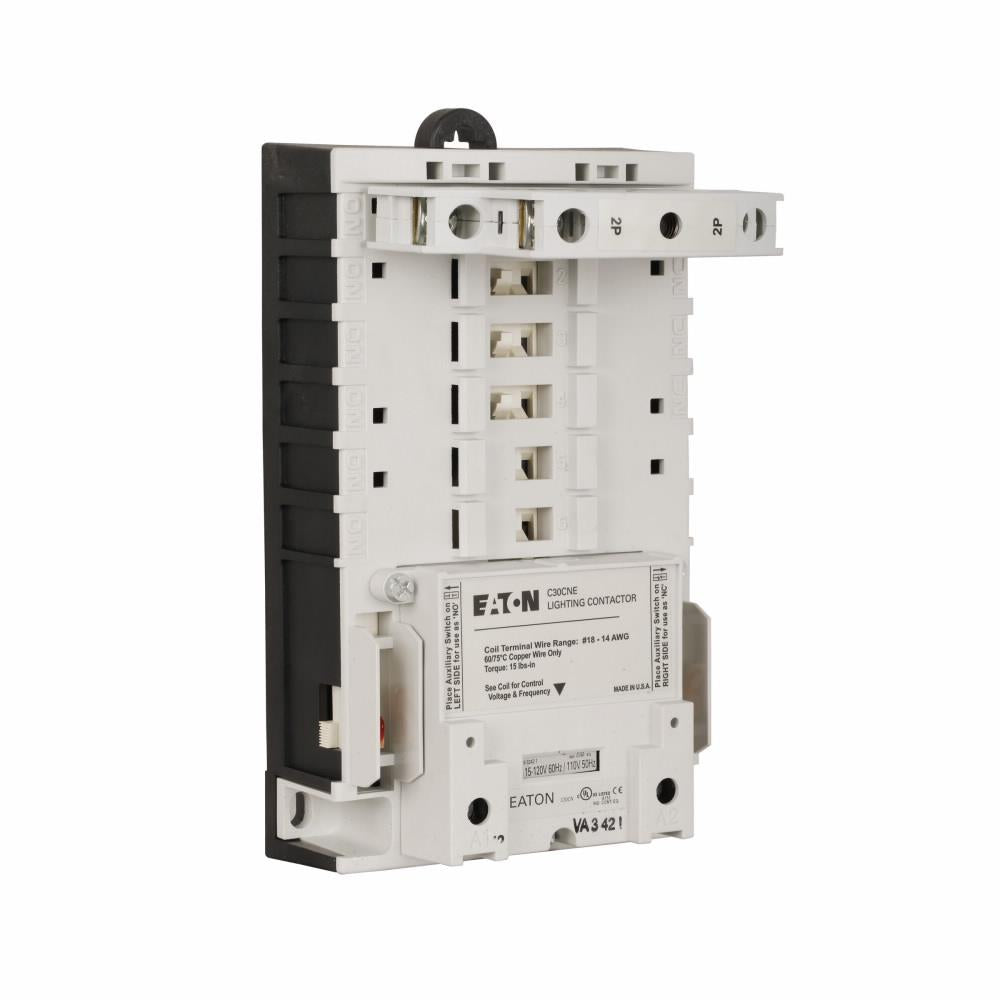

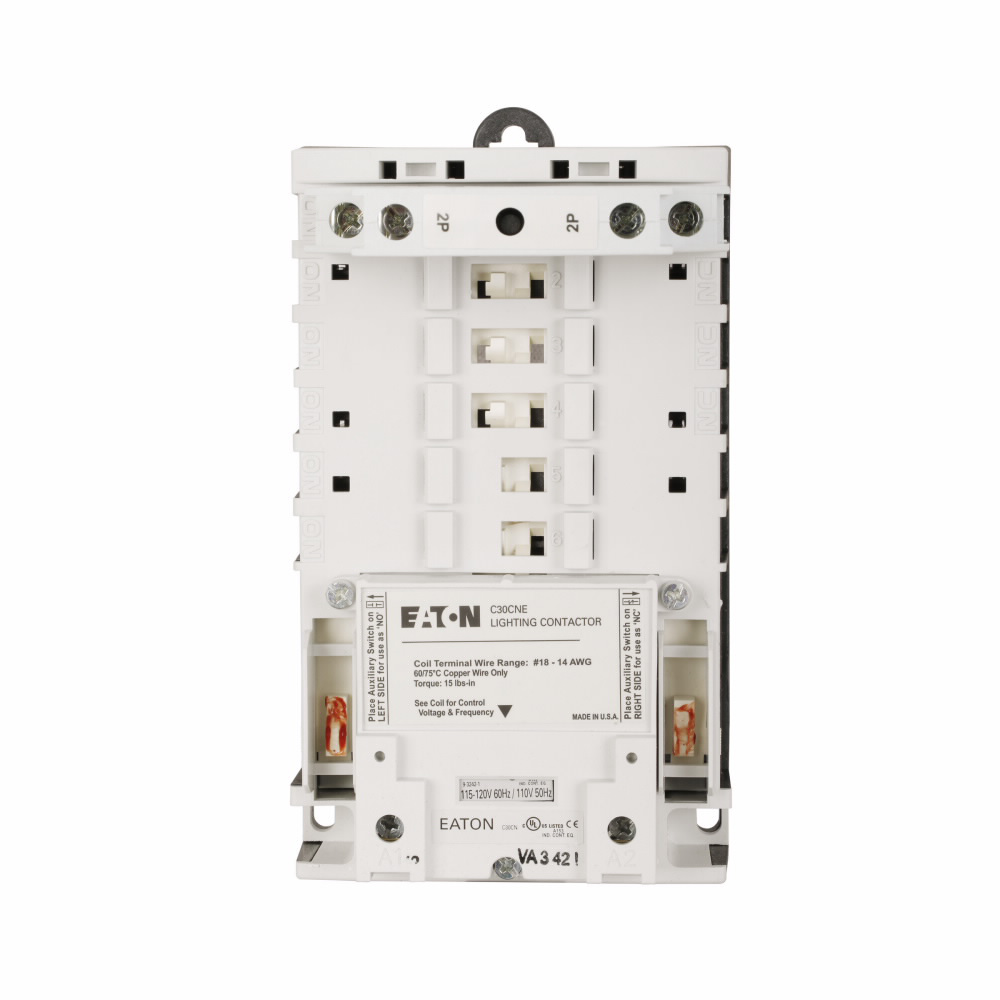

EATON C30CNE40A0 CONTACTOR LTG ELECTRICALLY HELD 5NO 4

Product Description

The EATON C30CNE40A0 is an electrically held lighting contactor designed for effective control of various lighting loads. This product features a four-pole configuration and operates at a coil voltage of one hundred ten to one hundred fifteen volts AC. Ideal for both commercial and institutional settings, the contactor is built to handle tungsten and ballast lamp loads efficiently.

• Rated for 30 amps with five normally open (NO) contacts.
• Supports both local and remote switching operations.
• Designed to avoid contact welding during large inrush current.

Product Highlights

This contactor ensures reliable switching and eliminates coil losses by removing the coil from the circuit once latched.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: C30CNE40A0

Technical Specifications

• Contact Rating: 30 A
• Number of Poles: 4
• Contact Configuration: 5NO
• Coil Voltage: 110/115 to 120 VAC
• Dimensions: 7.39 in L x 4.18 in W x 3.86 in H
• Enclosure Type: Open
• Frequency Rating: 50/60 Hz
• Manufacturer: EATON
