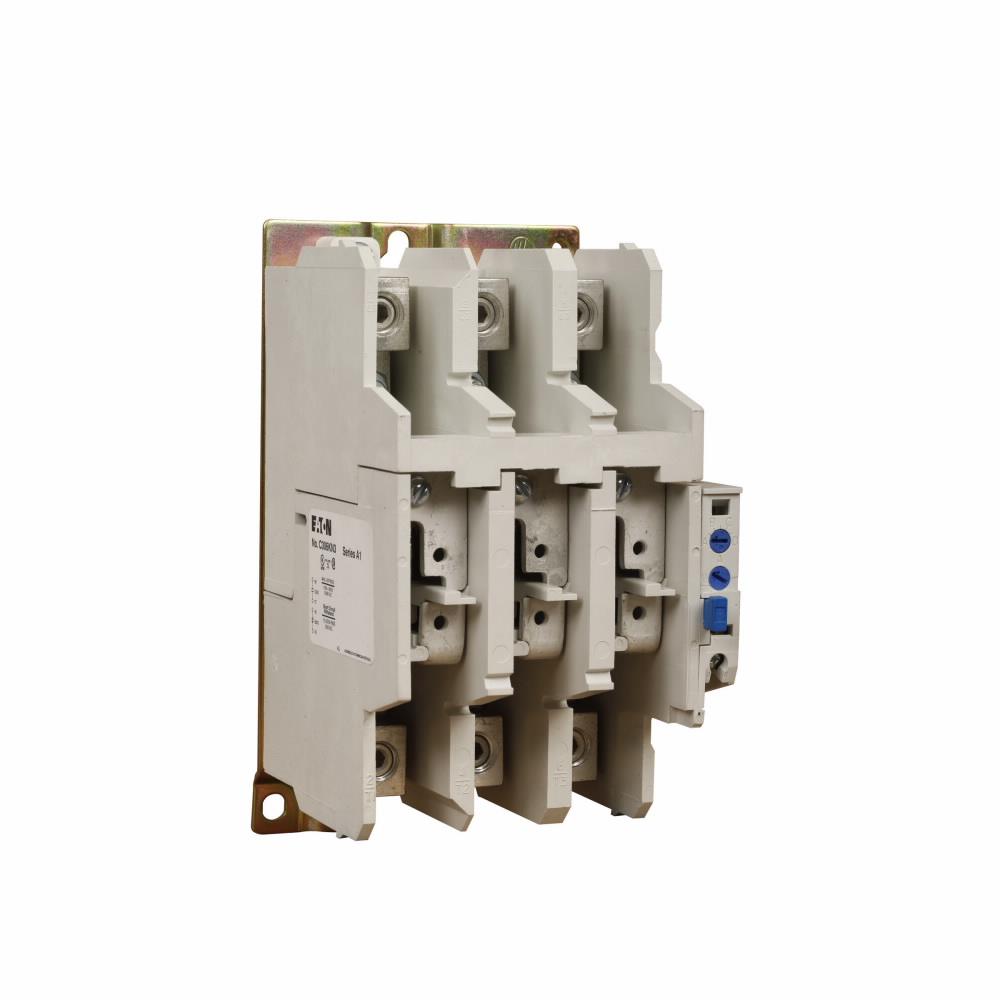

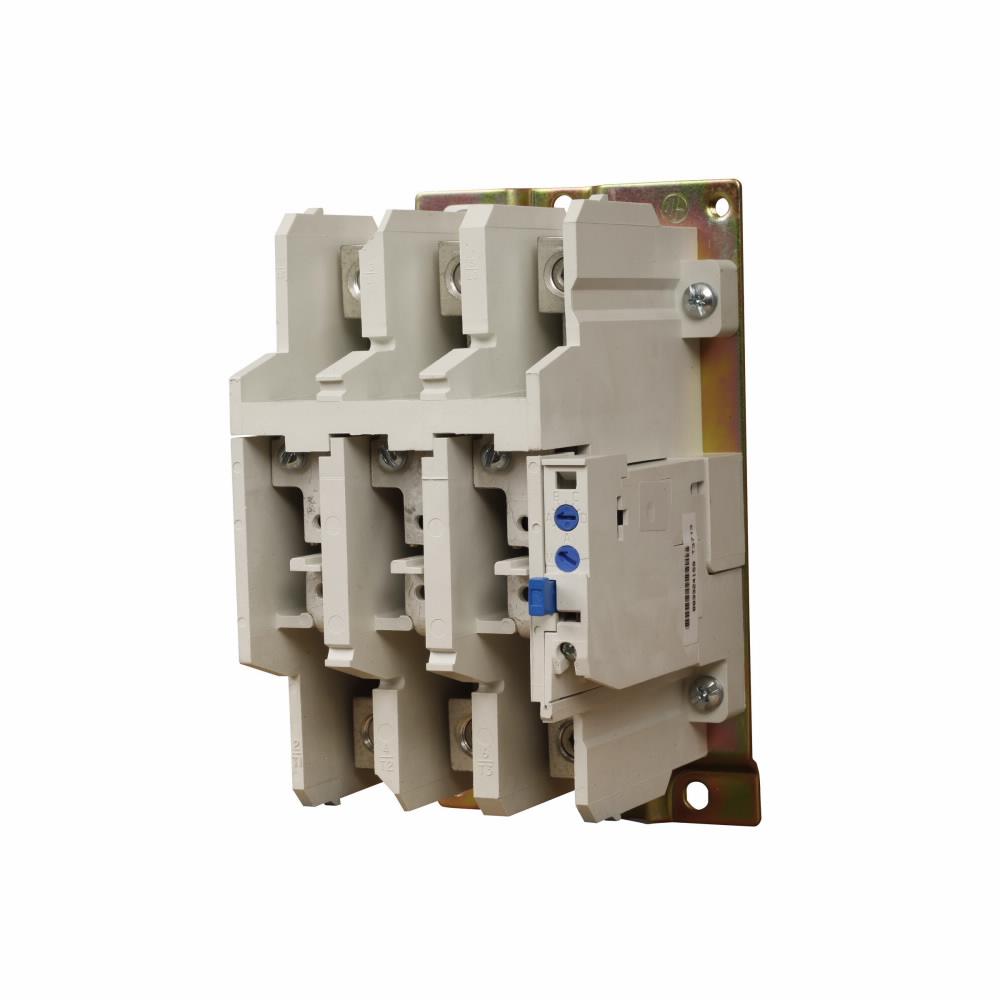

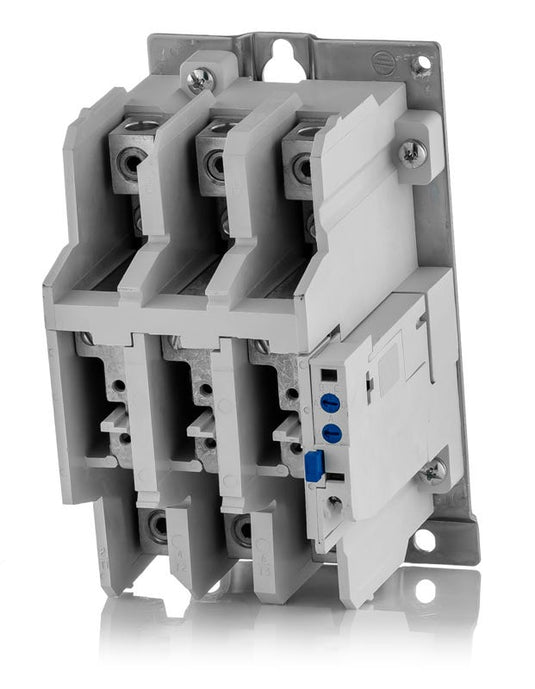

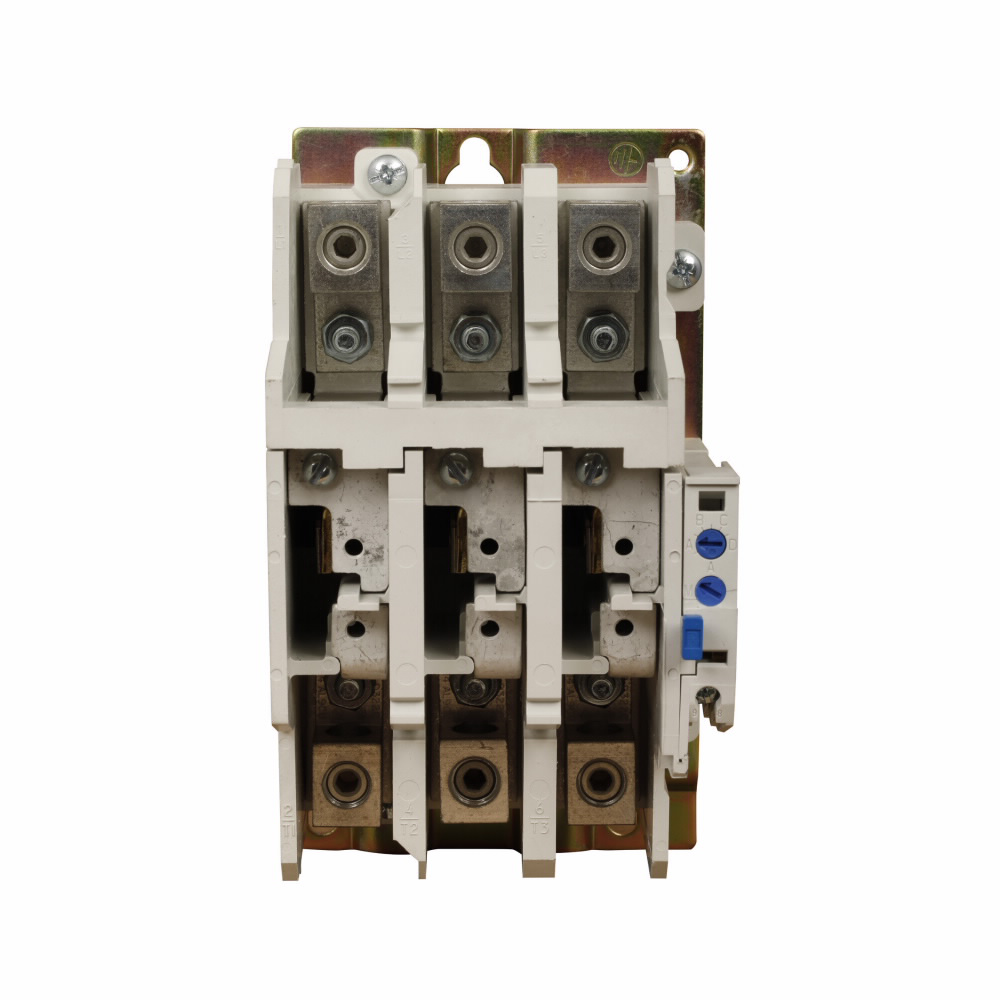

Eaton C306KN3 Electrical 600 VAC 105 Amp 3-Pole 1NO 1NC Panel Mount Line/Load Lug Terminal Thermal Bi-Metallic Overload Relay

Product Description

The Eaton C306KN3 is a Freedom NEMA overload relay with an amperage of 100-149A. This three-pole relay is NEMA Size 3 and IEC Size L-M, designed for panel mounting. It features line/load lug terminals and provides thermal bi-metallic overload protection, suitable for use with CE or CN non-reversing and reversing contactors.

• Bi-metallic, ambient compensated operated
• Overload trip indication
• Shrouded or fingerproof terminals to reduce possibility of electrical shock
• Heaters required

Product Highlights

The Eaton C306KN3 overload relay provides reliable overload protection with its bi-metallic design and convenient features like load lugs and trip indication.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: C306KN3
• Country of Origin: United States

Technical Specifications

• Type: Freedom NEMA
• Brand: Eaton
• Frame: NEMA Size 3, IEC Size L-M
• Height: 5.2 Inch
• Length: 8.7 Inch
• Amperage: 100-149 Amp
• Standard: CSA,UL
• Trip Type: Thermal
• Applications: Ind Facilities & Factories - Facility - Other
• Mounting Type: Panel
• Number of Poles: 3 Pole
• Contact Rating: 2.5/5 A at 600 VAC
• Enclosure Type: NEMA 3
• Series: Freedom C306
• Terminal Type: Line/Load Lug
• Amperage Rating: 100/149 A
• Contact Form: 1NO-1NC
• Coil Voltage: 600 VAC
• Design: NEMA, IEC
• Special features: Heaters required
• Voltage: 600VAC
• Poles: 3
• Frame Type: C306
• For Use With: Contactors
• Nema Size: 3
• Current Rating: 100-149 A
• Product Width: 5.8 in
