Product Description

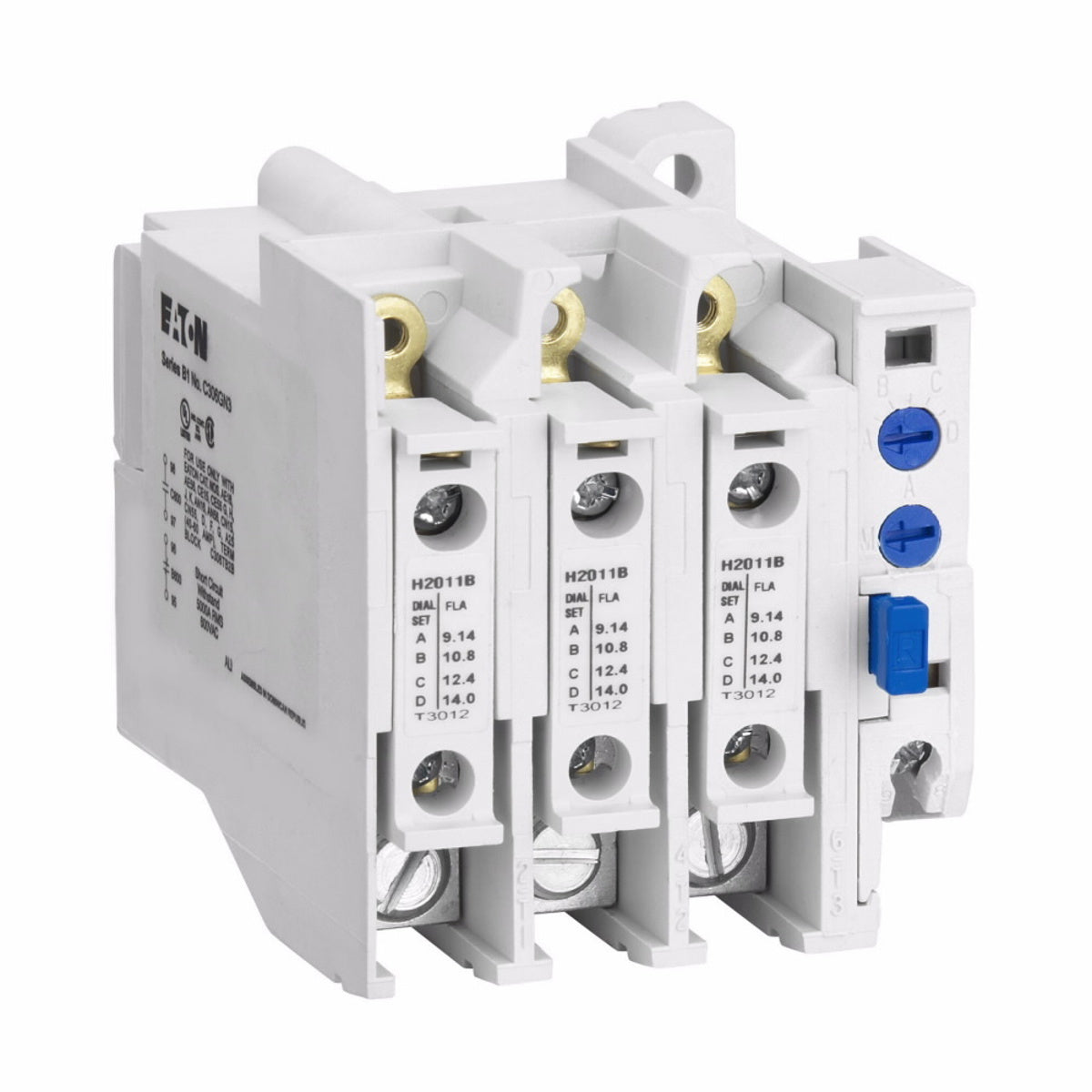

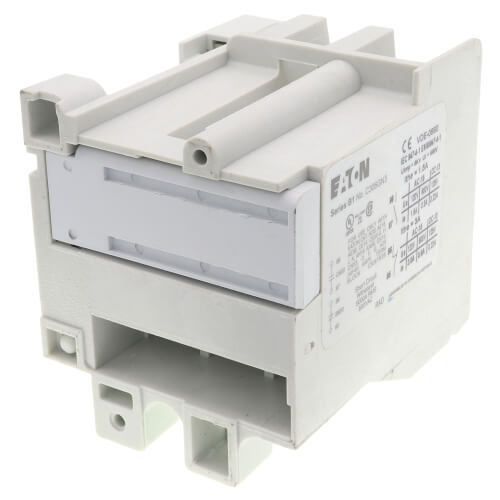

The EATON C306GN3B is a thermal overload relay designed for industrial applications with a current rating of sixty to seventy-nine amperes. This relay features three poles and can be mounted on a panel. It is equipped with standard solid copper terminals. The dimensions of this unit are four and one-half inches in length, four and one-half inches in width, and five inches in height.
- Designed for NEMA and IEC applications
- Suitable for use with various contactors
- Built for durability and reliability in demanding environments
Product Highlights

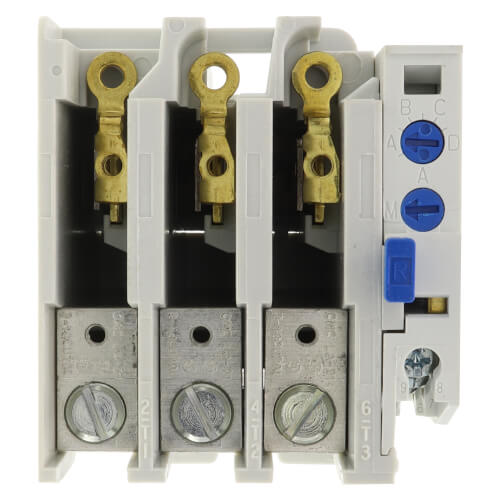

This relay includes load lugs built into the relay base, making it compatible only with series B heater packs. It supports simple installation onto a contactor as well as DIN rail or panel mounting options. Ideal for protection against overloads and minimizing faults in electrical systems.
Product Information
Standard Information
-
Catalog Number: C306GN3B
-
Manufacturer: EATON
Technical Specifications
-
Mounting Type: Panel
-
Amperage Rating: 60 to 79 A
-
Number of Poles: 3
-
Enclosure Type: NEMA 1/2
-
Dimensions: 4-1/2 in L x 4-1/2 in W x 5 in H
-
Terminal Type: Standard/Solid Copper
-
Standards/Approvals: CSA Certified, UL Listed
-
Country of Origin: Dominican Republic
