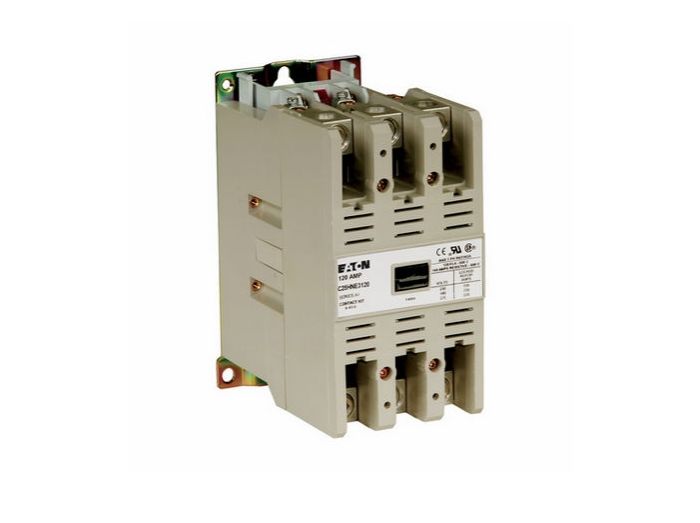

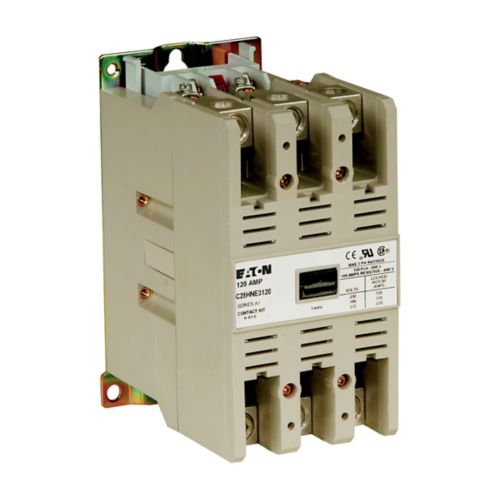

Eaton C25HNE3120T Definite Purpose Contactor 120A

Product Description

The Eaton C25HNE3120T definite purpose contactor is an electrical switching device designed for HVACR and low-cycle duty applications. Rated at 120A, it features a quick connect design and an open enclosure with a metal mounting plate. This three-pole contactor is non-reversing and utilizes box lugs with posidrive setscrews for secure connections.

• Rated for 120A inductive full load and 140A resistive load
• Features box lugs (posidrive setscrew) terminals for secure connection
• Designed with an open enclosure and metal mounting plate

Product Highlights

The Eaton C25HNE3120T contactor is ideal for HVACR applications requiring reliable switching of single and three-phase loads.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: C25HNE3120T

Technical Specifications

• SKU: C25HNE3120T
• Product Name: Eaton definite purpose contactor
• Catalog Number: C25HNE3120T
• UPC: 782114182406
• Product Length/Depth: 5.94 in
• Product Height: 7.17 in
• Product Width: 3.54 in
• Compliances: RoHS Compliant
• Certifications: UL Recognized CSA Certified
• Product Type: Definite purpose contactor
• Amperage Rating: 120A
• Number of poles: Three-pole
• Type: Non-reversing
• Coil: 24 Vac, 50/60 Hz
• Enclosure: Open with metal mounting plate
• Frame size: 15-50 A, two-pole and three-pole
• Inductive full load: 120 A
• Model: Contactor
• Resistive load: 140 A
• Terminals: Box lugs (posidrive setscrew)
• Connection: Quick
• Brand: Eaton - Cutler Hammer
• Contact Current Rating: 120 A
• Current Rating: 120 A
• Mounting Type: Panel Mount
• Poles: 3
• Coil Voltage: 24Vac 50/60Hz
• Amps: 120
• Inductive Current Rating: 120 A
• Coil Type: Magnetic
• Termination: Box Lug
• Resistive Rating: 140 A
• Approvals: CSA, UR
• Net Weight: 8.5 lbs
• Gross Weight: 8.5 lbs
