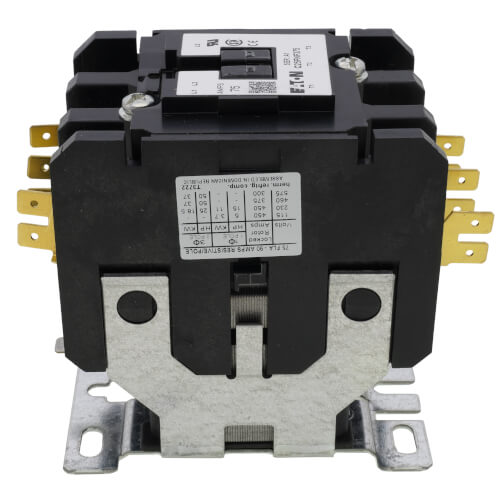

Eaton C25FNF375T 24 VAC 50/60 Hz Coil 75 A Inductive 90 A Resistive Frame F Open Enclosure 3-Pole Non-Reversing Definite Purpose Contactor

Product Description

Eaton C25FNF375T is a definite purpose contactor designed for HVAC applications. This contactor features a coil voltage of twenty-four volts alternating current and operates at fifty or sixty hertz. The unit is built to handle a current rating of seventy-five amps for inductive loads and ninety amps for resistive loads. It is a three-pole design and comes in an open enclosure.

• Rated for 15 HP at 230 volts AC 1-Phase
• Available for 20 HP at 230 volts AC 3-Phase
• Includes quick connection type and box lug for easy installation

Product Highlights

This contactor is suitable for a wide range of HVAC and refrigeration systems, ensuring reliable operation and efficiency.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 782114117477

Technical Specifications

• Coil Voltage: 24 Volt AC 50/60 Hertz
• Current Rating: 75 Amp
• Inductive Ampere: 75 Amp
• Resistive Ampere: 90 Amp
• Frame Size: Frame F
• Number of Poles: 3
• Enclosure: Open
• Overall Dimensions: 2.63 inches Width x 3.97 inches Depth x 3.75 inches Height
• Locked Rotor Current Rating: 450 Amp at 230 Volt AC
