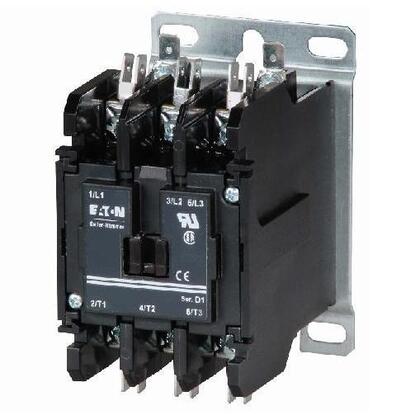

EATON C25FNF350A Definite Purpose Contactor 50 A

Product Description

The Eaton C25FNF350A definite purpose contactor is a reliable three-pole, non-reversing device suitable for HVACR applications. Designed to operate with a coil voltage of one hundred ten to one hundred twenty VAC at fifty or sixty hertz, it supports a maximum load current of fifty A for inductive loads and sixty-five A for resistive loads. This contactor is equipped with quick-connect (side by side) terminals and box lug connections, providing versatility for installation. The open enclosure design makes it ideal for low duty-cycle applications.

• Ideal for HVACR systems
• Features box lug and quick-connect terminals
• Optimized for low duty-cycle usage

Product Highlights

This contactor is specifically designed for efficient operation in heating, ventilation, air conditioning, and refrigeration systems.

Product Information

Standard Information

• Brand: Eaton
• MPN: C25FNF350A

Technical Specifications

• Product Length/Depth: 3.97 inches
• Product Height: 3.75 inches
• Product Width: 2.63 inches
• Warranty: 1 year
• Compliances: RoHS Compliant
• Certifications: UL Recognized, CSA Certified
• Amperage Rating: 50 A
• Number of Poles: 3
• Coil Voltage: 110-120 VAC, 50/60 Hz
• Frame Size: 15-50 A, two-pole and three-pole
• Maximum Load Current: 50 A Inductive / 65 A Resistive
• Enclosure Type: Open with metal mounting plate
• Termination: Box Lugs, Quick Connect
