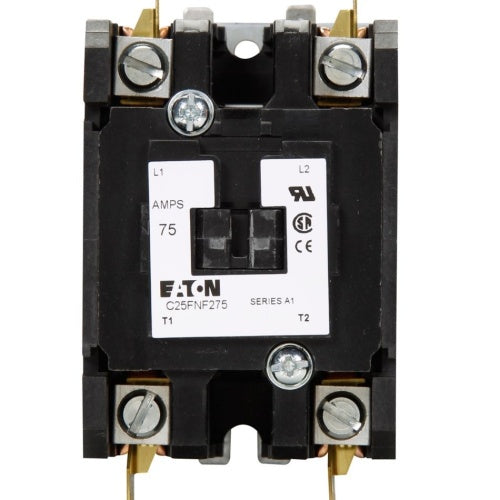

Eaton C25FNF275B Definite Purpose Contactor 75 A

Product Description

The Eaton C25FNF275B definite purpose contactor is a non-reversing contactor designed for HVAC applications. It features box lugs and quick connect terminals. Operates at 208–240 Vac, 50/60 Hz. These contactors are electrically operated switching devices specifically designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry.

• Open with metal mounting plate
• Box lugs (posidrive setscrew)
• Quick connect terminals (side-by-side)

Product Highlights

The Eaton C25FNF275B contactor is suitable for HVAC applications. It has a completely encased design impervious to dust and other environmental elements.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: C25FNF275B

Technical Specifications

• Product Name: Eaton definite purpose contactor
• Catalog Number: C25FNF275B
• UPC: 782114117446
• Product Length/Depth: 3.97 in
• Product Height: 3.75 in
• Product Width: 2.63 in
• Compliances: RoHS Compliant
• Certifications: CSA Certified
• Product Type: Definite purpose contactor
• Amperage Rating: 50A
• Number of Poles: Three-pole
• Type: Non-Reversing
• Coil Voltage: 208-240 Vac, 50/60 Hz
• Enclosure Type: Open with metal mounting plate
• Frame size: 15-50 A, two-pole and three-pole
• Inductive full load: 75 A
• Model: Contactor
• Resistive load: 65 A
• Terminals: Box lugs (posidrive setscrew) and quick connect terminals (side-by-side)
• Connection: Quick
• Maximum Load Current: 75 A
• Dimensions: 3.97 in L x 2.63 in W x 3.75 in H
• Starter Frequency: 50 Hz
• Starter Coil Voltage: 208 VAC
• Component: NEMA Contactor
• Sub Component: Definite Purpose Contactor
• Starter Poles: Three Pole
• Starter Reversing Capability: Non-Reversing
• Starter Amperage: 75 Amp
• Manufacturer: Eaton
• Starter Class: C25
• Starter Enclosure Type: Open W/ Metal Mounting Plate
