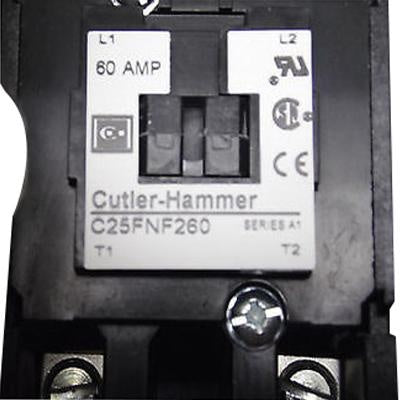

Eaton C25FNF260A Non-Reversing Definite Purpose Contactor 60A 110 to 120 VAC

Product Description

Eaton C25FNF260A is a non-reversing definite purpose contactor designed for various industrial applications. It operates with a coil voltage of 110 to 120 VAC at 50/60 Hz. The contactor is rated for maximum load currents of sixty amps inductive and seventy-five amps resistive. Its two-pole configuration features quick-connect side-by-side connections and an open enclosure design.

• 60 amps inductive and 75 amps resistive ratings
• Box lug terminal type for easy installation
• Designed for HVACR and motor control applications

Product Highlights

This contactor is ideal for controlling motors and other electrical loads in HVAC systems and industrial machinery.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Eaton

Technical Specifications

• Coil Voltage: 110 to 120 VAC
• Maximum Load Current: 60A Inductive / 75A Resistive
• Number of Poles: 2
• Enclosure Type: Open with Metal Mounting Plate
• Terminal Type: Box Lug
• Dimensions: 3.97 in L x 2.63 in W x 3.75 in H
