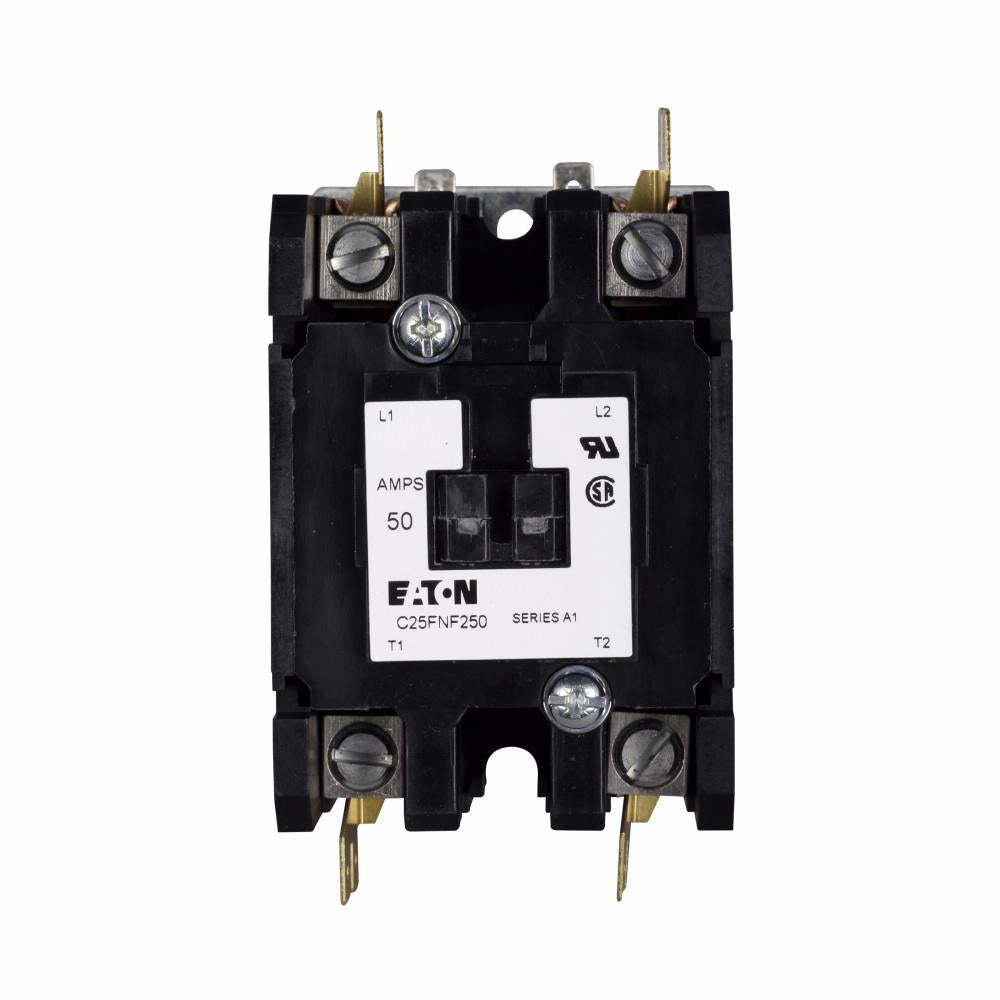

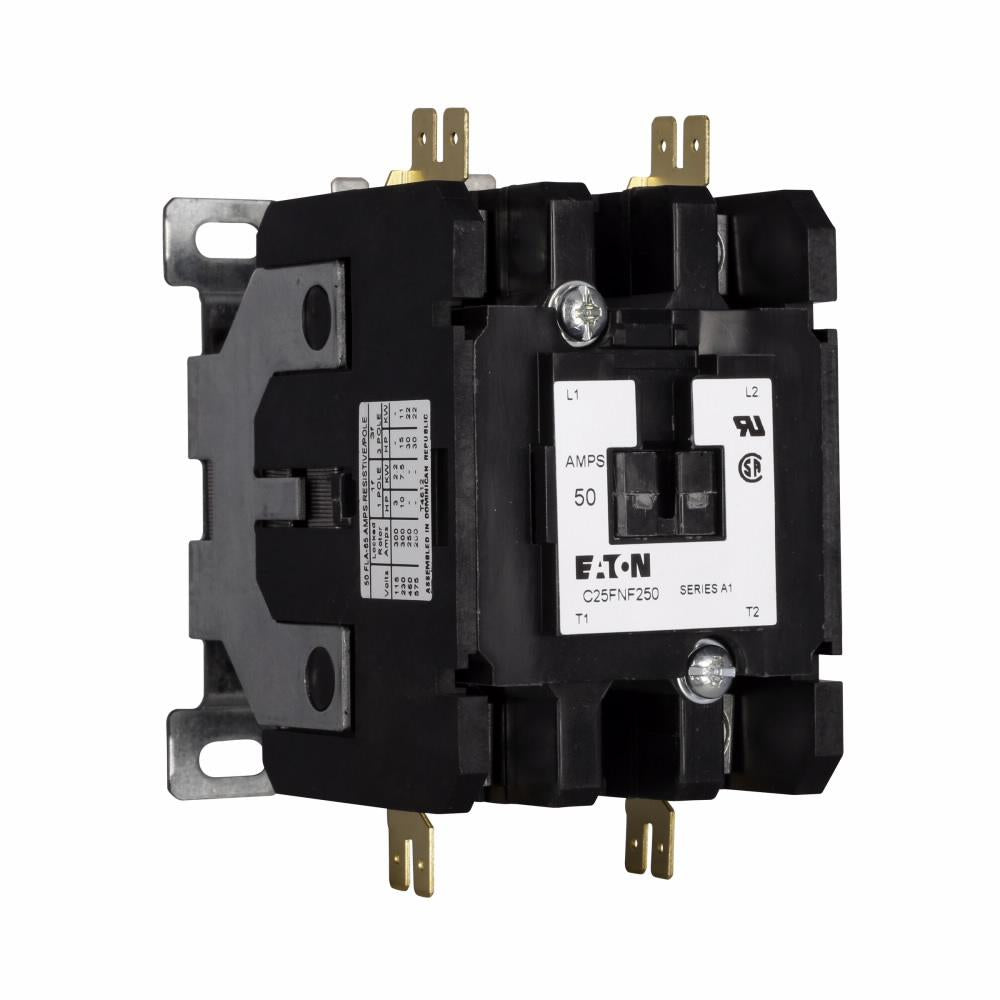

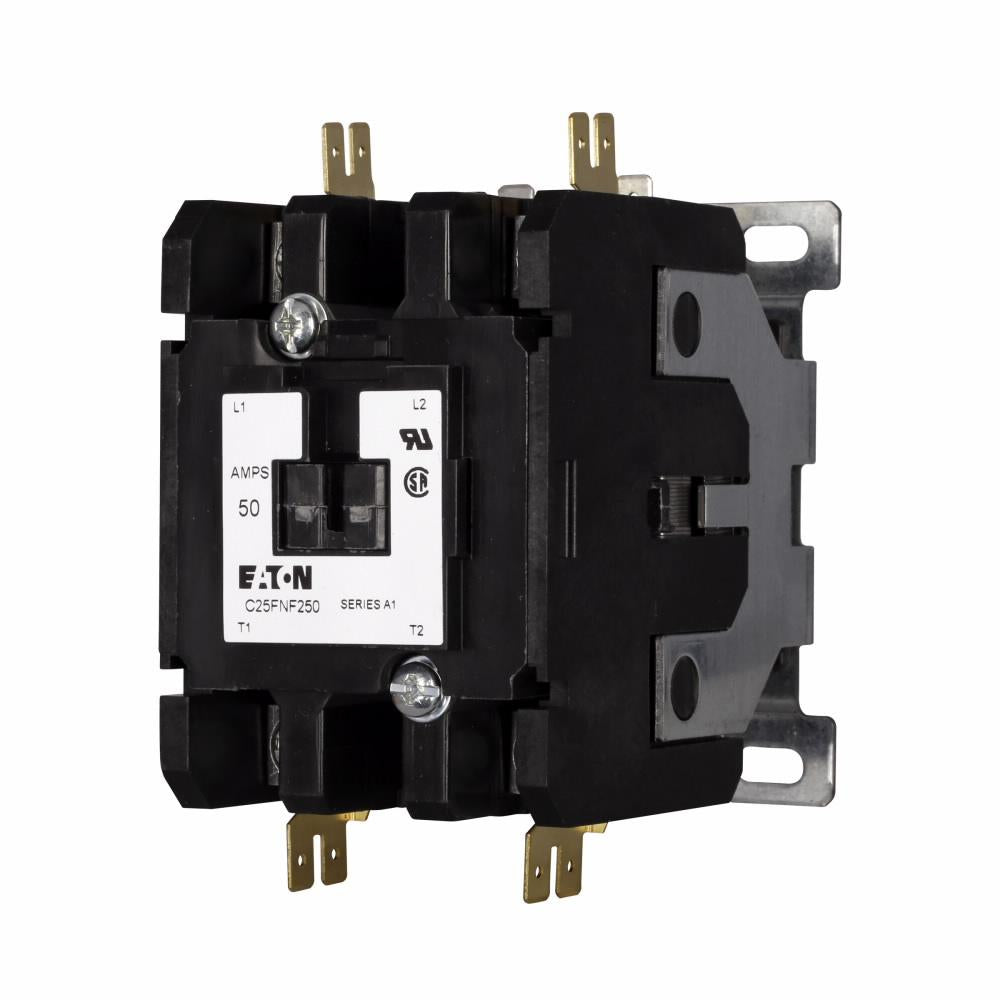

EATON C25FNF250T F-Frame Non-Reversing Definite Purpose Control Contactor 24 VAC at 50/60 Hz

Product Description

The EATON C25FNF250T is a definite purpose control contactor designed for HVAC applications. It operates at twenty-four volts alternating current at fifty or sixty hertz. This contactor can handle a maximum load of fifty amperes inductive or sixty-five amperes resistive. It is a two-pole device featuring a double break contact design.

• Maximum load of 50 A inductive / 65 A resistive
• Features quick-connect terminals for easy installation
• Open type enclosure suitable for surface mounting

Product Highlights

Ideal for applications requiring reliable switching and control within HVAC systems. The EATON C25FNF250T provides robust operation with a long service life.

Product Information

Standard Information

• Manufacturer: EATON
• Coil Voltage: 24 VAC at 50/60 Hz

Technical Specifications

• Type: F-Frame Non-Reversing
• Connection Type: Quick-Connect (Side by Side)
• Contact Type: Double Break
• Number of Poles: 2
• Maximum Load Current: 50 A Inductive / 65 A Resistive
• Operating Cycles: 300000
• Operating Temperature: 150 deg F
• Dimensions: 3.97 in L x 2.63 in W x 3.75 in H
• Enclosure Type: Open
• Terminal Type: Box Lug
• Mounting Type: Surface
