Product Description

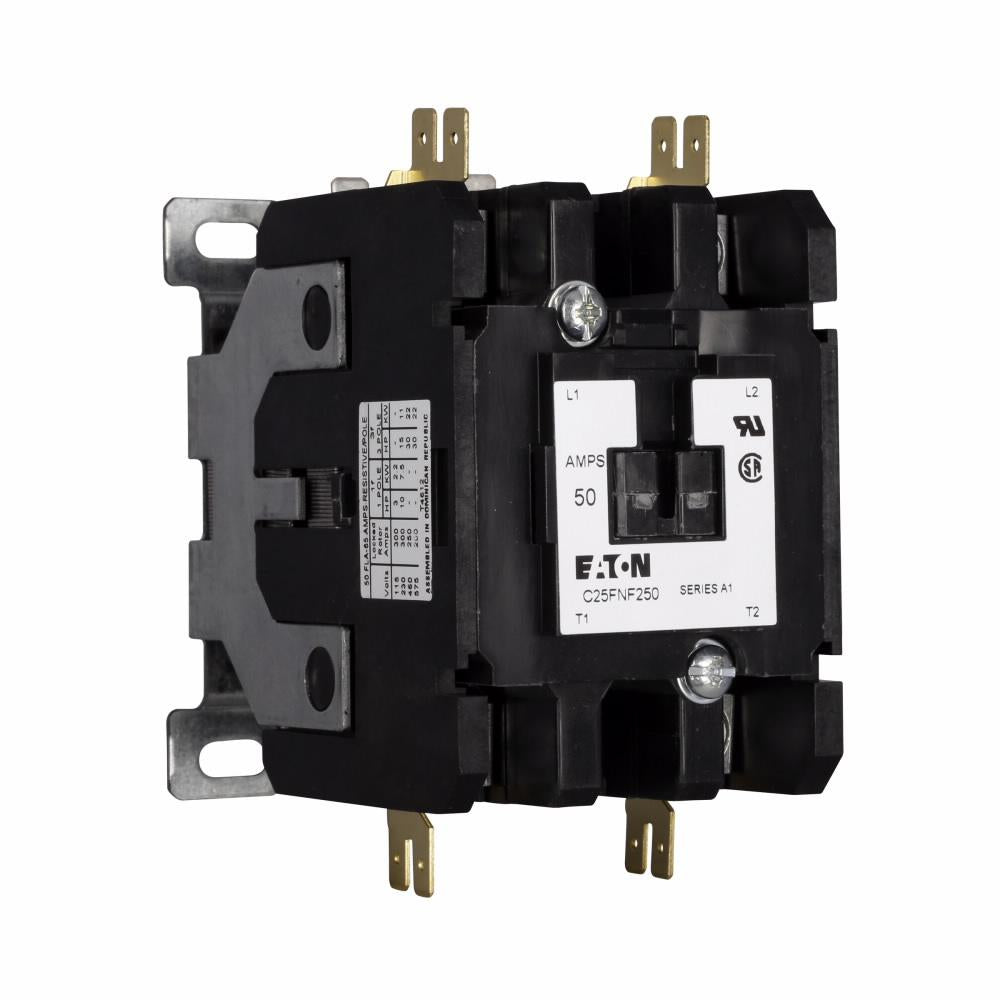

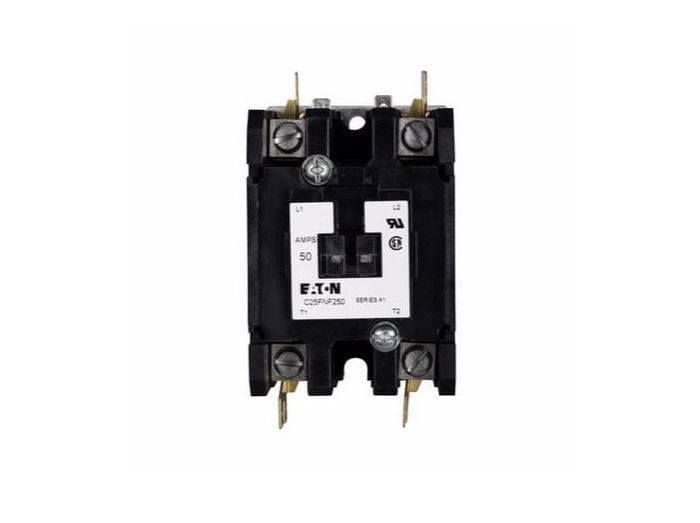

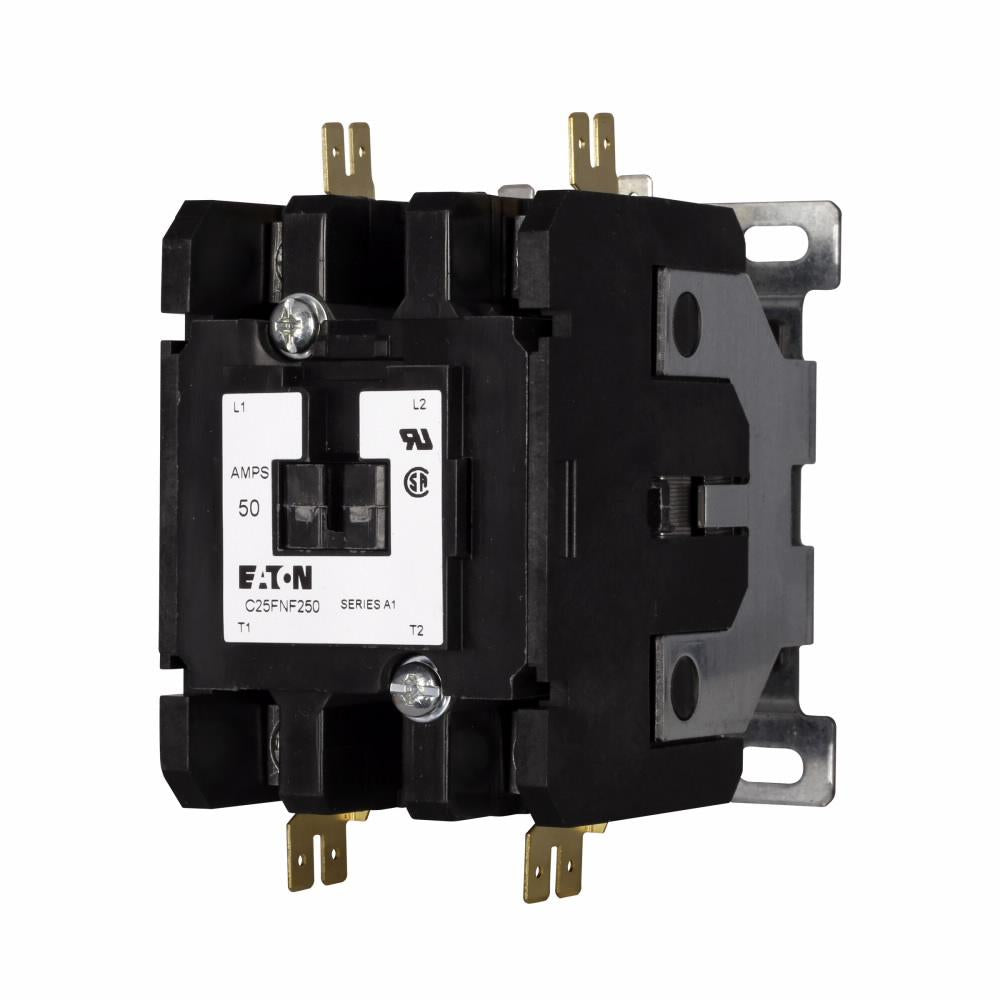

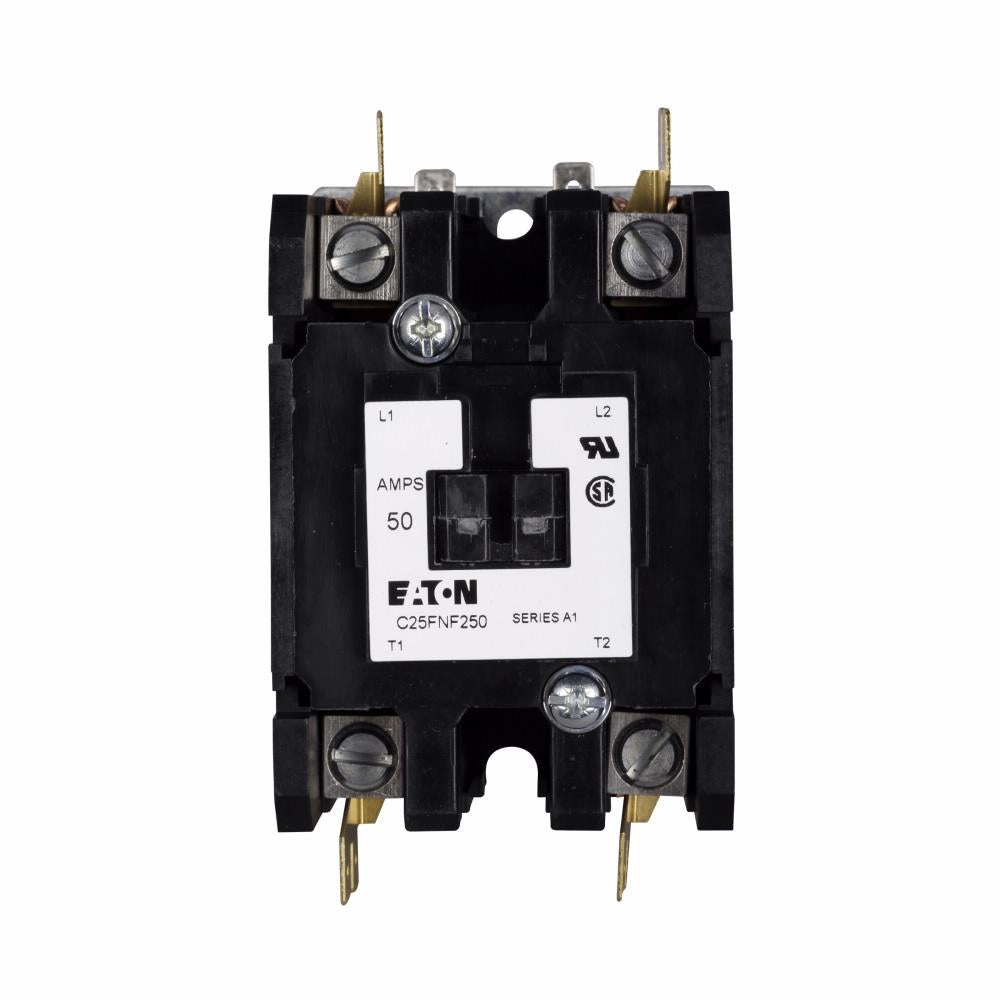

The EATON C25FNF250B definite purpose contactor is an electrically operated switching device designed for the heating, ventilation, air conditioning, and refrigeration (HVAC) industry. It is controlled by automatic thermostat control or manual pushbutton interfaces. Suitable for low-cycle duty applications requiring low cost switching of single and three-phase loads.
- Universal mounting plate eliminates changing hole patterns when replacing competitive devices
- Variety of terminal styles allows product to meet all specific application needs
- Snap-on accessories require no tools for hassle free installation
Product Highlights
This contactor features quick connect terminals, an open enclosure, and double break contacts. It is suitable for various low-cycle duty applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: C25FNF250B
Technical Specifications
-
Connection Type: Quick-Connect
-
Contact Type: Double Break/Non-Reversing
-
Enclosure Type: Open
-
Frequency Rating: 50/60 Hz
-
Mounting Type: Panel Mount
-
Operating Cycles: 300000 Cycles
-
Operating Temperature: 150 deg F
-
Terminal Type: Box Lug
-
Type: F-Frame
-
Coil Voltage: 208/240 VAC
-
Maximum Load Current: 50 A
-
Number of Poles: 2
-
Product Name: Eaton definite purpose contactor
-
Catalog Number: C25FNF250B
-
UPC: 782113476056
-
Product Length/Depth: 3.97 in
-
Product Height: 3.75 in
-
Product Width: 2.63 in
-
Product Weight: 2.66 lb
-
Compliances: RoHS Compliant
-
Certifications: UL Recognized CSA Certified
-
Catalog Notes: Resitive Load rating per pole
-
Product Type: Definite purpose contactor
-
Amperage Rating: 60A
-
Non-reversing: Non-reversing
-
Coil: 110-120 Vac, 50/60 Hz
-
Enclosure: Open with metal mounting plate
-
Frame size: 15-50 A, two-pole and three-pole
-
Inductive full load: 60 A
-
Model: Contactor
-
Resistive load: 75 A
-
Terminals: Box lugs (posidrive setscrew) and quick connect terminals (side-by-side)
-
Connection: Quick
-
Coil Power: 208-240 Vac, 50/60 Hz W
-
Current Rating: 50 A
-
Manufacturer: Eaton
-
Product Series: C25
-
Family Series: Eaton Contactors, C25 Series
-
Description: Eaton definite purpose contactor, Quick, 75A, 277 Vac, 60 Hz, Open with metal mounting plate, 15-50A, two- and three-pole, 75A, Contactor, Three-pole, 90A, Box lugs posidrive setscrew and quick connect terminals , Non-reversing
-
Nominal Coil Voltage: 208 VAC, 240 VAC
-
Coil Type: Magnetic
-
Poles: 2NO
-
Frame Size: F
-
Termination: Box Lug, Quick Connect
-
Shunt: No
-
Resistive Rating: 65 A
-
Approvals: CSA, UR
-
Net Weight: 2.6 lbs
-
Gross Weight: 2.66 lbs
