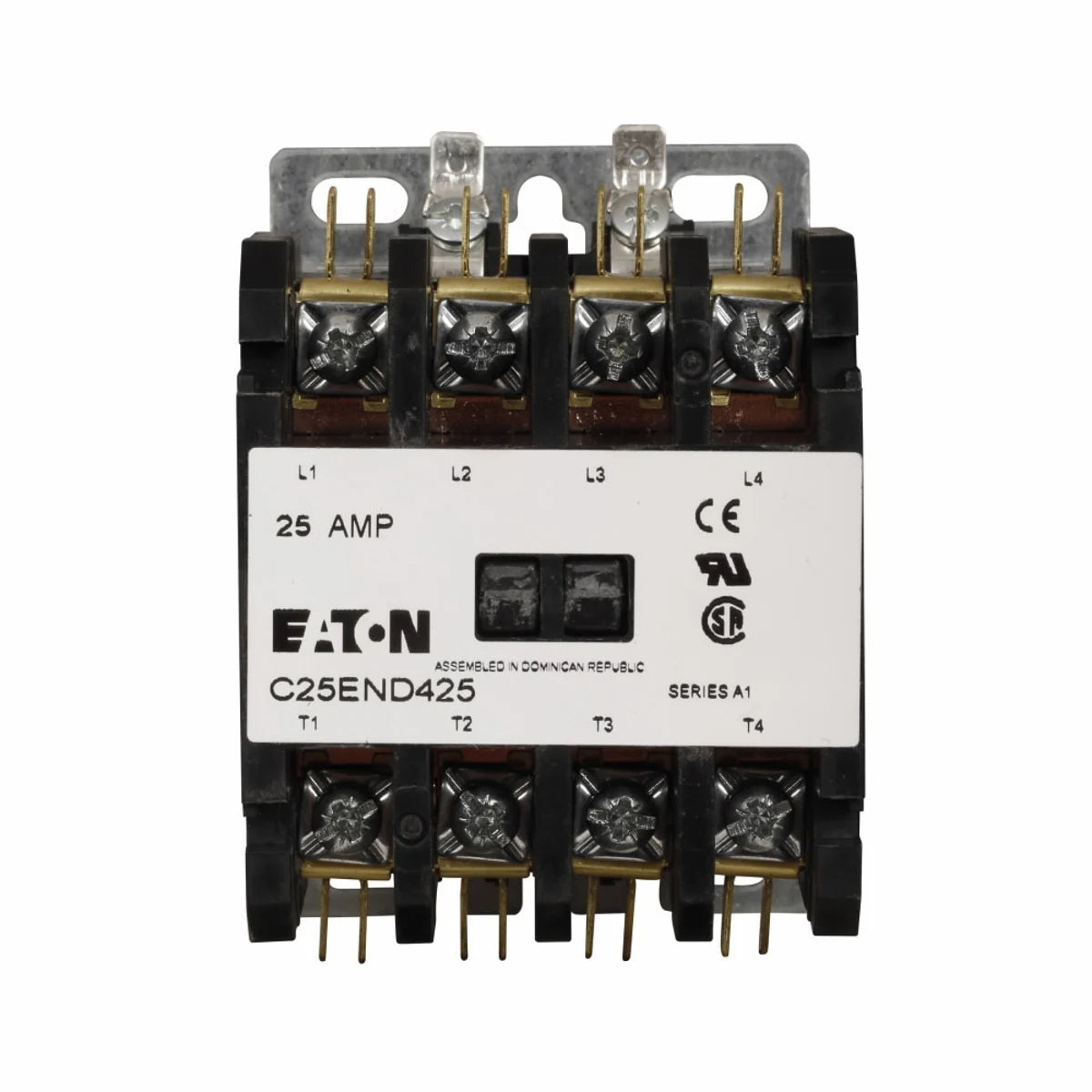

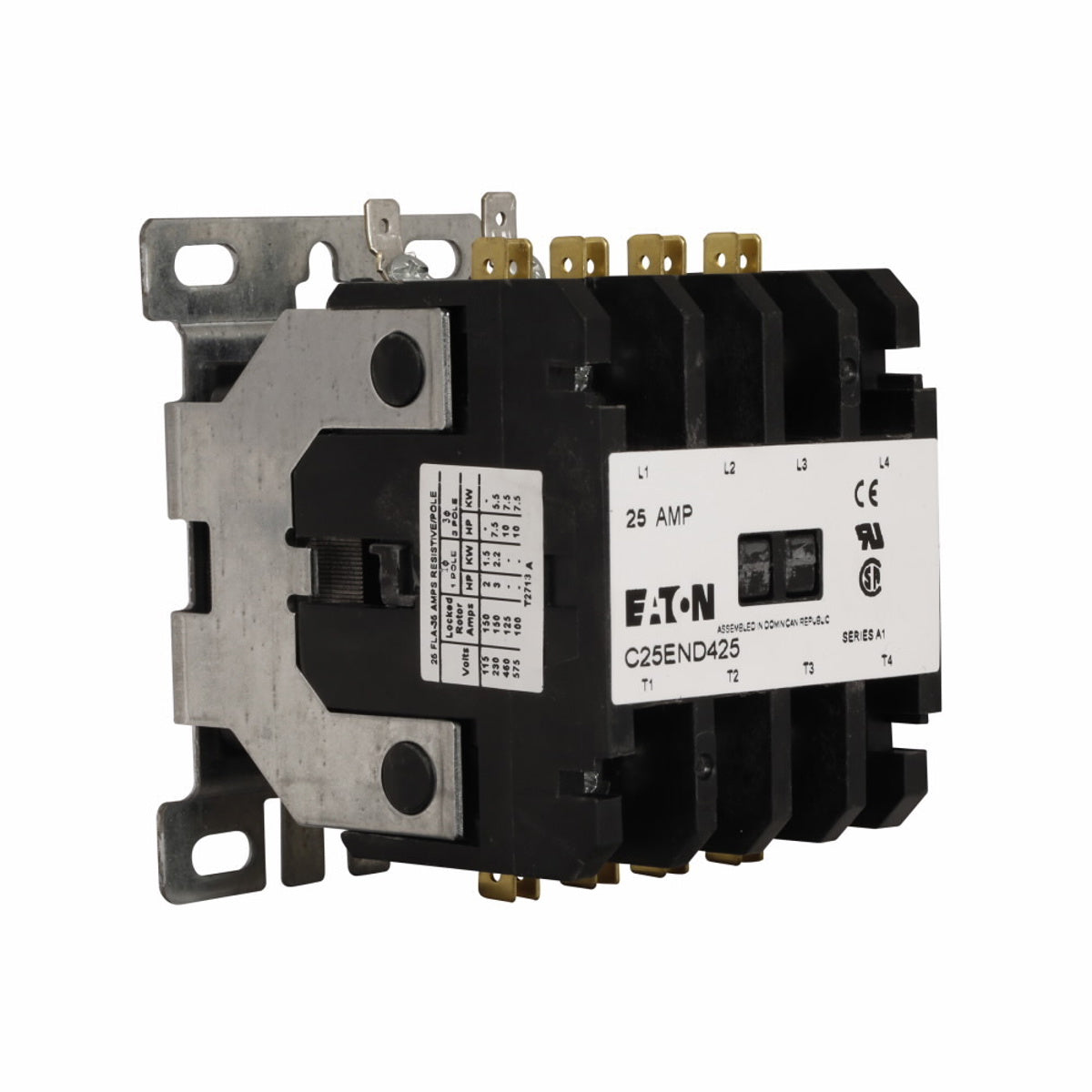

Eaton C25END425A Contactor PRP Definite 4 Pressure P/SCR

Product Description

The Eaton C25END425A is a definite purpose contactor designed for reliable performance in heating, ventilation, and air conditioning systems. It operates at a coil voltage of 110 to 120 VAC at 50/60 Hz. This non-reversing contactor handles a maximum load current of 25 A inductive and 35 A resistive. The product features four poles and provides quick-connect terminal options for easy installation.

• Quick-connect connection system
• Open enclosure with metal mounting plate
• Suitable for HVACR applications

Product Highlights

This contactor is ideal for electrical assemblies, panels, and OEM applications. Its robust design ensures durability in challenging environments.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: C25END425A

Technical Specifications

• Coil Voltage: 110 to 120 VAC at 50/60 Hz
• Maximum Load Current: 25 A inductive / 35 A resistive
• Number of Poles: 4
• Enclosure Type: Open with metal mounting plate
• Connection Type: Quick-Connect
• Dimensions: 3.38 inches L x 2.68 inches W x 3.75 inches H
• Weight: 2.1 lb
