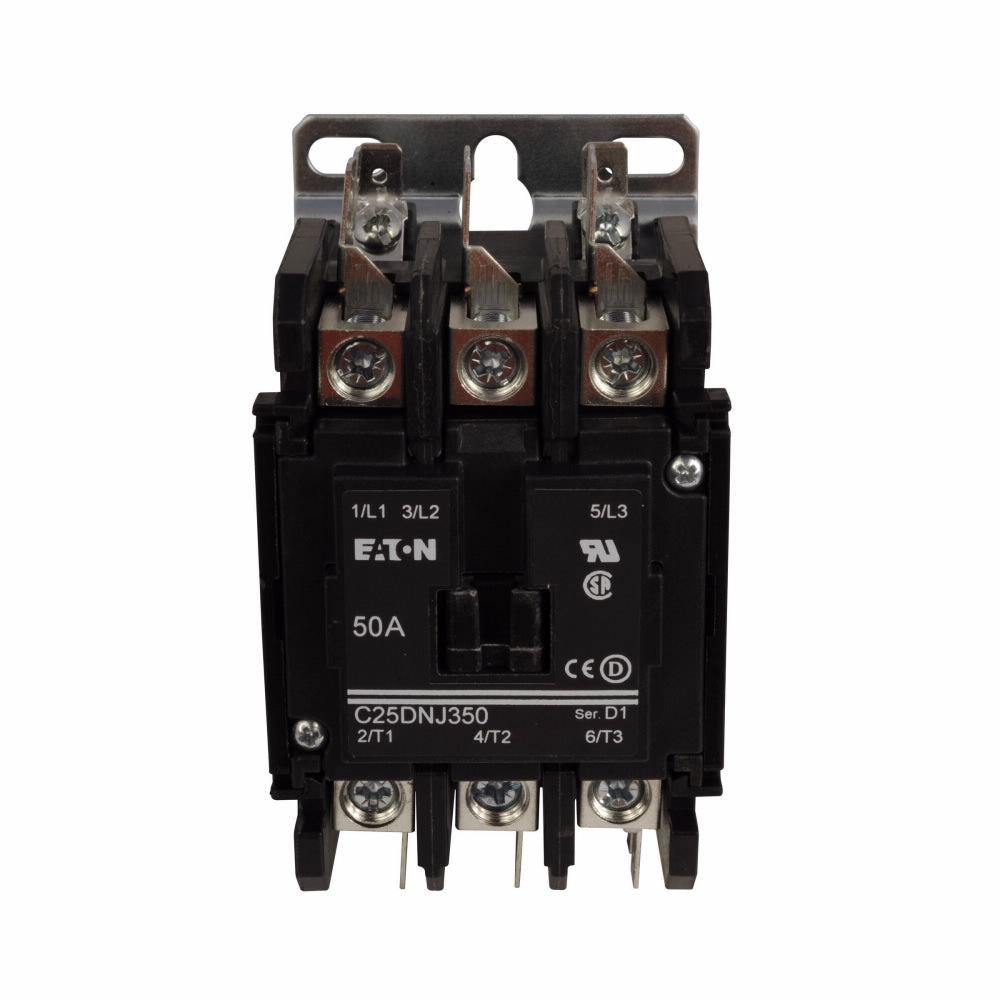

Eaton C25DNJ350A Definite Purpose Contactor 50 Amp 120 VAC

Product Description

The Eaton C25DNJ350A is a three-pole definite purpose contactor designed for reliable performance in various HVAC applications. This contactor operates on one hundred ten to one hundred twenty volts alternating current (VAC) at fifty or sixty hertz. With a maximum load current rating of fifty amps inductive and sixty-five amps resistive, this unit is suitable for a broad range of industrial control purposes.

• Operates at 120 V AC with a 50 A inductive load capacity
• Features a quick-connect terminal type for easy installation
• Designed for surface mounting in open enclosures

Product Highlights

This contactor is ideal for controlling motors and other electrical loads in HVAC systems. It features a robust design suited for frequent operation and offers non-reversing capabilities.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: C25DNJ350A

Technical Specifications

• Coil Voltage: 110 to 120 VAC at 50/60 Hz
• Maximum Load Current: 50 A Inductive / 65 A Resistive
• Operating Cycles: 300000
• Number of Poles: 3
• Contact Configuration: 1NC
• Enclosure Type: Open with metal mounting plate
• Dimensions: 4 in L x 2.6 in W x 3.8 in H
• Operating Temperature: 150 deg F
