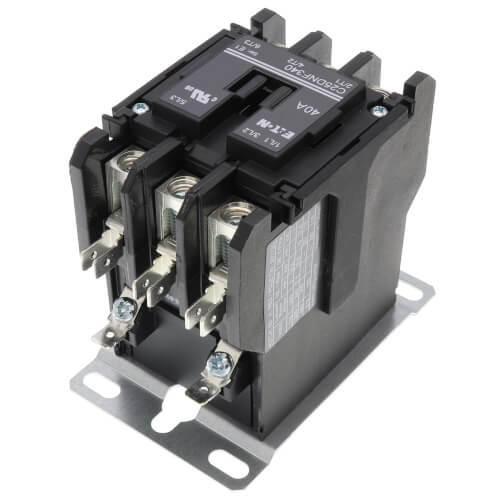

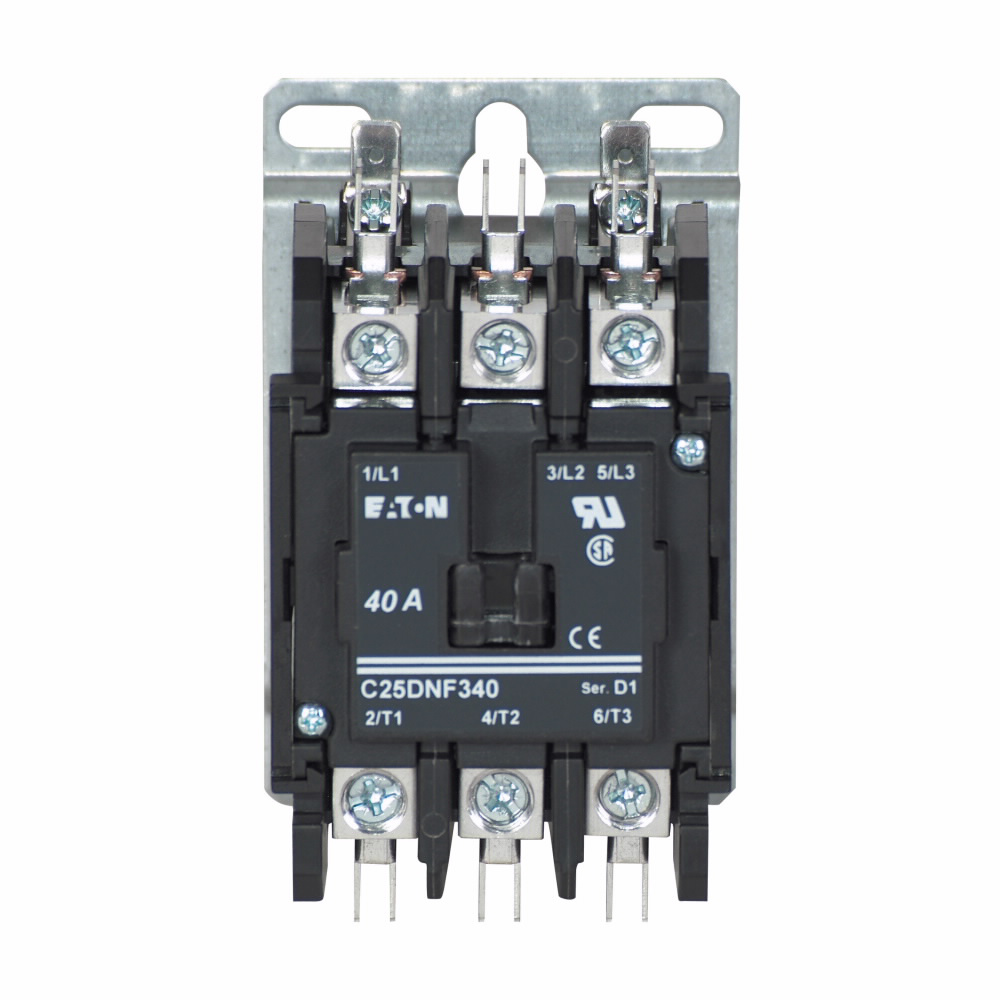

Eaton C25DNF340T Definite Purpose Control Contactor 40A 3-Pole 24 VAC

Product Description

The Eaton C25DNF340T Definite Purpose Control Contactor is designed to handle diverse switching needs in motor and power control equipment. Manufactured by Eaton, this contactor features a 40A rating and a 24 VAC coil voltage, making it an essential component for various high-demand environments.

• 40A current rating
• 24 VAC coil voltage
• 3-pole configuration

Product Highlights

This Eaton contactor is suitable for HVAC systems, compressors, and other electrical assemblies requiring reliable and efficient power control. Its non-reversing, open-type design with a metal mounting plate ensures long-lasting durability.

Product Information

Standard Information

• Brand: Eaton
• MPN: C25DNF340T
• UPC: 782116300709

Technical Specifications

• Amperage: 40 Amp
• Coil Voltage: 24 VAC
• Number of Poles: 3
• Connection Type: Quick
• Terminal Type: Box Lugs

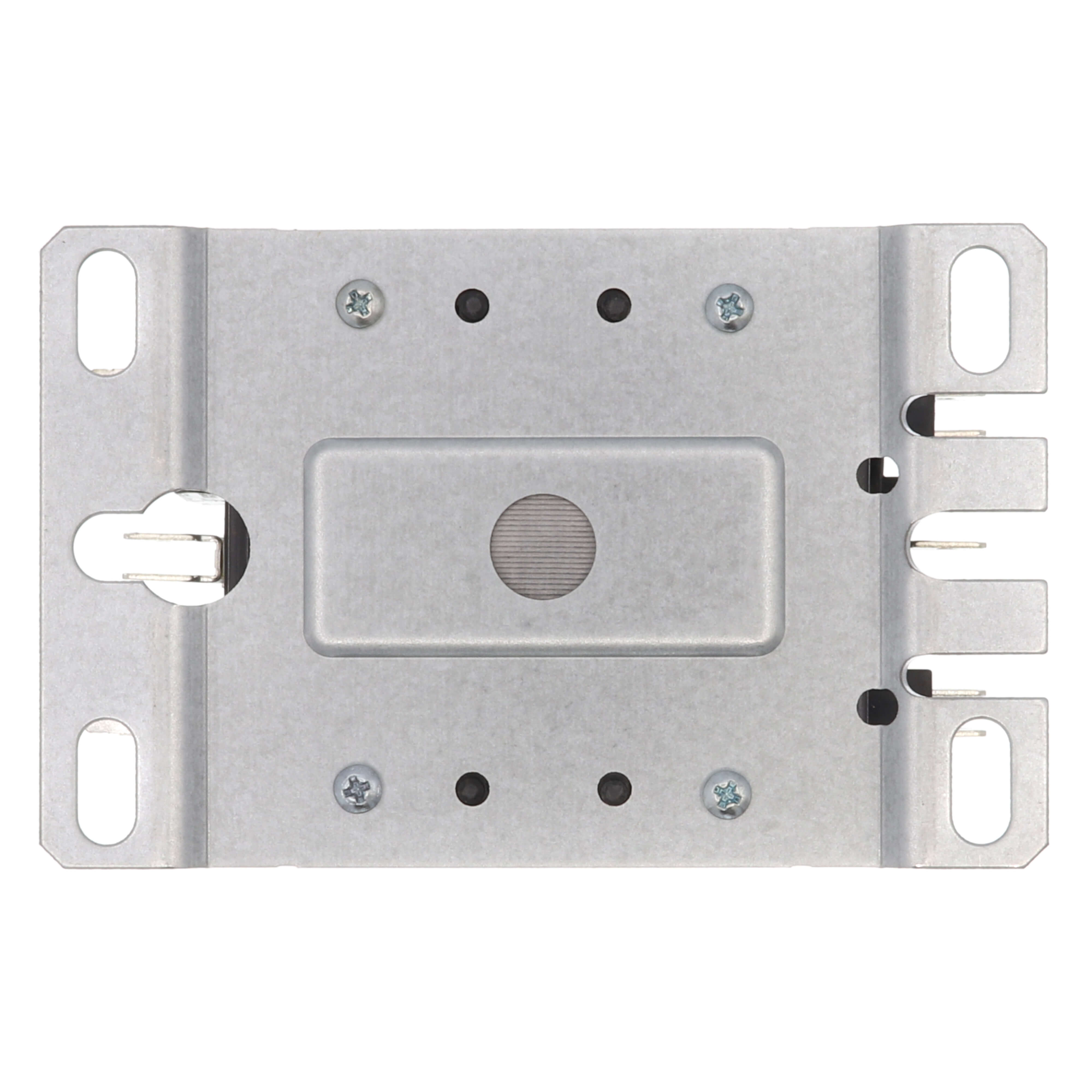

• Enclosure: Open with Metal Mounting Plate
• Dimensions: 3.35 in L x 2.4 in W x 2.3 in H
• Weight: 1.05 lb
• Applications: For Motor and Power Control Equipment
• Temperature Rating: 150 degrees F Ambient
• Operating Cycles: 300000 Cycles
• Standards/Approvals: CSA Certified, UL Recognized, RoHS Compliant
