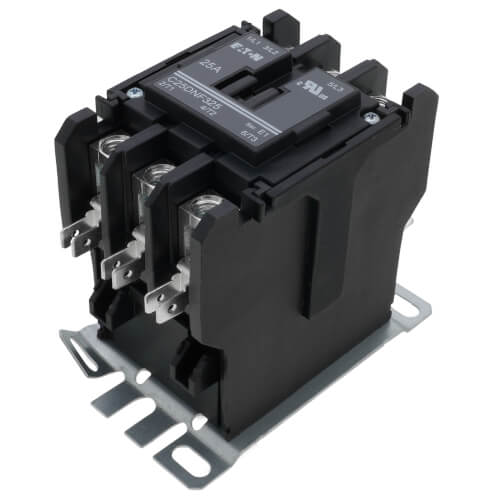

Eaton C25DNF325T Definite Purpose Contactor 24VAC 3-Pole 25A

Product Description

The Eaton C25DNF325T Definite Purpose Contactor is engineered for effective performance in heating, ventilation, air conditioning, and refrigeration applications. This non-reversing contactor provides reliable switching of electrical circuits, optimizing operations in industrial settings.

• Equipped with a 24VAC coil and 3 poles for robust functionality.
• Features an open frame with a metal mounting plate and box lug/quick-connect terminals.
• Designed for a maximum load of 25 amps inductive and 35 amps resistive.

Product Highlights

Rated for both commercial and industrial environments, the contactor accommodates various operations, ensuring durable and dependable use. It's built to manage high electrical loads effectively, making it a valuable component of any robust electrical system.

Product Information

Standard Information

• Brand: Eaton
• Type: Non-Reversing
• Frame: 15-50 A

Technical Specifications

• Width: 2.4 inches
• Height: 3-3/4 inches
• Length: 3.35 inches
• Weight: 1.19 lb
• Amperage: 25 Amp
• Standard: CSA, UL Recognized
• Enclosure: Metal Mounting Plate, Open
• Coil Voltage: 120 V
