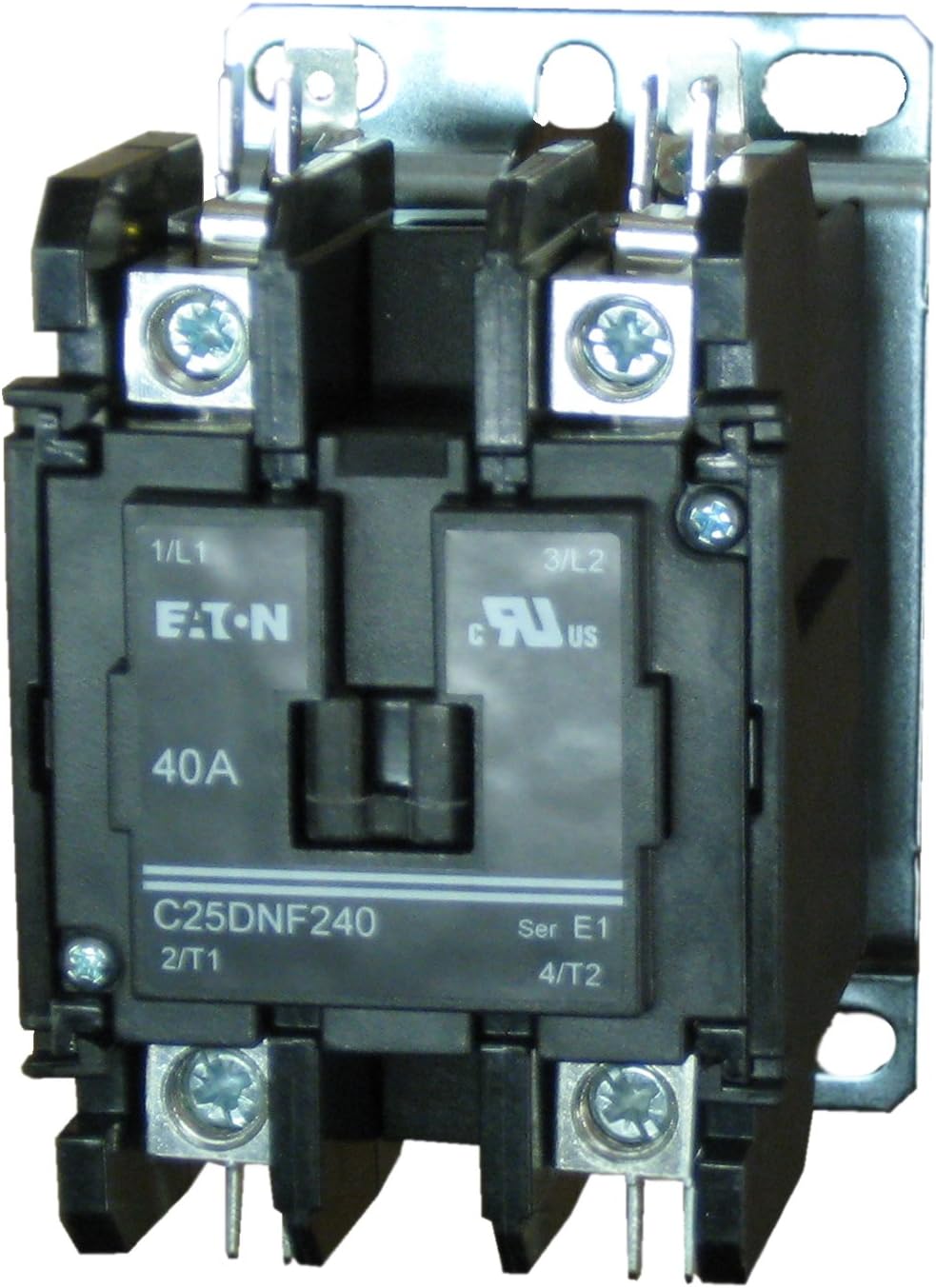

Eaton C25DNF240B Contactor 240 Volts 40 Amps 2 Pole

Product Description

The Eaton C25DNF240B contactor is a reliable and durable component designed for use in electrical systems operating at 208 or 240 volts. This 2-pole, 40-ampere contactor is ideal for switching high-power loads in industrial and commercial applications.

• 2-pole design for switching two separate circuits
• 40-ampere current rating
• 208/240-volt operation

Product Highlights

The Eaton C25DNF240B contactor offers a robust solution for various electrical applications. It features a universal mounting plate, making installation quick and straightforward. The contactor is designed with quick-connect terminals and a high-quality metal mounting plate, ensuring long-lasting performance.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Eaton
• UPC: 782116300402
• GTIN: 00782116300402

Technical Specifications

• MPN: C25DNF240B
• Voltage: 208 to 240 VAC at 50/60 Hz
• Maximum Load Current: 40 A Inductive/50 A Resistive
• Number of Poles: 2
• Dimensions: 3.35 in L x 2.4 in W x 3.75 in H
• Enclosure Type: Open
• Connection Type: Quick-Connect (Side by Side)
• Terminal Type: Box Lug
• Operating Temperature: 150 deg F
• Material: Plastic housing with copper and silver metal contacts
• Certifications: UL Recognized, CSA Certified, RoHS Compliant
