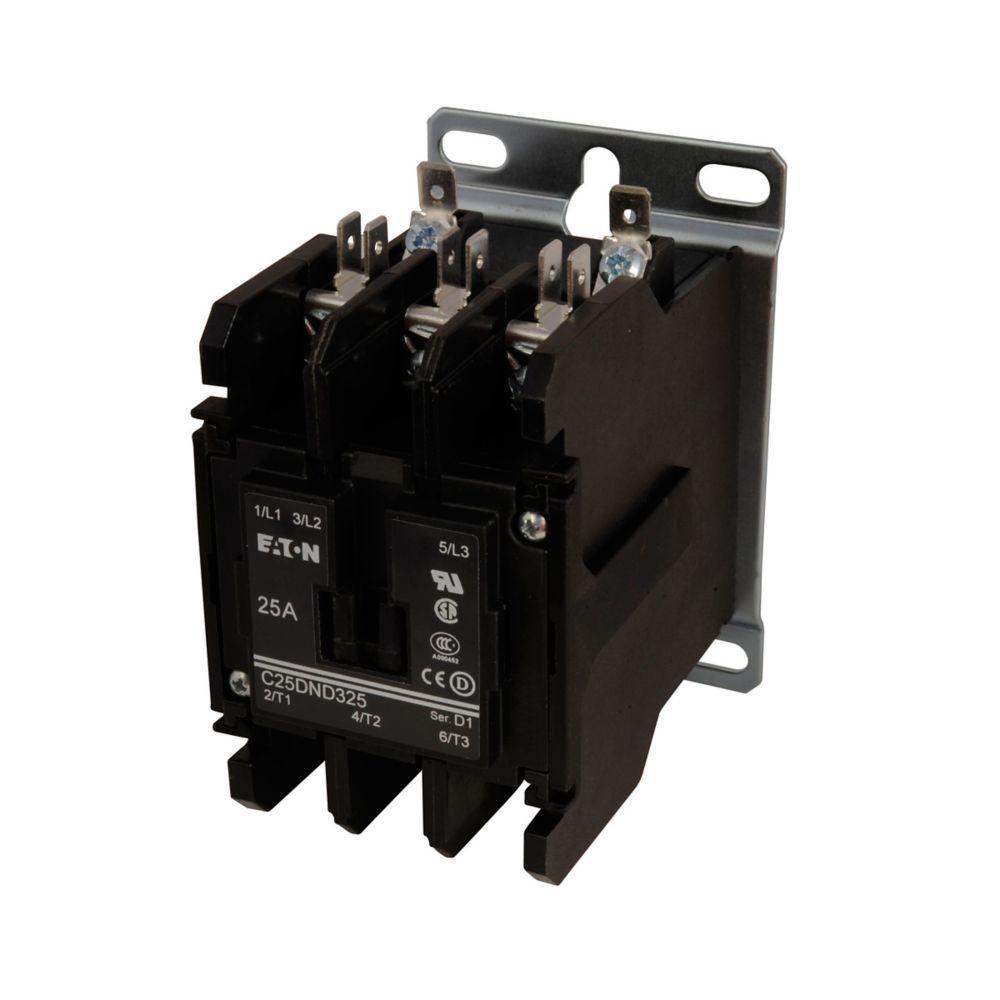

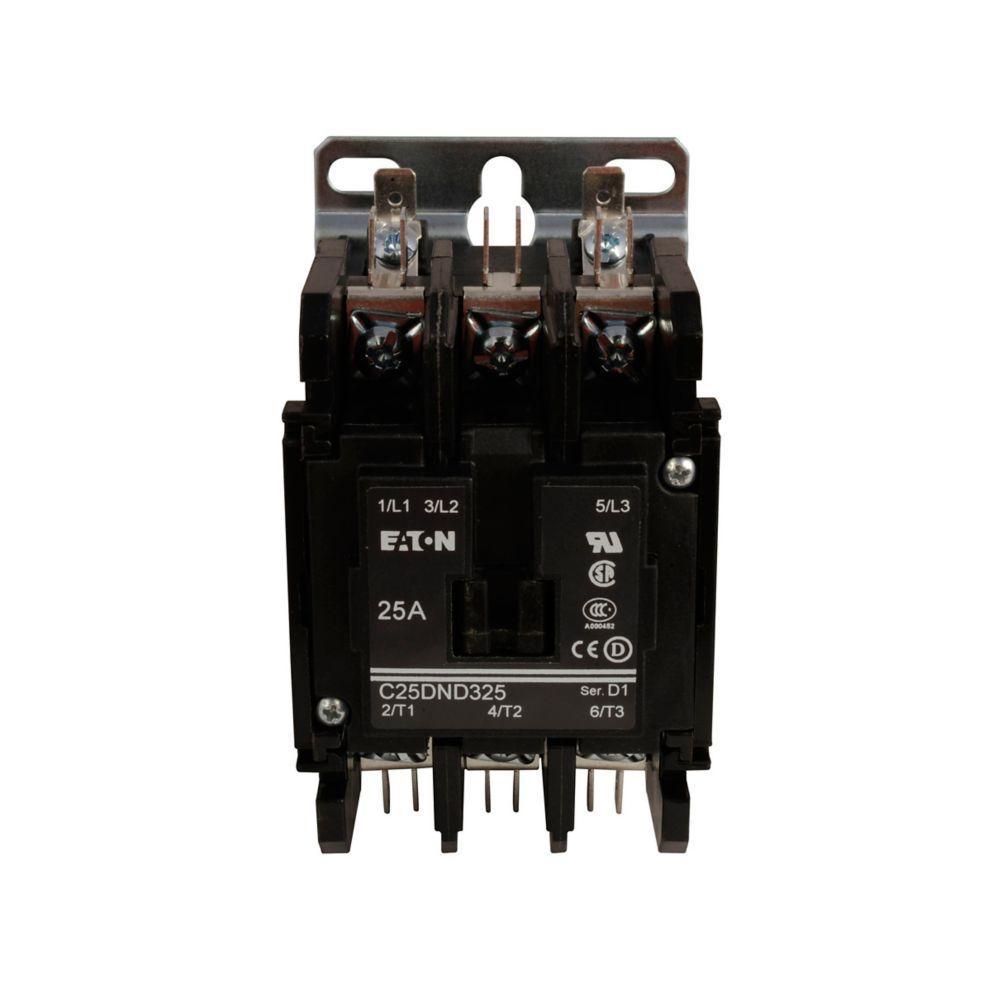

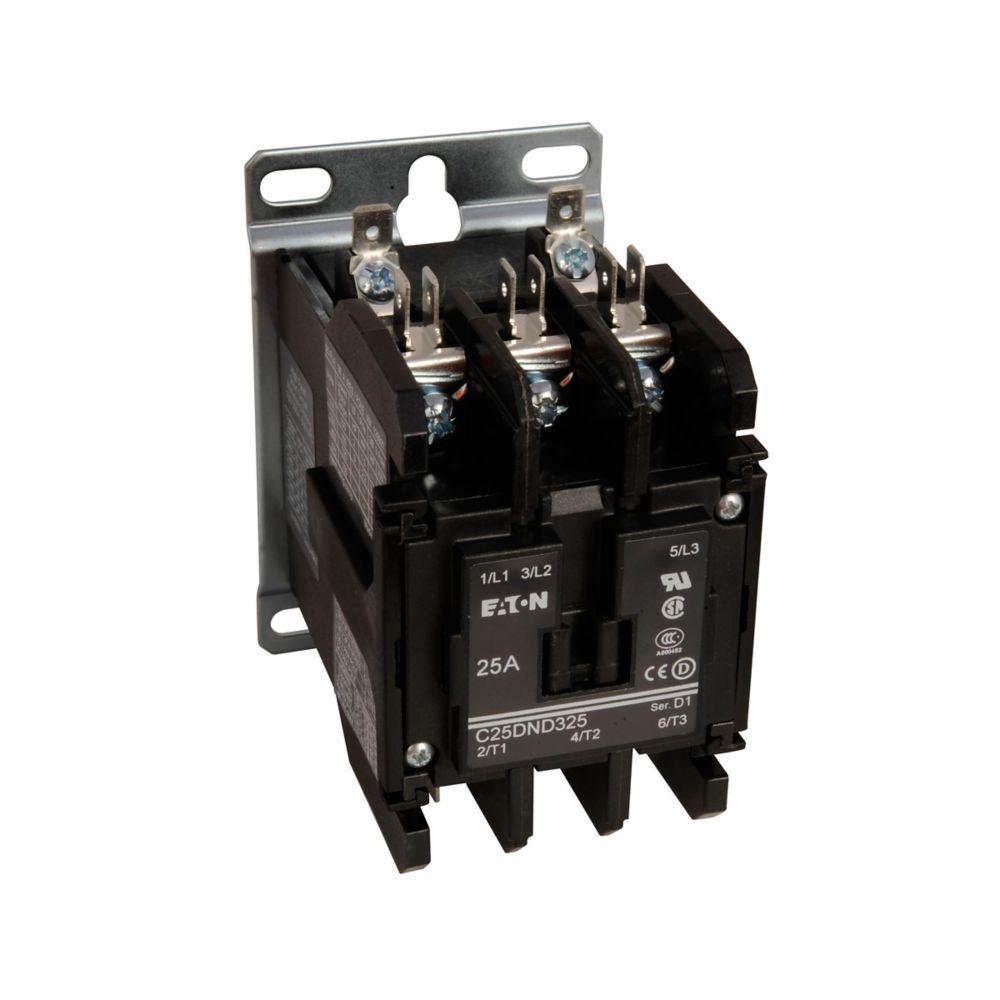

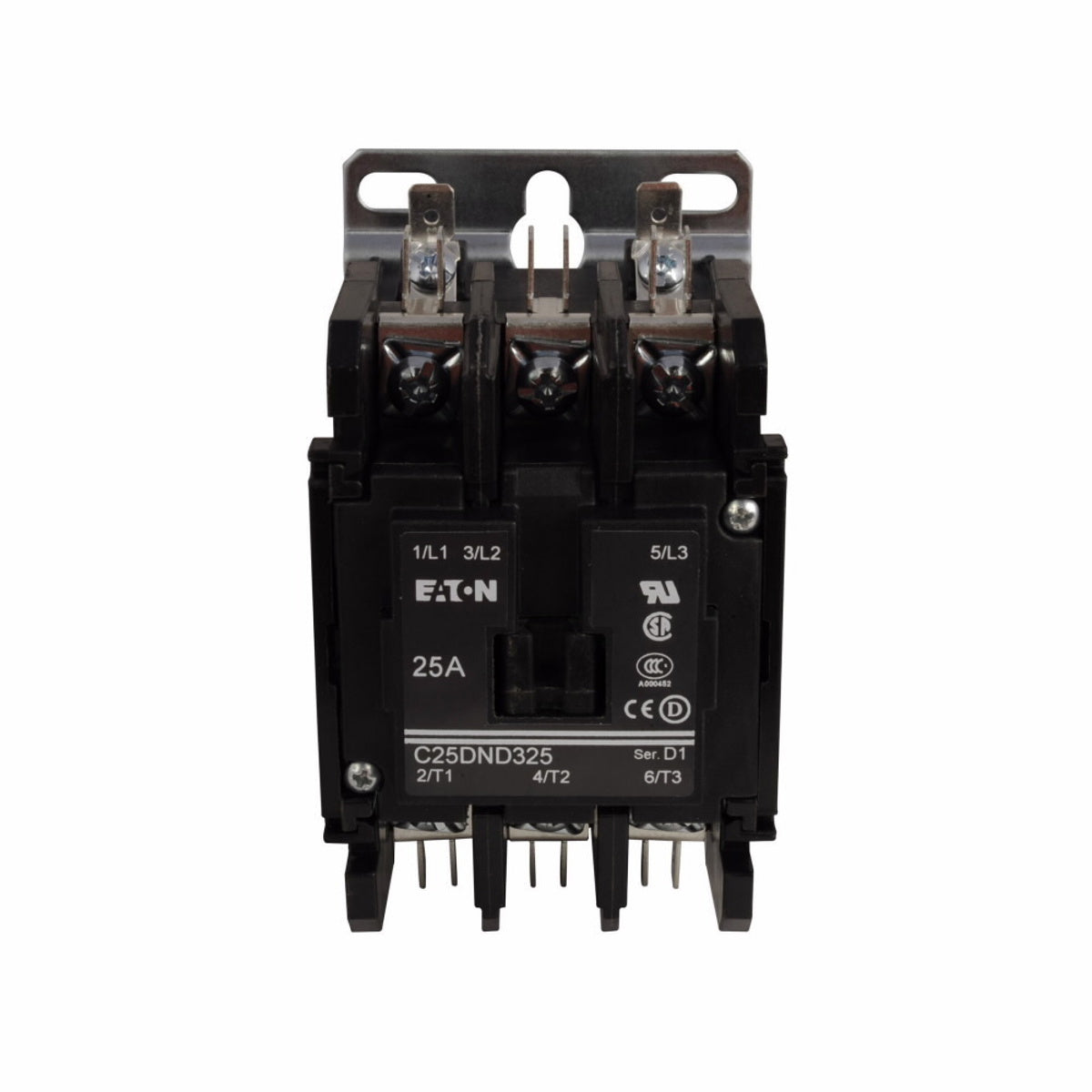

Eaton C25DND330T-GL Non-Reversing Definite Purpose Control Contactor 30A 24 Vac at 50/60 Hz Open with Metal Mounting Plate

Product Description

The Eaton C25DND330T-GL is a definite purpose contactor designed for HVAC applications. This electrically operated switching device provides reliable control of heating and ventilation equipment.

• Quick-connect (side by side) terminals for easy installation.
• Open enclosure with a metal mounting plate for secure installation.
• Global ratings suitable for various electrical systems.

Product Highlights

The Eaton C25DND330T-GL offers a 24 Vac coil voltage and a maximum load current of thirty amps. It is engineered for performance in both residential and commercial HVAC applications.

Product Information

Standard Information

• Catalog Number: C25DND330T-GL
• Manufacturer: Eaton

Technical Specifications

• Coil Voltage: 24 Vac at 50/60 Hz
• Maximum Load Current: 30 A
• Number of Poles: 3
• Coil Power Rating: 5, 10 hp
• Connection Type: Quick-Connect (Side by Side)
• Operating Cycles: 300000 Cycles
• Operating Temperature: 150 deg F
• Dimensions: 3.5 in H x 2.5 in W x 3.5 in D
• Enclosure Type: Open
• Terminal Type: Pressure Plate/Screw
