Product Description

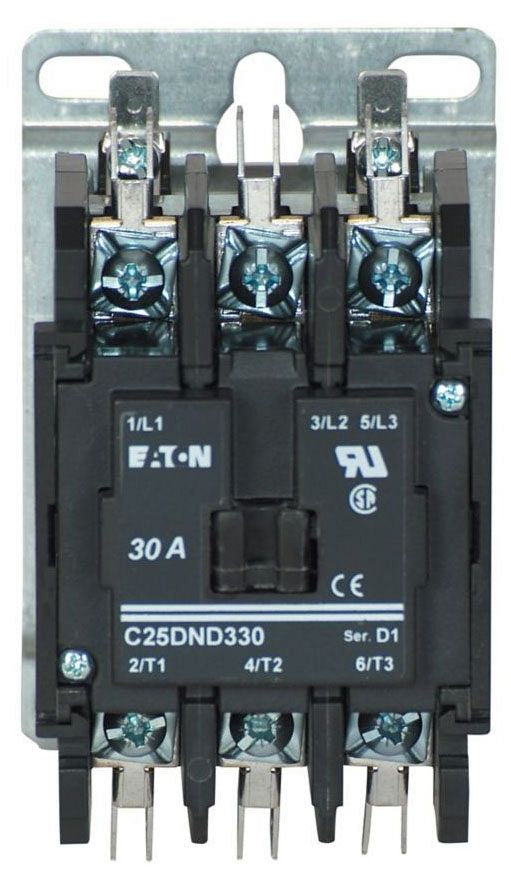

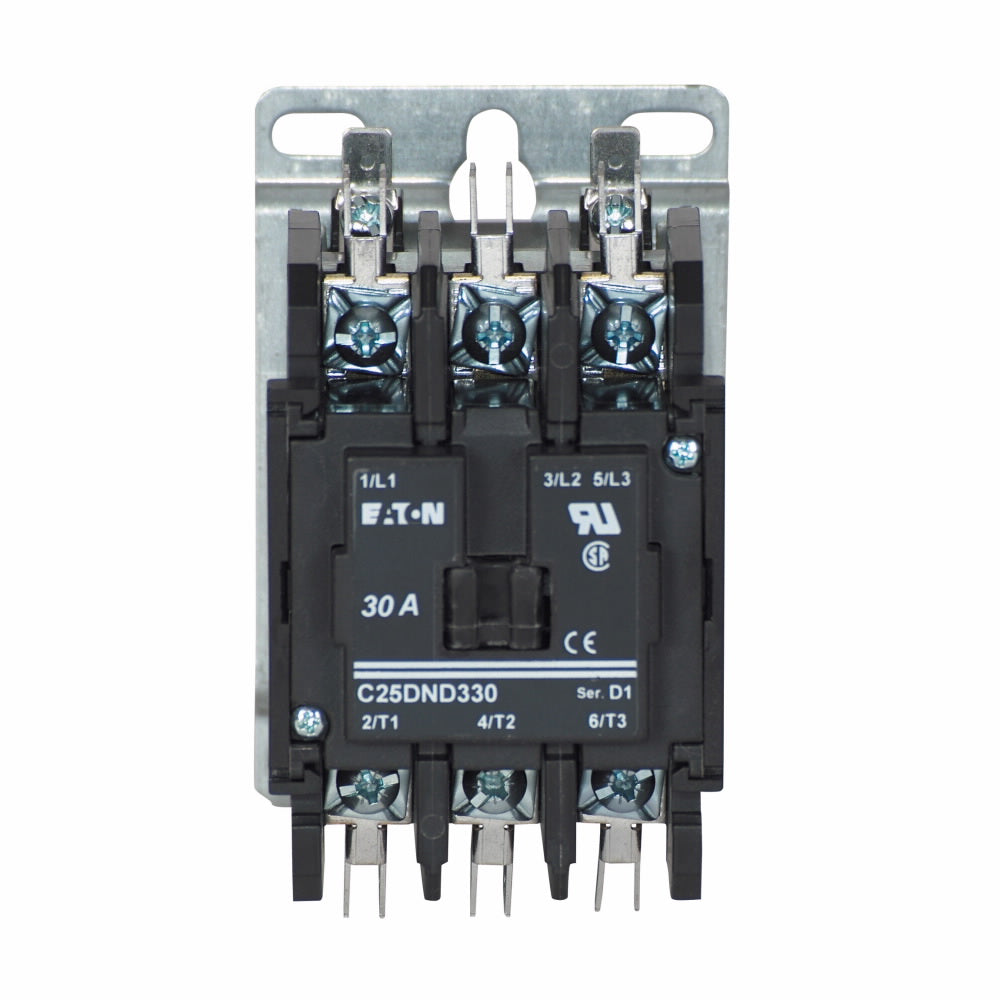

The Eaton C25DND330A is a definite purpose contactor designed for HVAC applications. It operates at 110 to 120 VAC with a maximum load of thirty amps inductive and forty amps resistive. This contactor is built with three poles and is ideal for controlling motors and other electrical loads.
- Three-pole configuration for effective load switching
- Quick-connect terminals for easy installation
- Open type enclosure for enhanced heat dissipation
Product Highlights
The Eaton C25DND330A is suitable for various industrial applications, particularly in HVAC systems. Its robust construction ensures it can handle demanding environments with ease.
Product Information
Standard Information
-
Brand: Eaton
-
MPN: C25DND330A
Technical Specifications
-
Coil Voltage: 110 to 120 VAC
-
Number of Poles: 3
-
Frequency Rating: 50/60 Hz
-
Maximum Load Current: 30 A Inductive / 40 A Resistive
-
Enclosure Type: Open with metal mounting plate
-
Connection Type: Pressure plate/screw
-
Terminal Type: Quick-connect
-
Dimensions: 3.35 inches L x 2.4 inches W x 3.75 inches H
