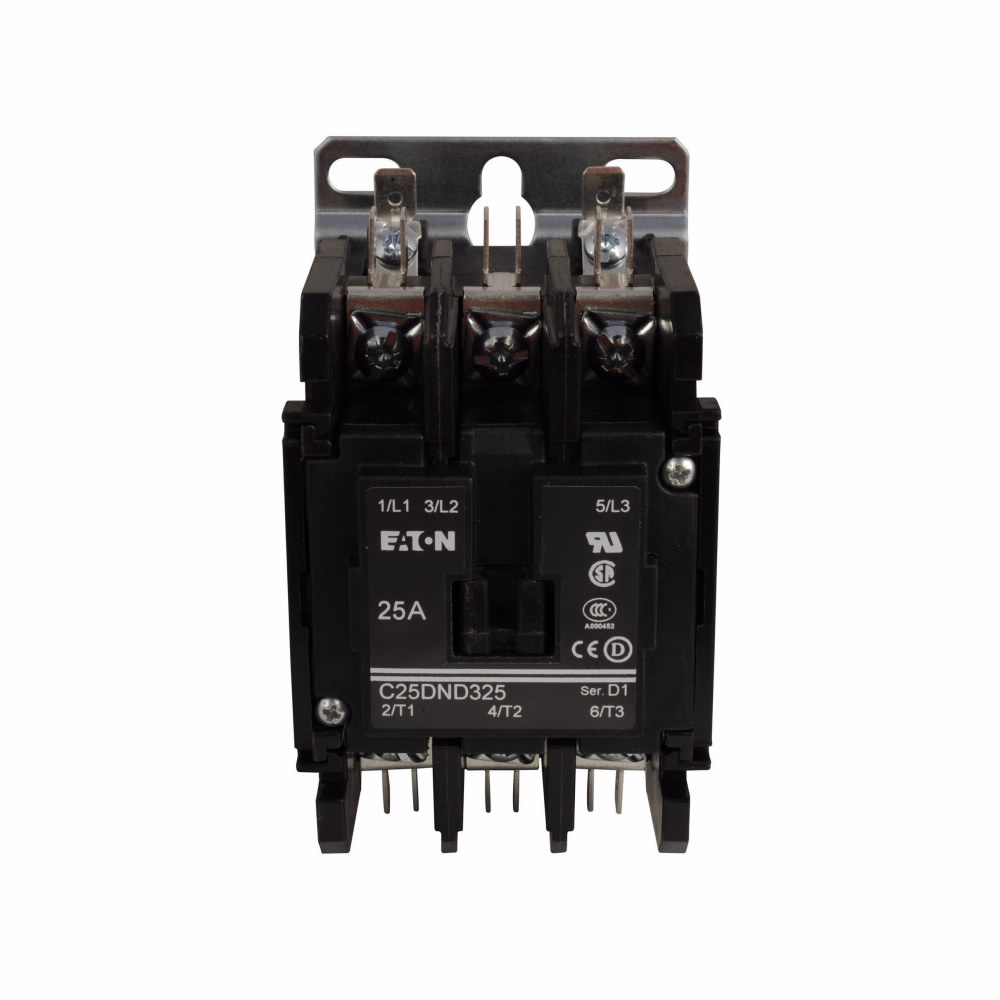

Eaton C25DND325B Non-Reversing 3-Pole 25A Definite Purpose Contactor

Product Description

Eaton's C25DND325B is a non-reversing, three-pole definite purpose contactor designed for heavy-duty applications within the HVAC and refrigeration industries. The unit operates at a coil voltage of 208-240VAC, suitable for 50/60 Hz setups, and boasts a robust open frame with a metal mounting plate enhancing installation ease and durability.

• Capable of handling currents up to 25A for inductive loads and 35A for resistive loads.
• Features screw and pressure plate connections alongside quick connect terminals for rapid setup.
• Compact design measuring 3.35 inches in length, 2.4 inches in width, and 2.5 inches in height.

Technical Specifications

• Type: Non-Reversing, Open
• Amperage: 25 Amp
• Voltage: 230 Volt
• Terminal Type: Screw/Pressure Plate and Quick Connect Terminals
• Standard: CSA, UL Recognized
• Enclosure Type: Open with Metal Mounting Plate
• Applications: For Electrical Assemblies, Panels and Original Equipment Manufacturers (OEMs)
