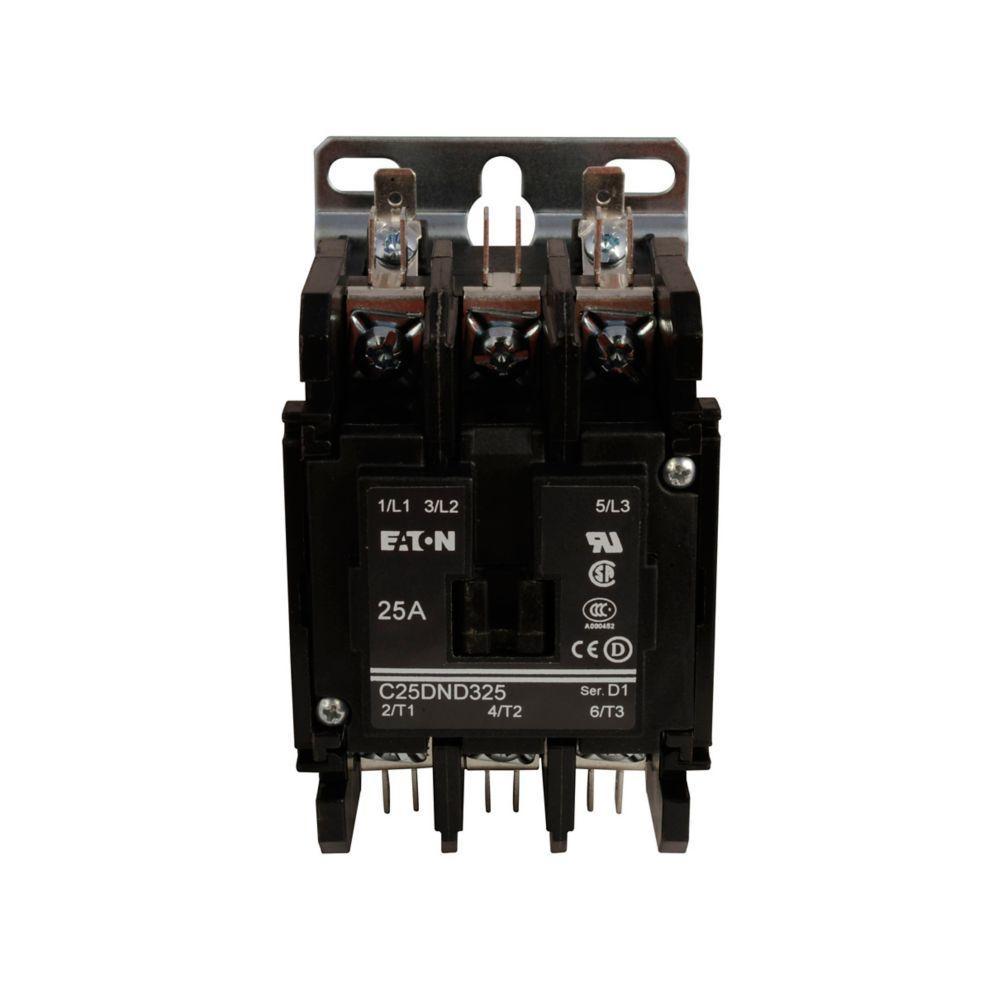

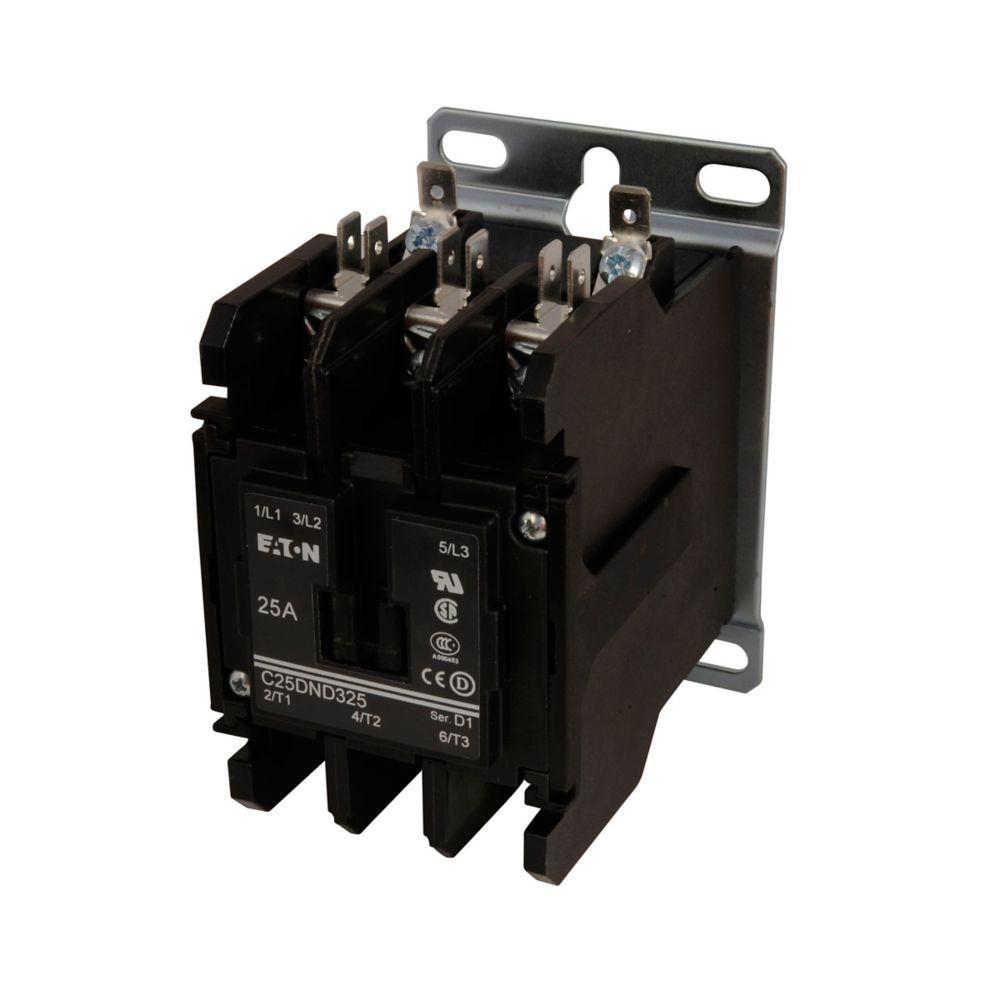

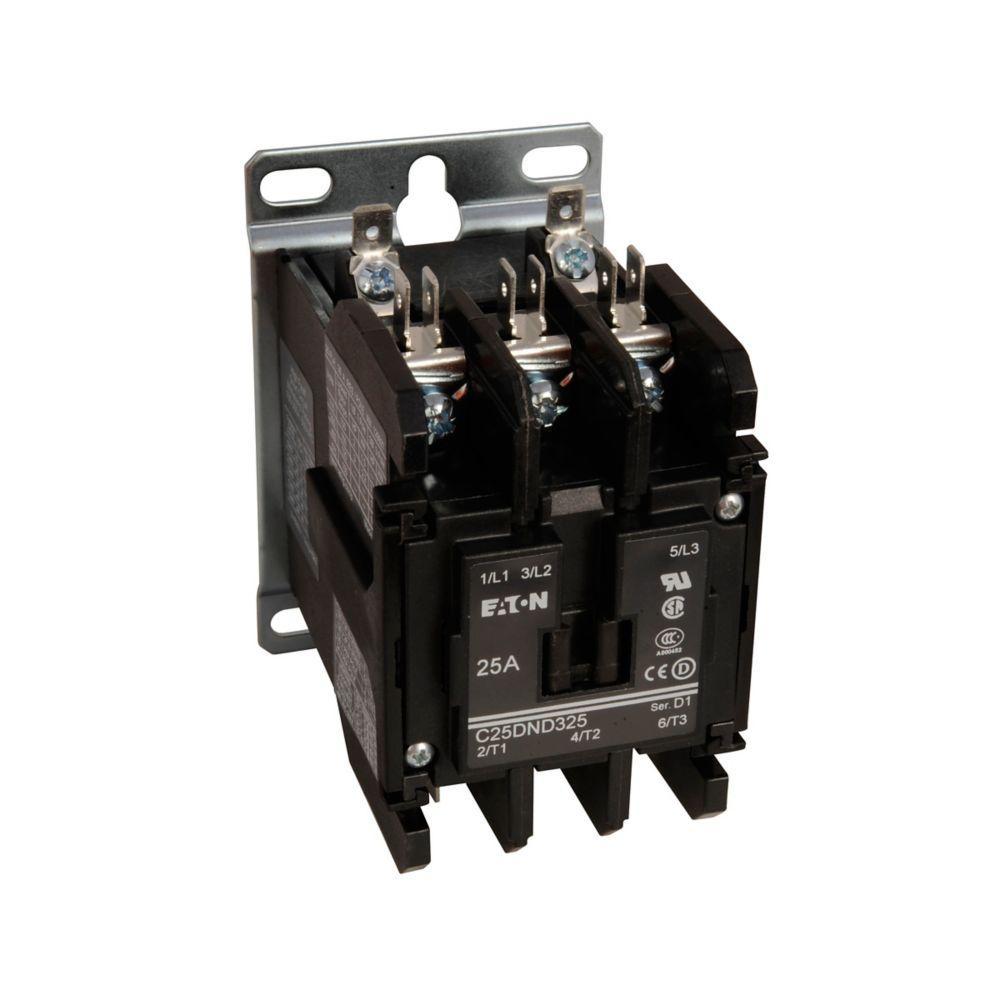

EATON C25DND325B-GL Definite Purpose Contactor 240 VAC 25 Amp

Product Description

The EATON C25DND325B-GL is a definite purpose contactor designed for HVAC applications. It operates at 240 volts AC, with a maximum load capacity of twenty-five amps. This non-reversing contactor features three poles and a sturdy metal mounting plate for reliable performance.

• Definite purpose contactor for HVAC applications
• Rated for twenty-five amps at 240 VAC
• Three-pole design for reliable switching

Product Highlights

This contactor is suitable for various heating and cooling systems in commercial and industrial settings. Its compact design and robust construction ensure lasting performance.

Product Information

Standard Information

• Manufacturer: EATON
• Type: Non-Reversing

Technical Specifications

• Coil Voltage: 208 to 240 VAC at 50/60 Hz
• Maximum Load Current: 25 A
• Enclosure Type: Open
• Mounting Type: Surface
• Connection Type: Quick-Connect (Side by Side)
• Operating Cycles: 300000 Cycles
• Operating Temperature: 150 deg F
• Dimensions: 3.5 in H x 2.5 in W x 3.5 in D
