Eaton C25DND215B Op N-R 2P 15Adpcnt S

EATON
Brand: EATON
SKU: C25DND215B
Availability: Out Of Stock
$267.45
$267.45
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

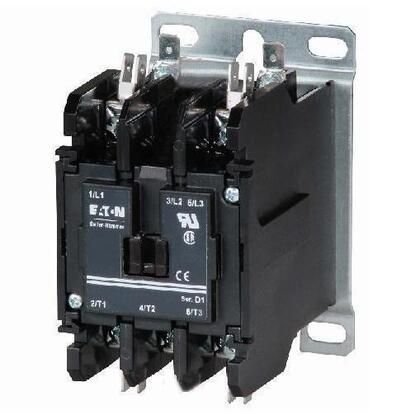

The Eaton C25DND215B definite purpose contactor is designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry. This non-reversing contactor features quick connection, a 15A amperage rating, and a coil voltage of 208-240 VAC at 50/60 Hz. It has an open enclosure with a metal mounting plate and screw/pressure plate with quick connect terminals.

  • Non-Reversing
  • Open enclosure with metal mounting plate
  • Screw/pressure plate and quick connect terminals

Product Highlights

Eaton C25DND215B contactor ideal for HVAC applications requiring reliable switching of single and three-phase loads.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: C25DND215B
Technical Specifications
Type
Non-Reversing
Brand
Eaton
Frame
15-50 A
Height
3-3/4 Inch
Length
3.35 Inch
Amperage
15 Amp
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Coil Voltage
208-240 V
TC Connection
Quick
Terminal Type
Screw/Pressure Plate And Quick Connect Terminals
Enclosure Type
Open With Metal Mounting Plate
Connection Type
Quick
Number of Poles
2 Pole
Frequency Rating
50/60 Hz
Product Length/Depth
3.35 in
Product Height
3.75 in
Product Width
2.4 in
Compliances
RoHS Compliant
Certifications
UL Recognized, CSA Certified
Product Type
Definite purpose contactor
Amperage Rating
15A
Coil
50/60 Hz
Inductive full load
15 A
Model
Contactor
Resistive load
20 A
Terminals
Screw
Part Number
C25DND215B
Manufacturer
Cutler Hammer, Div of Eaton
Pole
2
Amp
15A
Category
Contactors
Inductive Full Load
15A
Contact Current Rating
15 A
Control Voltage
240 V
Series
C25 Series
Options
Global listed
Product Series
C25
Family Series
Cutler Hammer, Div of Eaton Contactors, C25 Series
Nominal Coil Voltage
208 VAC, 240 VAC
Inductive Current Rating
15 A
Poles
2NO
Termination
Pressure Plate, Quick Connect, Screw
Enclosure
Open
Resistive Rating
20 A
Approvals
CSA, UR
Net Weight
1.1 lbs
Gross Weight
1.19 lbs
