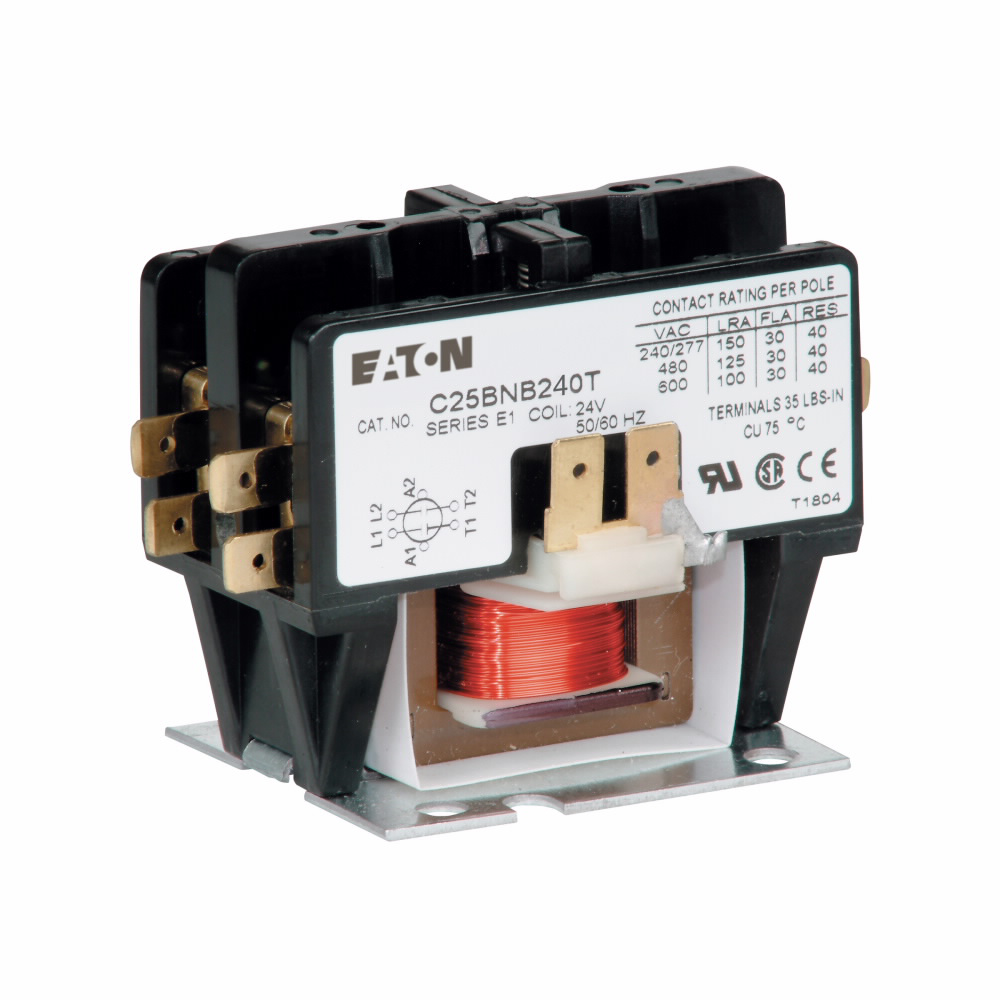

Eaton C25BNB240A Definite Purpose Control Contactor 30A (2 Pole) Replacement MPN

Product Description

The Eaton C25BNB240A is a definite purpose control contactor designed for effective switching and control in applications such as heating, ventilation, air conditioning, refrigeration, and power control equipment. This contactor operates at 110-120 volts with a maximum load current capacity of 40 amps. It features a compact two-pole design and has an open enclosure with a metal mounting plate.

• Two-pole contactor with a compact design
• Quick-connect terminal type for easy installation
• CSA certified and UL recognized for safety

Product Highlights

This Eaton contactor is suitable for a variety of applications, offering flexibility with quick-connecting capabilities and easy maintenance features.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Eaton

Technical Specifications

• Catalog Number: C25BNB240A
• Coil Voltage: 110-120 VAC
• Maximum Load Current: 40/50 A
• Frequency Rating: 50/60 Hz
• Connection Type: Quick-connect
• Number of Poles: 2
• Dimensions: 3.19 in L x 2.32 in W x 1.97 in H
• Operating Temperature: -13 to 158 degrees F
