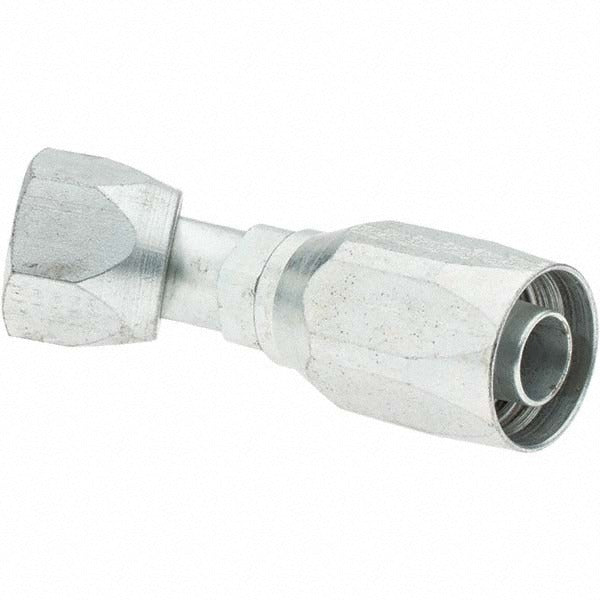

Eaton C24721 Female Swivel Fitting 1-1/16-12 Jic

Product Description

The EATON C24721 is a reusable female swivel fitting designed for hydraulic and fluid-transfer hose assemblies. It features a 1-1/16-12 JIC (Joint Industry Council) thread configuration and accepts a 5/8-inch hose ID. The swivel design allows the fitting body to rotate during installation, preventing hose twist and making it easier to achieve a proper seal. This style of reusable fitting does not require crimping equipment, making it a practical choice for field repairs and custom hose assembly work. Plumbers, hydraulic technicians, and fluid-power specialists working on mobile or stationary equipment will find this fitting suited for low-to-medium pressure hose connections.

This fitting is used where JIC 37-degree flare-style connections are specified, common in hydraulic systems, industrial fluid lines, and equipment service applications. The reusable design makes it well suited for repair situations where a press crimp is not available on-site. It is compatible with hoses measuring 5/8 inches in inner diameter. The female swivel end connects to a male JIC 1-1/16-12 port on pumps, valves, cylinders, or manifolds in both mobile and stationary hydraulic circuits.

Key Features

• 1-1/16-12 JIC thread size with 37-degree flare seat for a reliable metal-to-metal seal
• Female swivel design prevents hose twist during installation and tightening
• Reusable construction eliminates the need for crimping equipment during field assembly or repair
• Accepts 5/8-inch hose ID for direct compatibility with standard hydraulic hose
• Sold as a single fitting unit

Compatibility

Designed as an OEM-style reusable female swivel fitting for hydraulic hose assemblies requiring a 1-1/16-12 JIC connection and 5/8-inch hose ID.

Installation Notes

Installation should be performed by a qualified hydraulic technician or pipefitter. Depressurize and drain the hydraulic system fully before disassembling any hose or fitting. Inspect the JIC flare seat and hose end for damage before assembly. Follow the hose and fitting manufacturer assembly instructions for proper socket and nipple engagement; do not overtighten, as JIC fittings rely on flare-seat contact rather than thread crush for sealing.
