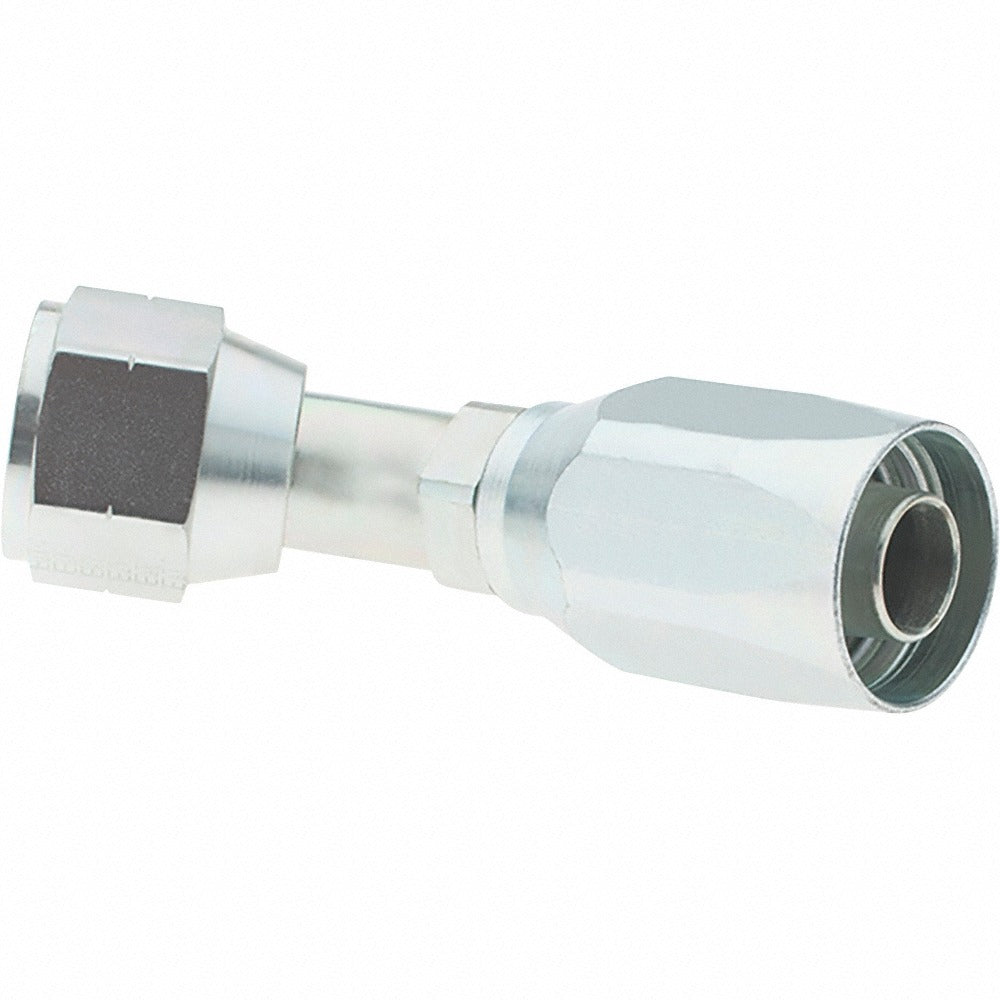

Eaton C24720 Female Swivel Fitting 1-1/16-14 Sae

Product Description

The EATON C24720 is a reusable female swivel hose fitting designed for hydraulic and fluid-transfer hose assemblies. It features a 1-1/16-14 SAE female thread and accepts a 5/8 inch hose inner diameter, making it a field-reusable connection option that eliminates the need for crimping equipment. Swivel-style fittings allow the female end to rotate during assembly, reducing torque transfer to the hose and preventing twist-induced stress at the connection point. This type of fitting is commonly installed by hydraulic service technicians, plumbers, and industrial maintenance professionals working on high-pressure fluid lines.

The C24720 is suited for applications where a reusable, field-serviceable hose end is required. The 1-1/16-14 SAE thread pattern is a standard sizing found across hydraulic systems, fluid power equipment, and industrial machinery. The fitting accommodates 5/8 inch ID hose, a size commonly used in medium-pressure hydraulic circuits and fluid-transfer assemblies. Its reusable design makes it practical for field repairs and replacement work where quick turnaround is necessary.

Key Features

• Reusable design allows field installation without crimping tools
• 1-1/16-14 SAE female thread for compatibility with standard SAE port sizes
• Accepts 5/8 inch hose inner diameter
• Swivel construction reduces installation torque and hose twist stress
• Sold individually, quantity of one per package

Compatibility

Designed as an OEM-style replacement or service fitting for hydraulic and fluid-transfer hose assemblies requiring a 1-1/16-14 SAE female swivel end with 5/8 inch hose ID.

Installation Notes

Installation should be performed by a qualified hydraulic technician or licensed tradesperson familiar with fluid power systems. Depressurize and drain the hose assembly fully before removing or installing any fittings. Follow applicable IFGC and system manufacturer guidelines for assembly torque and pressure ratings. Inspect the hose end and fitting threads for damage before reassembly to ensure a leak-free connection.
