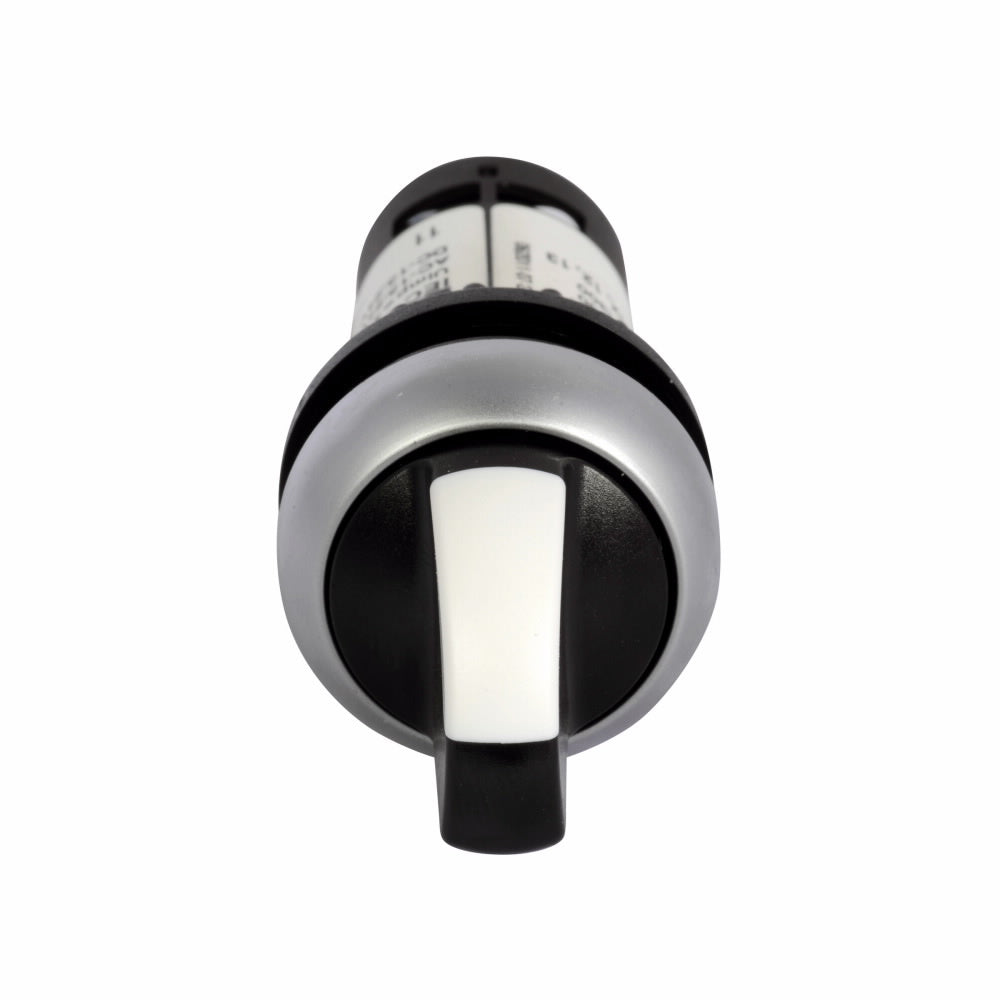

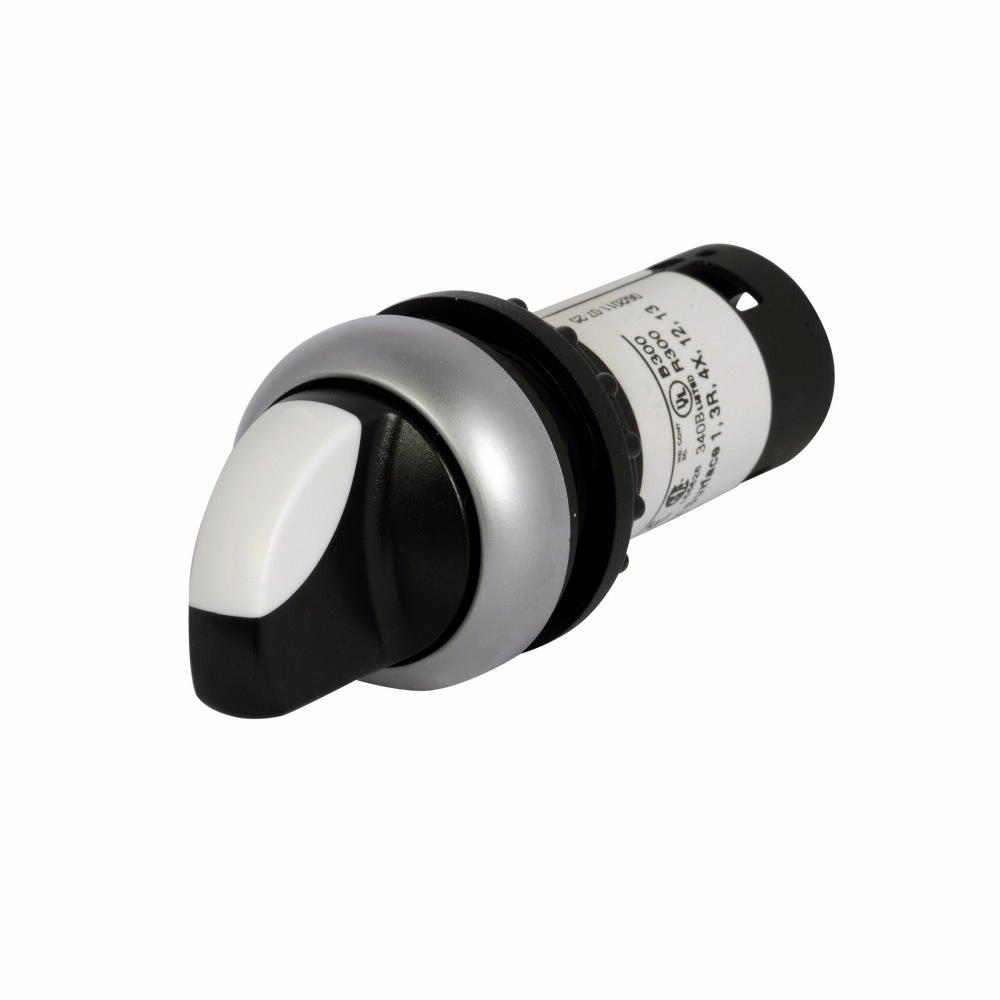

Eaton C22-WRK3-K20 Compact Pushbutton Selector Switch Non-Illuminated 22.5mm 2NO

Product Description

The Eaton C22-WRK3-K20 is a compact pushbutton selector switch. This device is designed for electrical assemblies and panels. It features a maintained contact mode with three positions. The switch operates at 60 volts and has a contact configuration of two normally open (2NO).

• Compact design with a size of twenty-two point five millimeters
• Knob actuator, suitable for various applications
• Environmental ratings of NEMA 4X and IP65 for added protection

Product Highlights

This selector switch is ideal for industrial automation and control systems.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: C22-WRK3-K20

Technical Specifications

• Action: Maintained, 60 degrees V Position
• Actuator: Knob
• Application: Electrical assemblies, panels, and EOEM
• Contact Configuration: 2NO
• Enclosure Rating: NEMA 4X/13, IP65
• Temperature Range: -25 to 70 degrees Celsius operating, -30 to 80 degrees Celsius storage
• Size: 22.5 mm
• Standards: UL Listed, CSA Certified, EN 60947, IEC 60947
