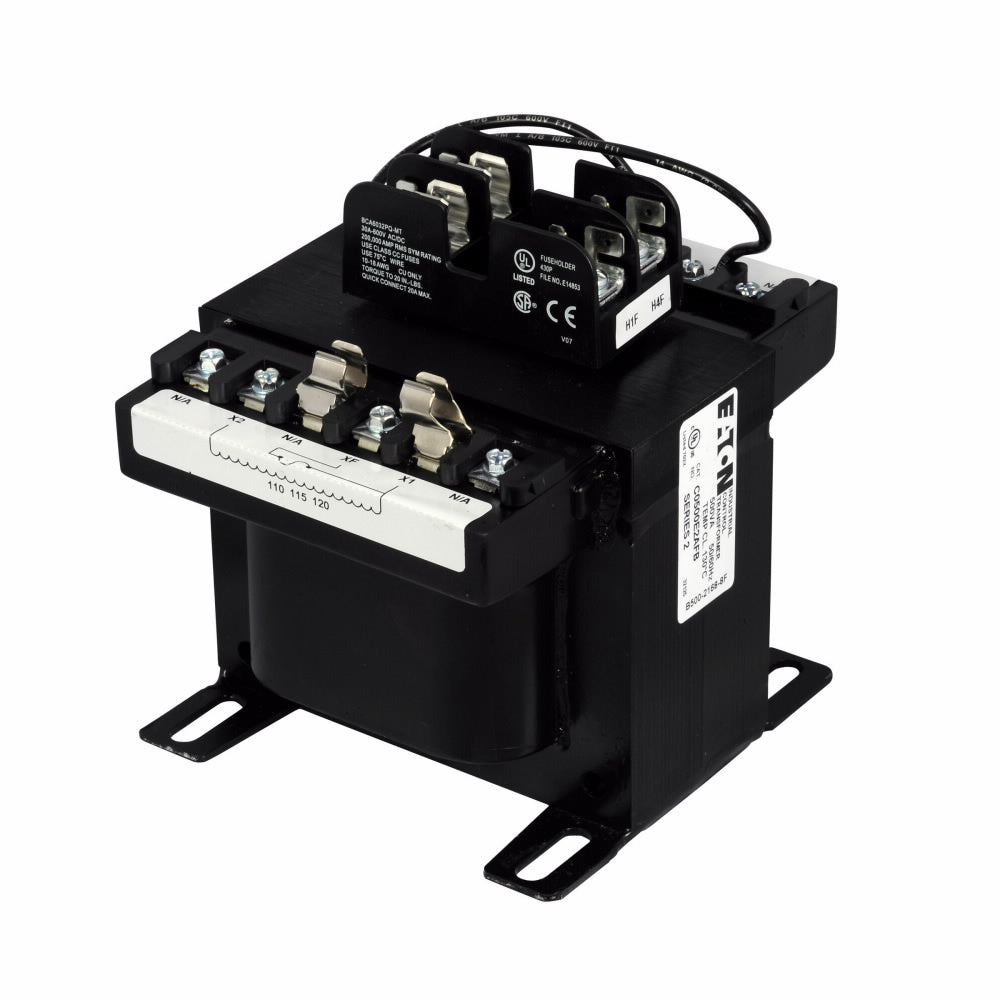

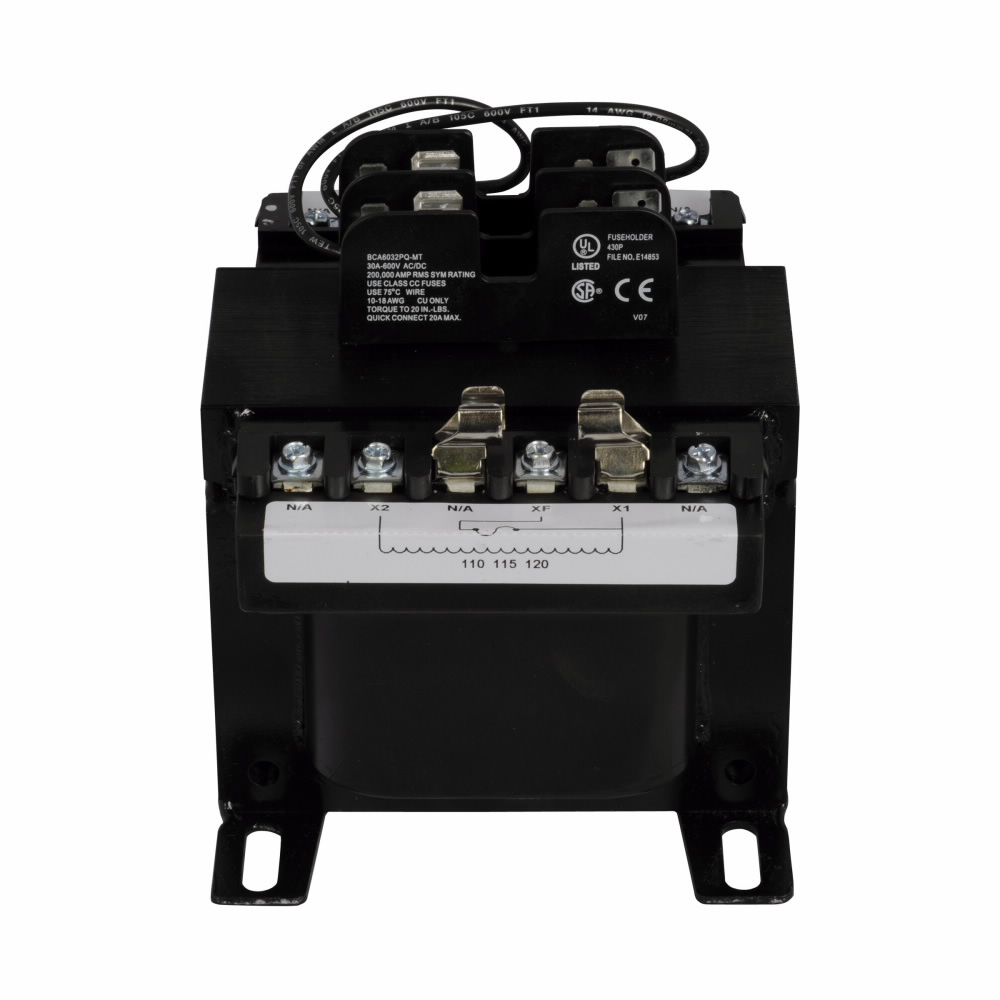

Eaton C0500E2AFB 500VA Type MTE Control Transformer 230 x 460, 240 x 480, 220 x 440 V Primary 120/115/110 V Secondary

Product Description

The Eaton Control Transformer, model C0500E2AFB, is designed to provide reliable voltage reduction for industrial applications. It features multiple primary voltage ratings of two hundred thirty by four hundred sixty volts, two hundred forty by four hundred eighty volts, and two hundred twenty by four hundred forty volts. Its secondary outputs include one hundred twenty, one hundred fifteen, and one hundred ten volts with a power rating of five hundred volt-amperes.

• Primary voltages: 230 x 460V, 240 x 480V, 220 x 440V
• Secondary voltages: 120/115/110V
• Temperature rating of 55 degrees Celsius

Product Highlights

This unit is ideal for machine tool control devices, providing necessary isolation while maintaining efficiency.

Product Information

Standard Information

• Manufacturer: Eaton
• Type: Industrial Control Transformer

Technical Specifications

• Catalog Number: C0500E2AFB
• Primary Voltage: 230 x 460 V | 240 x 480 V | 220 x 440 V
• Secondary Voltage: 120/115/110 V
• Power Rating: 500 VA
• Frequency: 50/60 Hz
• Phase: 1 ph
• Temperature Rating: 55 degrees C
• Connection Type: Copper Magnet Wire/Molded-In
• Enclosure Material: Silicon Steel
• Standards: CSA Certified, UL Listed, RoHS Compliant
