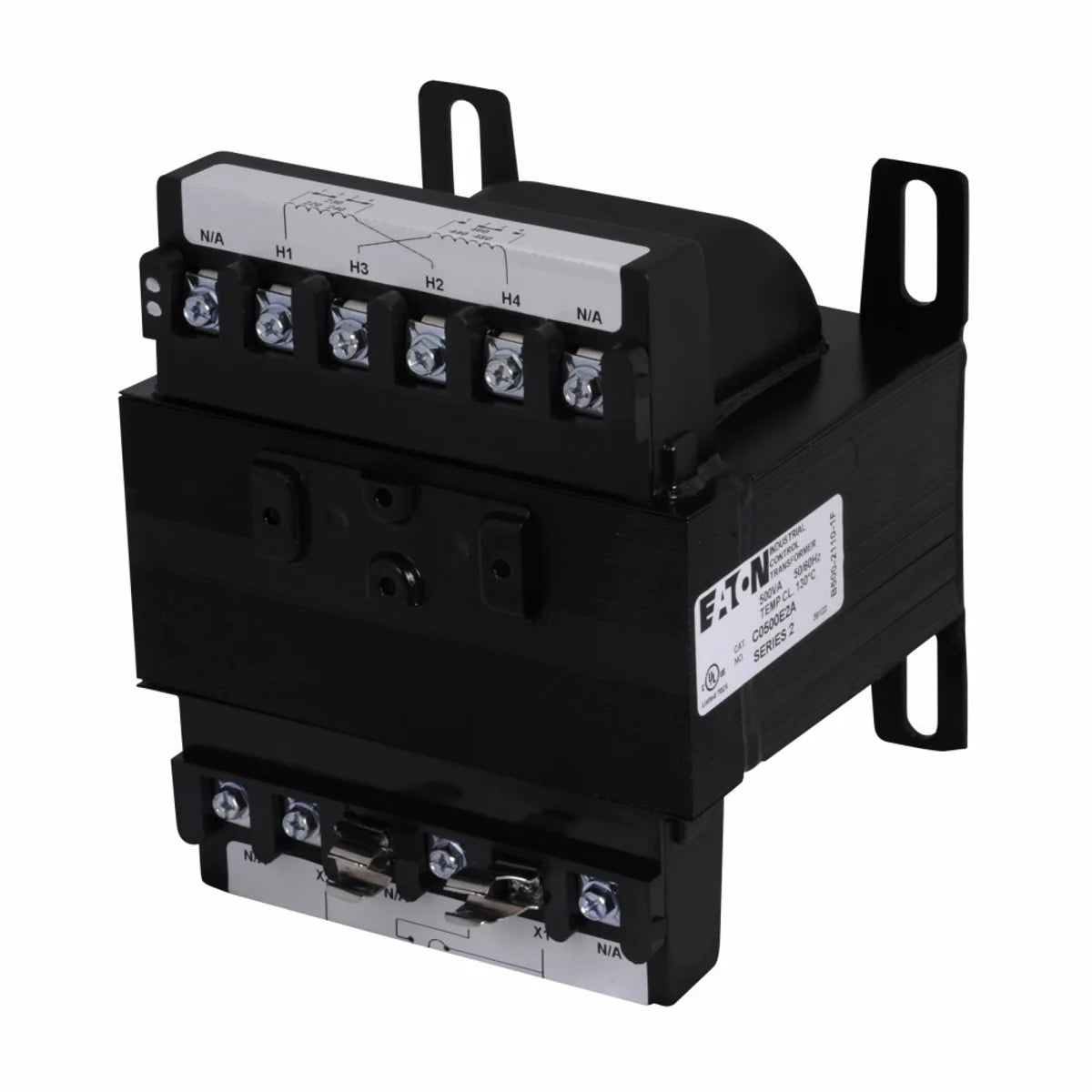

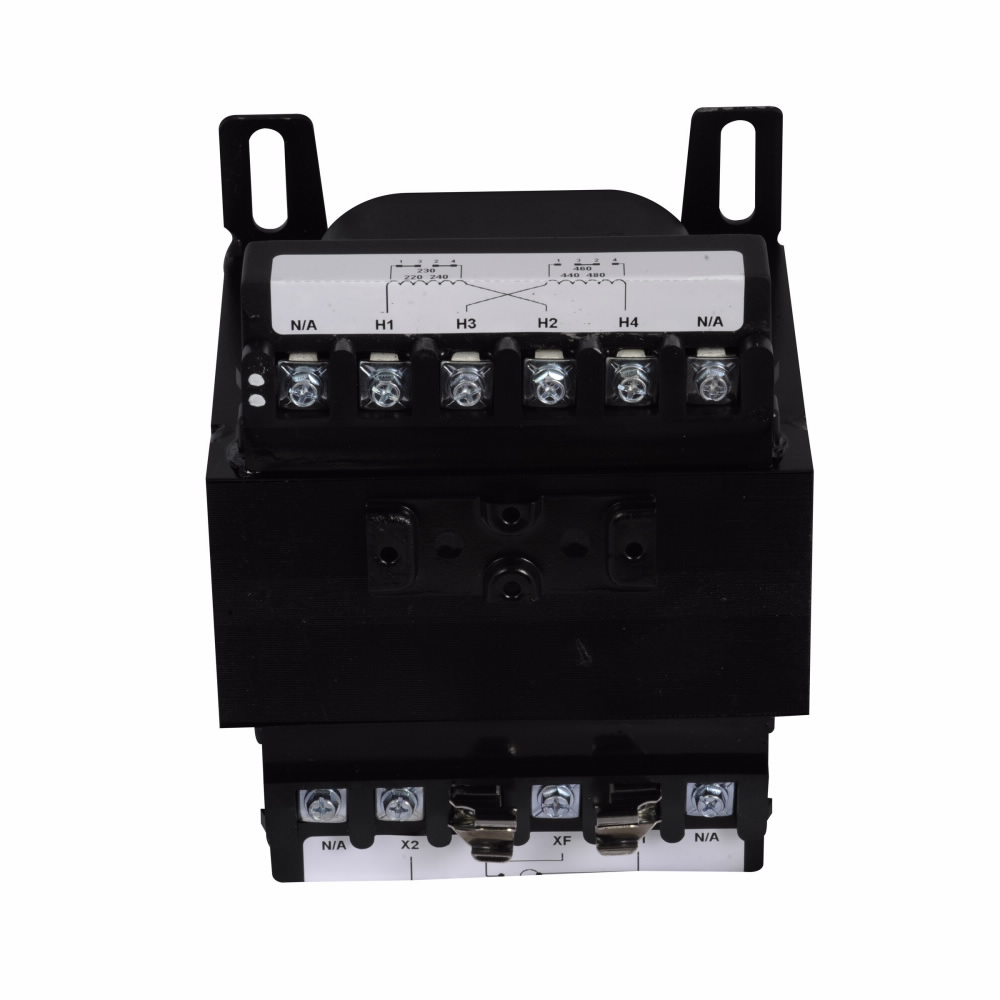

Eaton C0500E2A Type MTE Control Transformer 500 VA (Each) Replacement MPN

Product Description

The Eaton C0500E2A is an industrial control transformer designed for applications requiring reliable stepped-down voltages. This model features a primary voltage of two hundred twenty to four hundred eighty volts and a secondary voltage of one hundred twenty volts. Efficiently built, it meets strict ANSI/NEMA ST-1 standards for performance, making it suitable for machine tool control devices.

• Primary Voltage: 220/440V, 230/460V, 240/480V
• Secondary Voltage: 120/115/110V
• Power Rating: 500 VA with a temperature rating of 55 degrees Celsius

Product Highlights

This transformer is ideal for isolating control circuits from power circuits, ensuring safety and performance in industrial applications.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: C0500E2A

Technical Specifications

• Power Rating: 500 VA
• Primary Voltage: 220 x 440 V | 230 x 460 V | 240 x 480 V
• Secondary Voltage: 120/115/110 V
• Temperature Rating: 55 degrees C
• Coil Material: Copper Windings
• Enclosure Material: Stainless Steel
• Weight: 17.4 lb
• Dimensions: 6.11 in L x 5.25 in W x 5.14 in H
