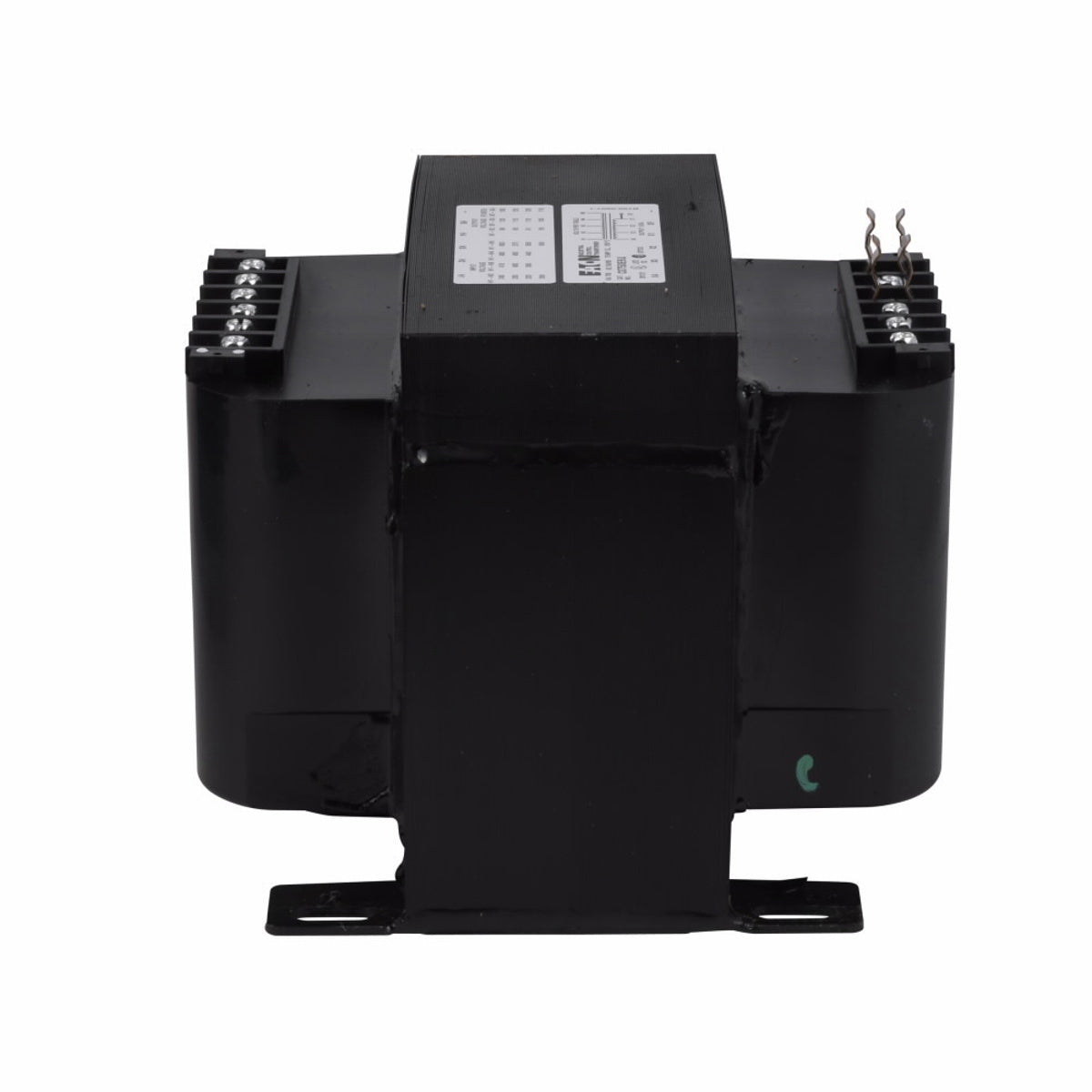

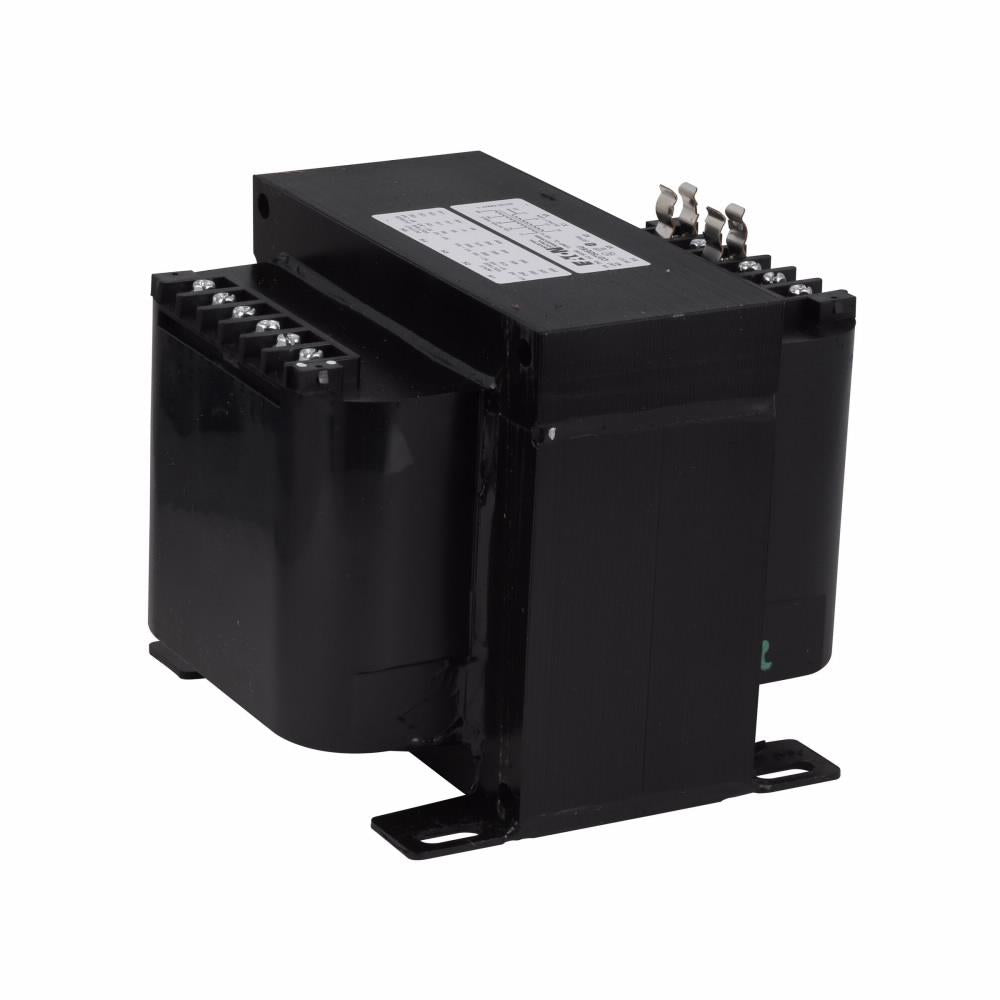

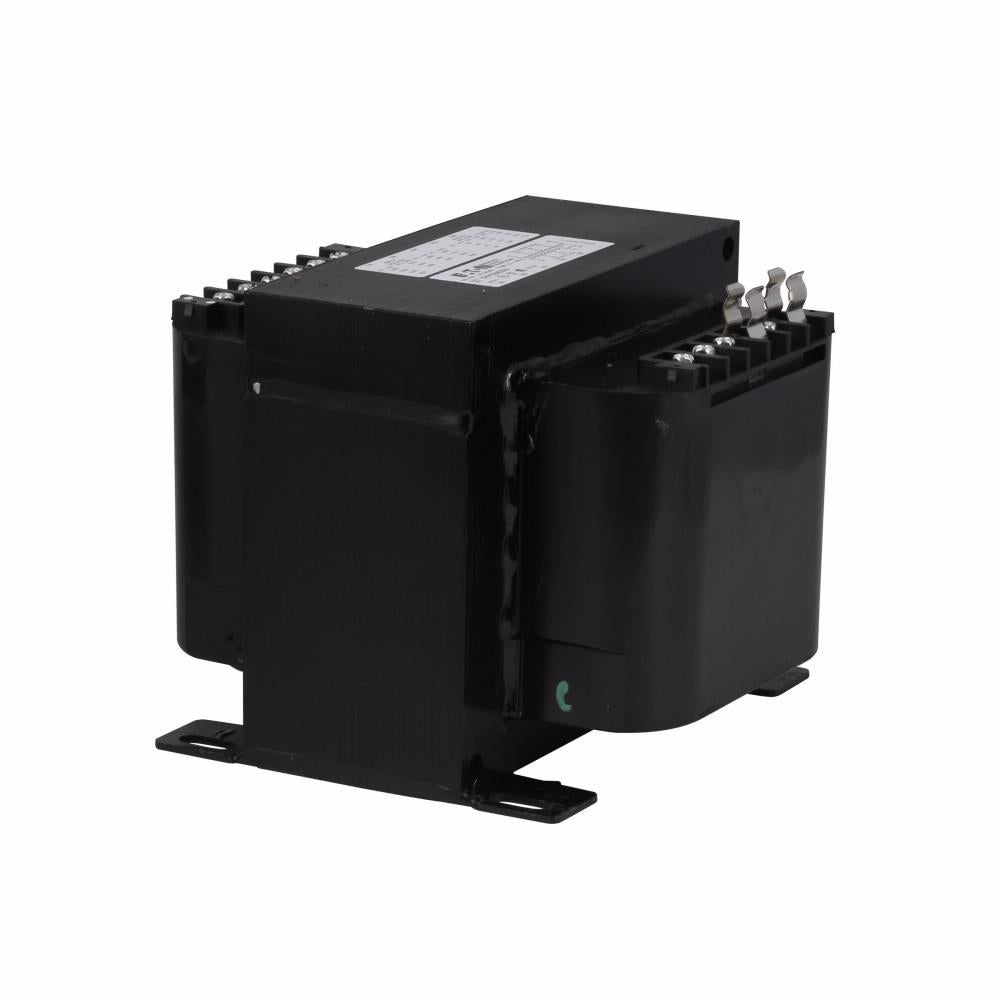

EATON C0350E5E TRANSFORMER CTRL 23/110 24/115 25/120V

Product Description

The EATON C0350E5E Control Transformer is designed for various industrial applications. This transformer provides stepped-down voltages to machine tool control devices. It has a primary voltage input of two hundred to four hundred eighty volts, and the secondary voltage output options are twenty-three to one hundred ten, twenty-four to one hundred fifteen, and twenty-five to one hundred twenty volts.

• Type MTE design for efficient power regulation
• Compliant with ANSI/NEMA ST-1 requirements
• Features copper magnet wire for improved performance

Product Highlights

The EATON C0350E5E Control Transformer facilitates effective voltage management in a single-phase system, ensuring superior regulation under varying loads. The robust design includes molded-in terminals for durability and epoxy-encapsulated coils for moisture protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: C0350E5E

Technical Specifications

• Type: Type MTE
• Primary Voltage: 200/220/440, 208/230/460, 240/480 V
• Secondary Voltage: 23/110, 24/115, 25/120 V
• Power Rating: 350 VA
• Frequency Rating: 50/60 Hz
• Housing Material: Silicon Steel
• Temperature Rating: 55 degrees C
• Connection Type: Copper Magnet Wire/Molded-In
• Dimensions: 5.354 in L x 5.236 in W x 4.764 in H
