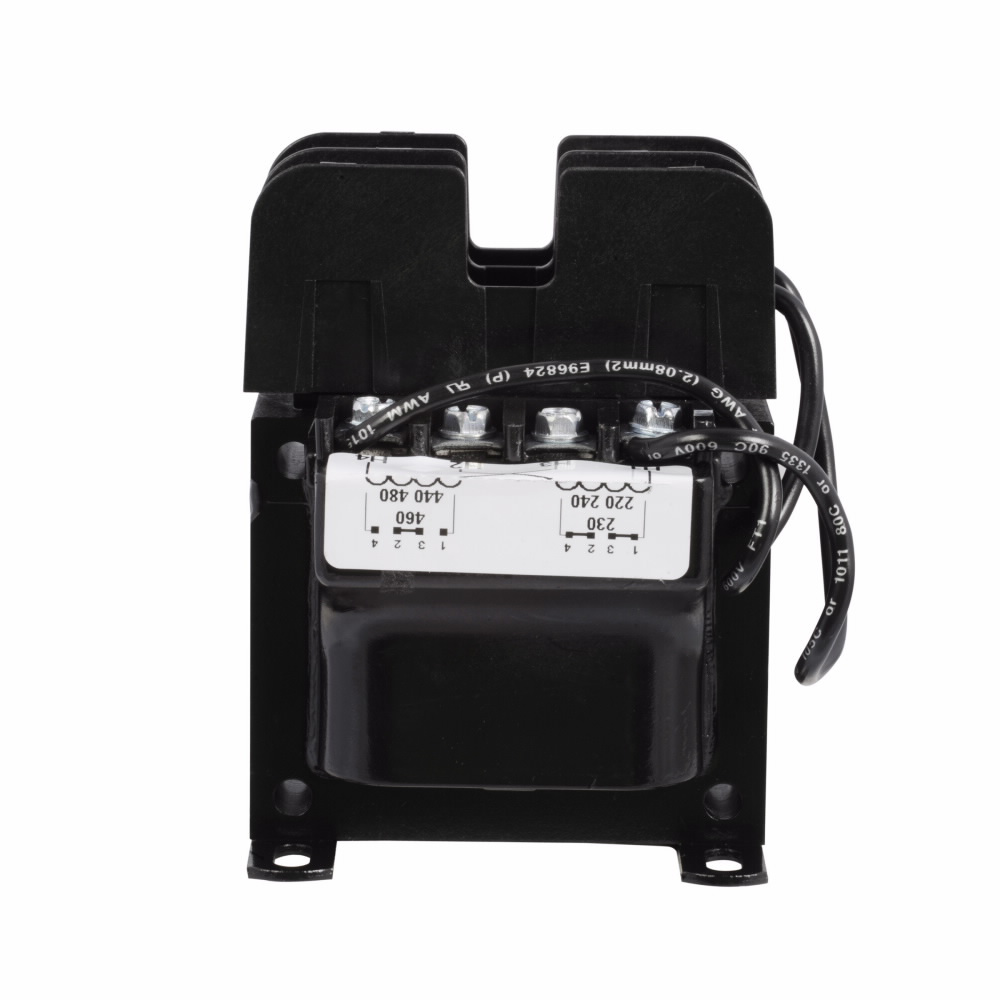

Eaton C0250E2AFB Type MTE Industrial Control Transformer 240/480V 250VA

Product Description

The Eaton C0250E2AFB Industrial Control Transformer offers reliable voltage conversion for industrial settings. Designed to step down voltages, it serves as an essential component in electrical systems. It features primary voltages of 240/480V and secondary voltages of 120/115/110V, with a power capacity of 250VA.

• Reliable voltage conversion
• Durable design
• Compact size

Product Highlights

Engineered to convert 240/480 volts to 120 volts, this transformer provides stable and precise voltage output. It is suitable for a range of low to medium-power devices and is built to withstand harsh conditions.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Eaton

Technical Specifications

• Catalog Number: C0250E2AFB
• Primary Voltage: 240/480V, 230/460V, 220/440V
• Secondary Voltage: 120/115/110V
• Power Rating: 250 VA
• Frequency Rating: 50/60 Hz
• Phase: 1
• Enclosure Material: Silicon Steel
• Temperature Rating: 55 Degrees C
• Width: 4.488 inches
• Height: 5.29 inches
• Length: 4.18 inches
• Weight: 9.3 lbs
• Standards/Approvals: UL Listed, CSA Certified, cUL Certified, RoHS Compliant
• Coil Material: Copper Windings
