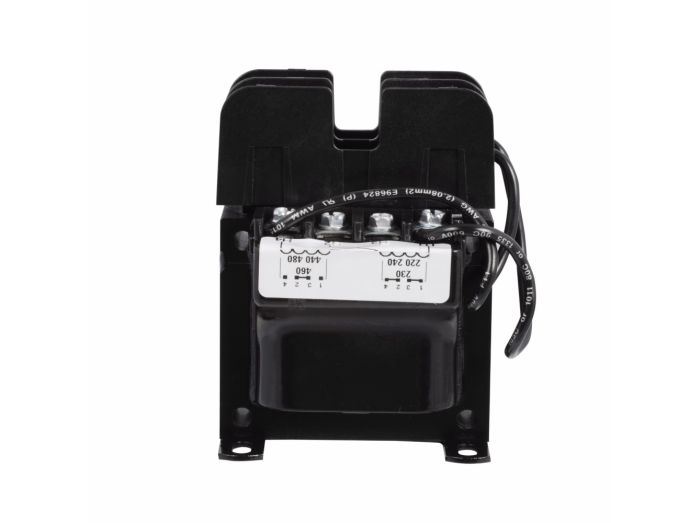

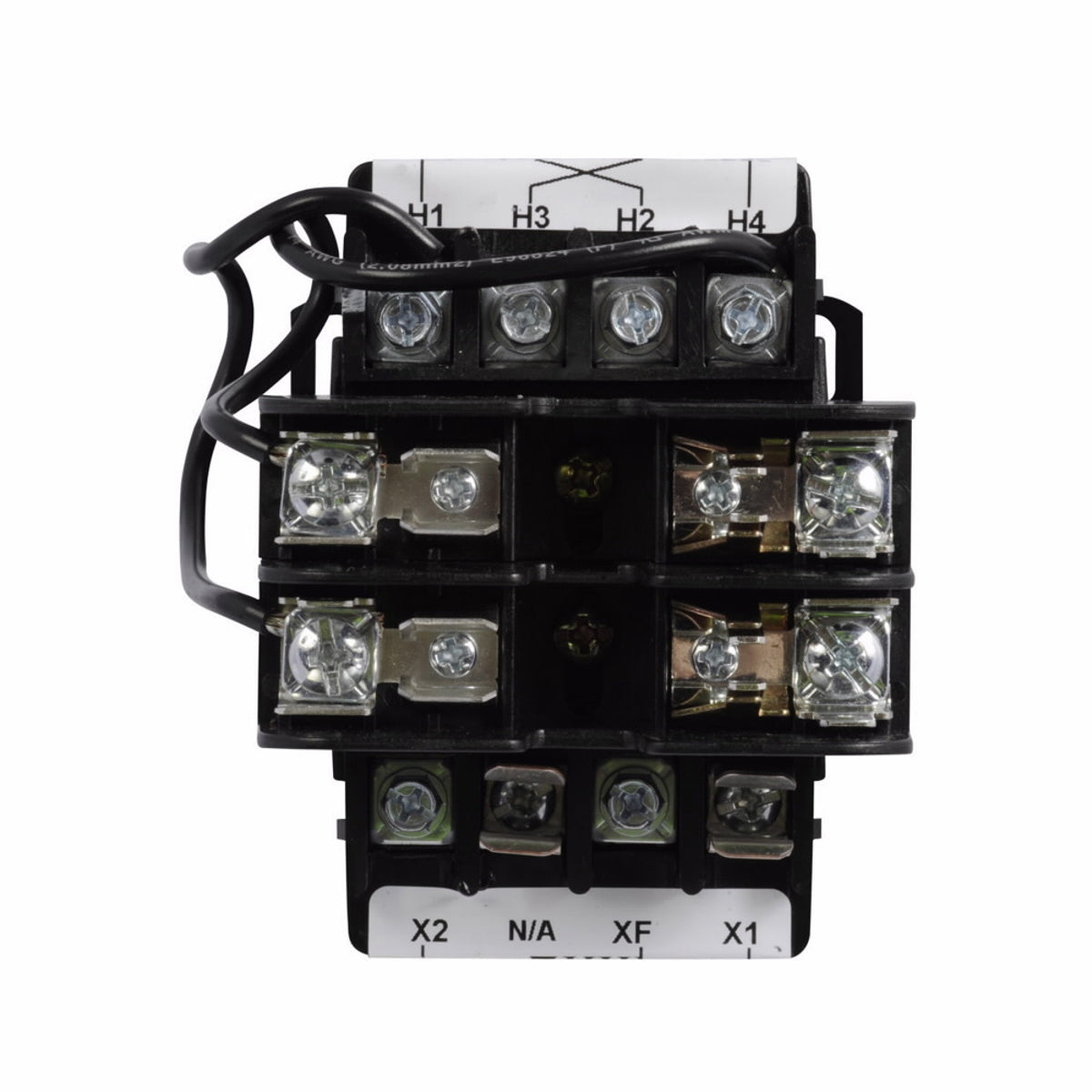

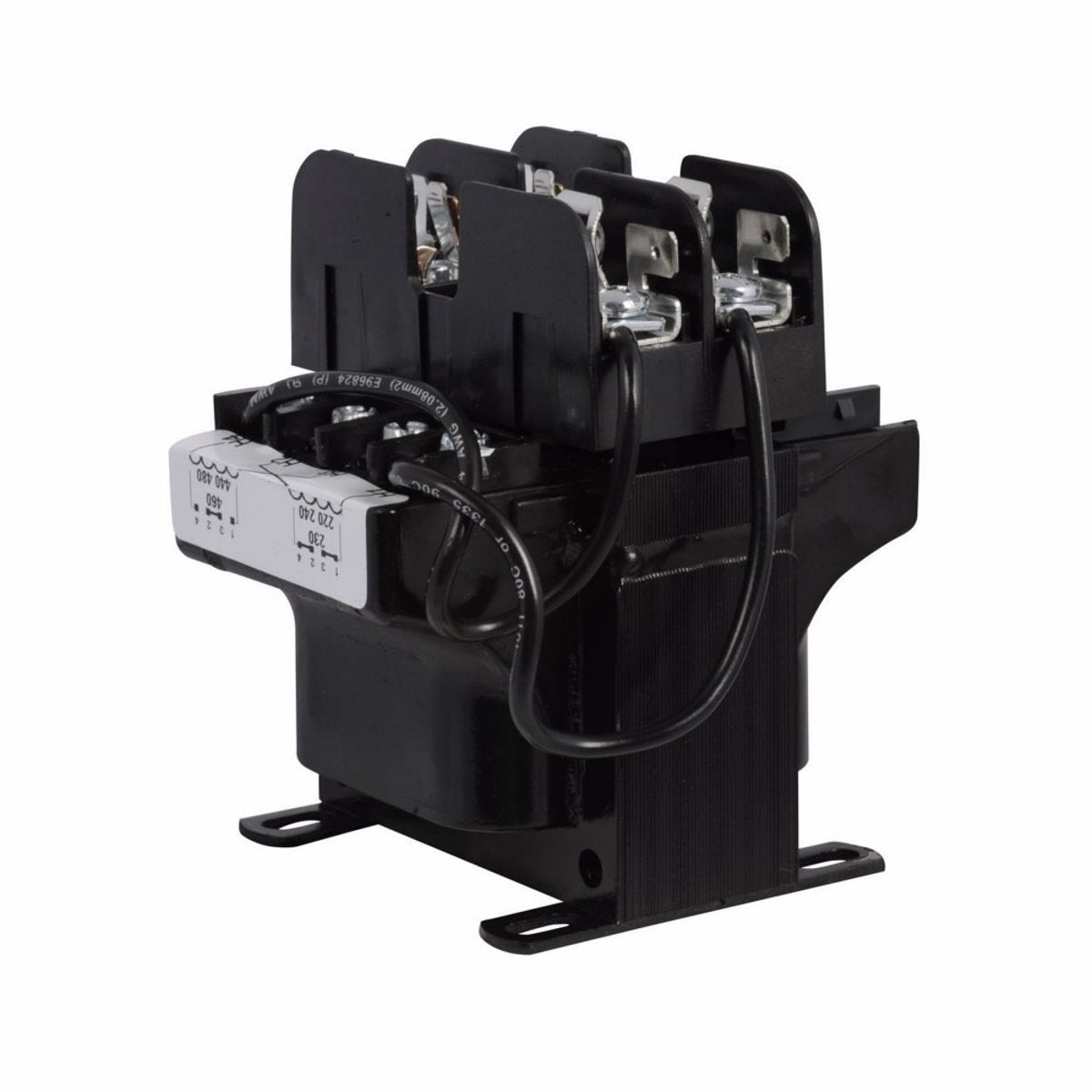

Eaton C0200E2AFB Type MTE Industrial Control Transformer 200 VA

Product Description

The Eaton C0200E2AFB is a Type MTE industrial control transformer that provides stepped-down voltages to machine tool control devices. It is designed for loads requiring good regulation and exceeds ANSI/NEMA requirements. The transformer has a 50/60 Hz operation standard and must pass rigid tests for turns ratio, insulation, continuity, and over potential.

• Molded-in terminals allow for maximum durability.
• Copper magnet wire provides for high quality, efficient operation.
• Epoxy encapsulated coils provide protection from moisture and contaminants.

Product Highlights

This industrial control transformer is suitable for applications requiring compact construction and isolated control circuits.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: C0200E2AFB
• Country of Origin: United States

Technical Specifications

• Catalog Number: C0200E2AFB
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: United States
• Made in USA: Yes
• Application: Other
• Primary Voltage: 230 x 460 V|220 x 440 V|240 x 480 V
• Secondary Voltage: 120/115/110 V
• Standard: CSA Certified,UL Listed,cUL Certified,RoHS Compliant
• UPC: 786680420887
• GTIN: 00786680420887
• Item Type: Industrial control transformer
• Temperature Rating: 55 Degrees C
• Connection Type: Copper Magnet Wire/Molded-In
• Housing Material: Silicon Steel
• Power Rating: 200 VA
• Frequency Rating: 50/60 Hz
• Phase: 1 ph
• Type: Type MTE
• Applications: Other
• Coil Material: Copper Windings
• Enclosure Material: Stainless Steel
• Tap Size: None
• Enclosure Construction Style: Encapsulated
• Volts, Primary: 240/480, 230/460, 220/440V
• Volts, Secondary: 120, 115, 110V
• Temperature Rise: 55 deg C
• Terminal Type: Screw, Standard
• Fusing: 2-Pole Primary Rejection Type Fuse Block, Secondary Fuse Clips
• Product Type: Industrial control transformer
• Design: MTE
• Volt ampere rating: 200 VA
• Modification 1: Factory-mounted two-pole primary fuse block for non-rejection type fuses
• Special features: Primary fuse block
• Product Series: MTE
• Family Series: Cutler Hammer, Div of Eaton Transformers, MTE Series
• Description: Eaton Type MTE industrial control transformer, pv: 240 x 480v, 230 x 460v, 220 x 440v, taps: none, sv: 120/115/110v, 55°c, 200 va
• Primary Fuseholder: Included
• Secondary Fuseholder: Included
• Termination: Integrally Molded Terminal Blocks
• Cover Included: No
• Insulation Class: Class B
• Temperature Rise (F): 176 °F
• Approvals: CSA, UL
• Standards/Approvals: ANSI Specified|CSA Certified|UL 5085 File No. E46323|cUL File No. E46323|RoHS Compliant|NEMA ST-1|IEEE Certified|IEC 61558
• Compliances: RoHS Compliant
• Certifications: UL Listed CSA Certified cUL Certified
• Catalog Notes: Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130°C insulation system standard, Molded-in terminals for maximum durability
