EATON C0100E5E TRANSFORMER CTRL 23/110 24/115 25/120V

Product Description

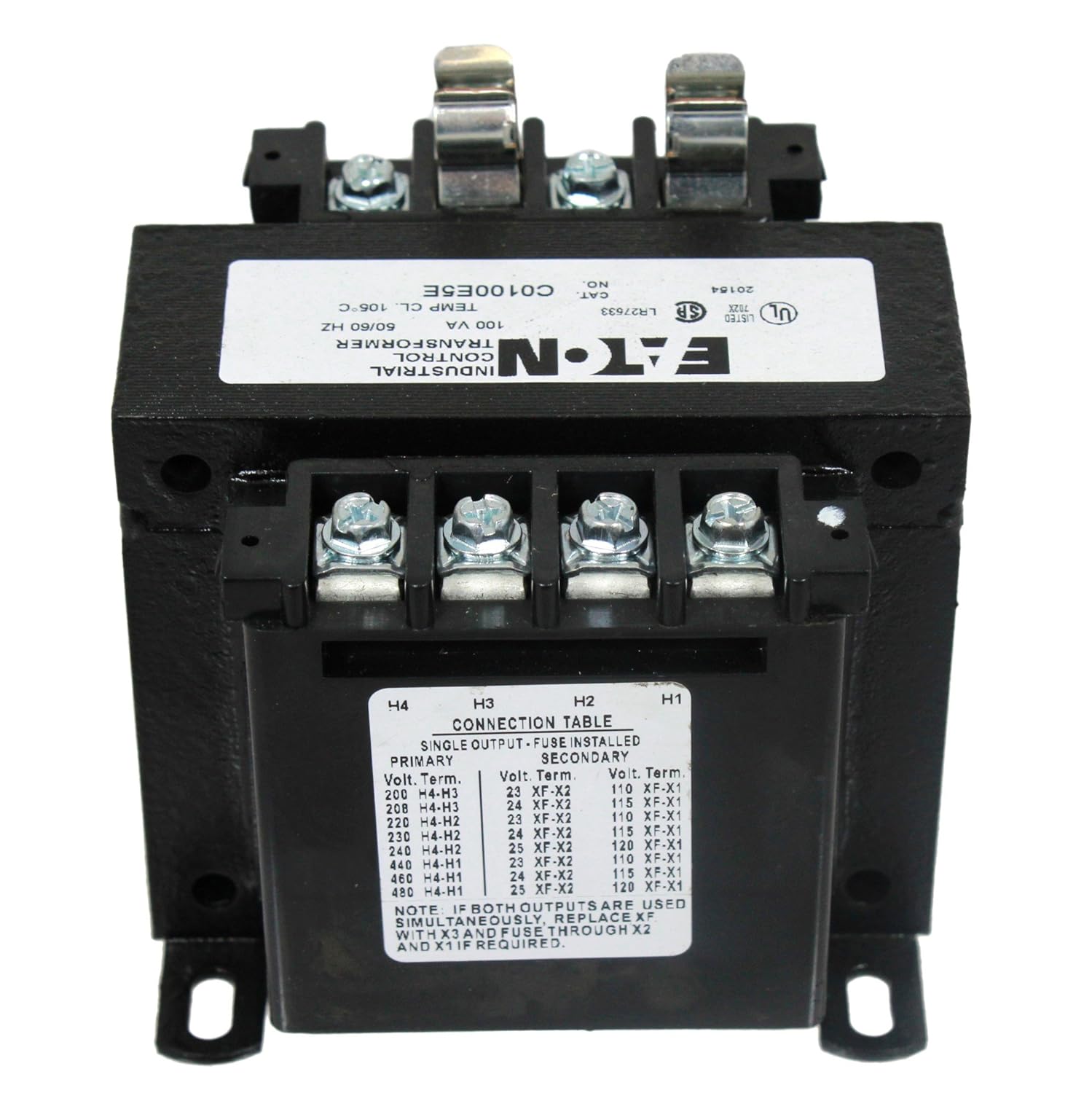

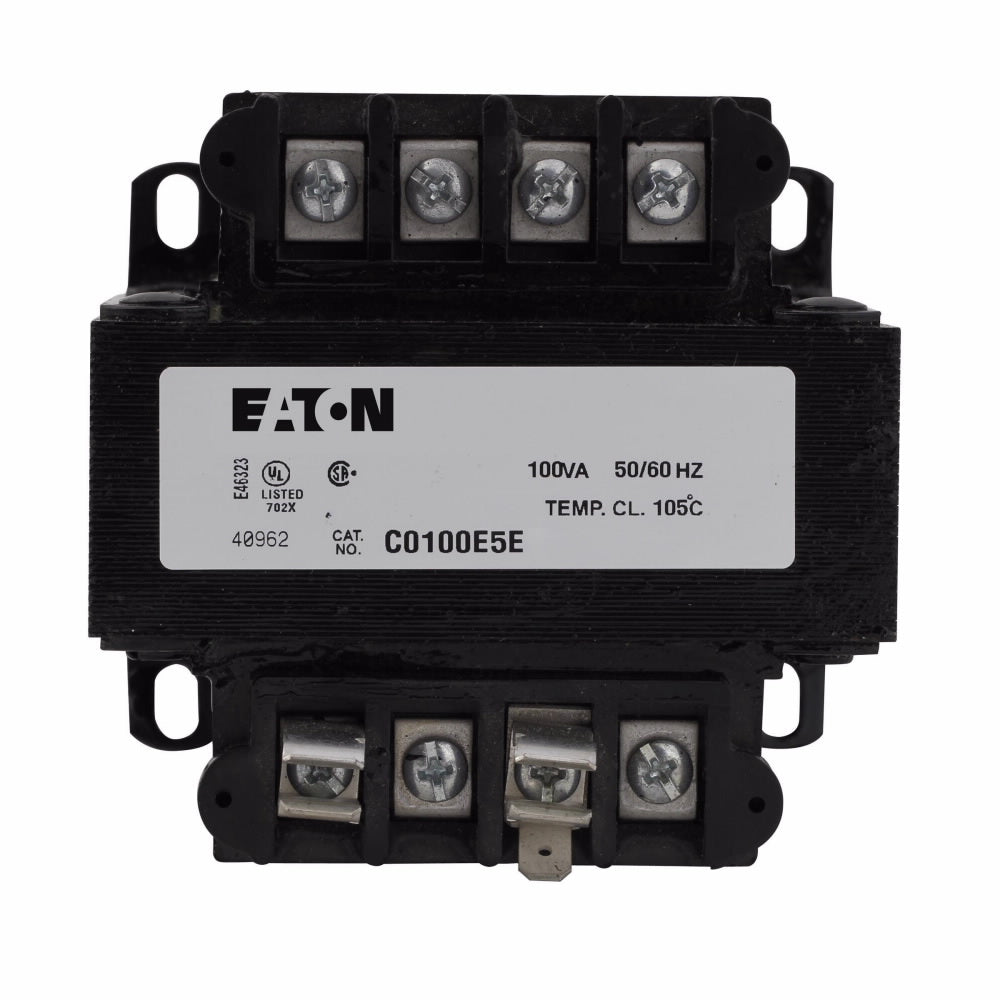

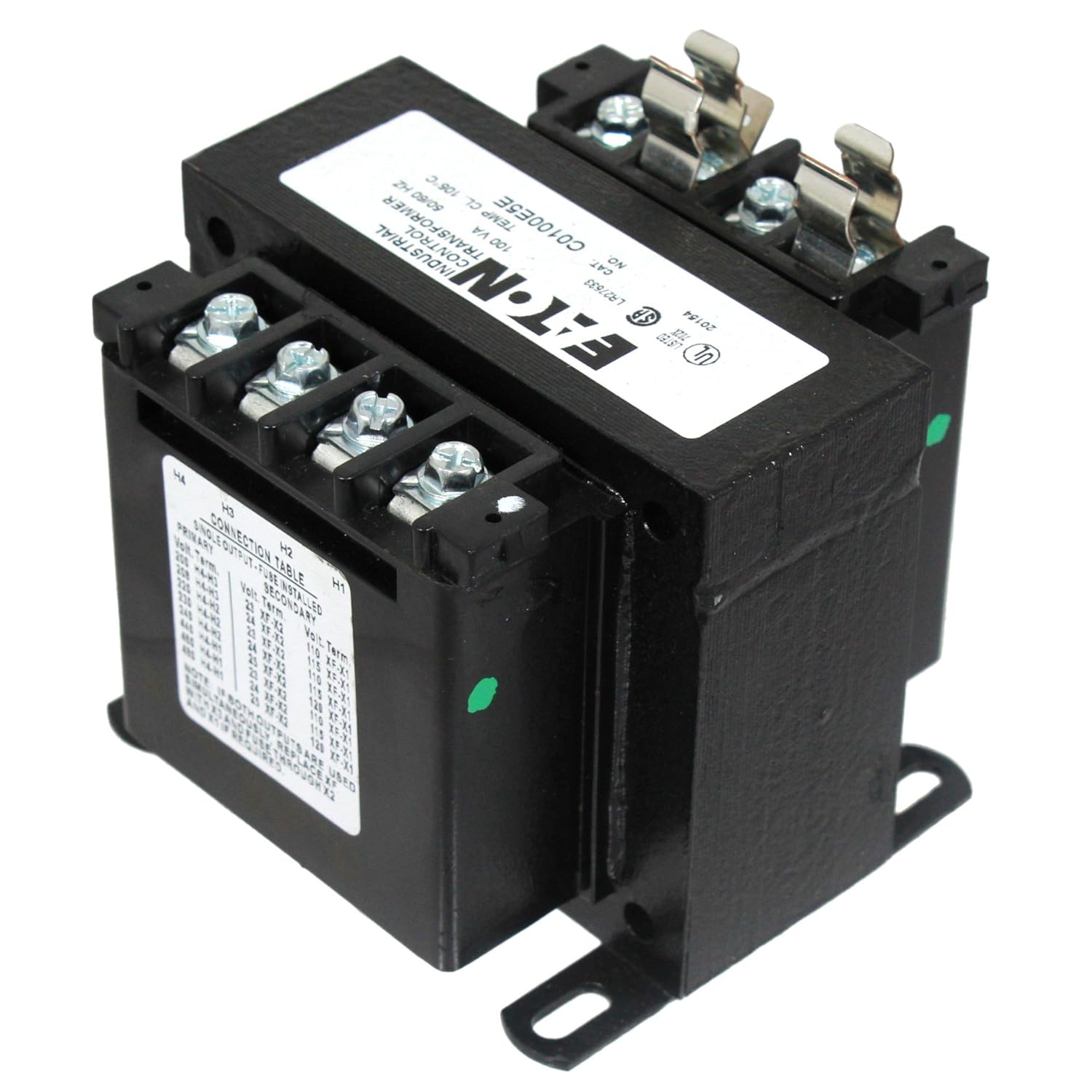

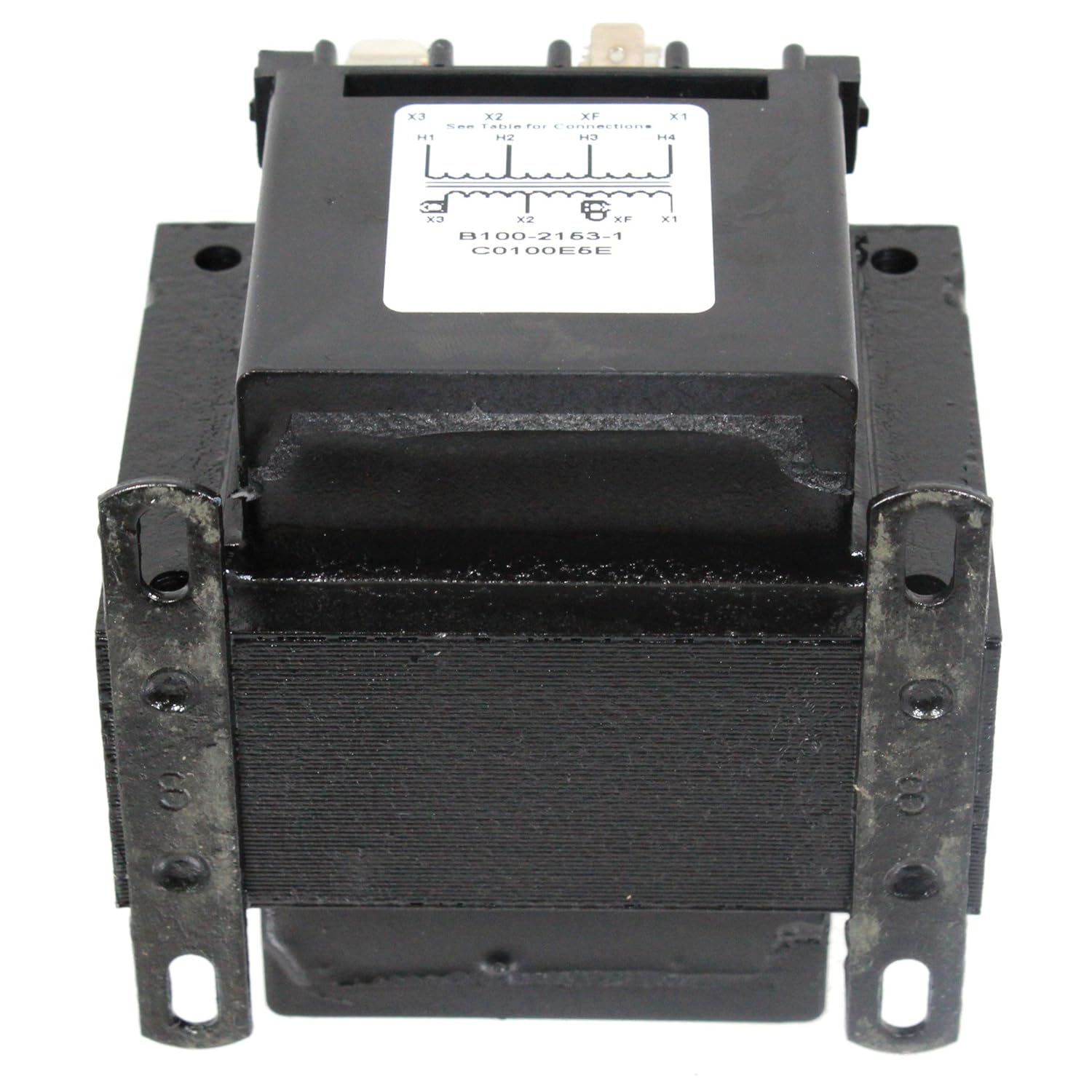

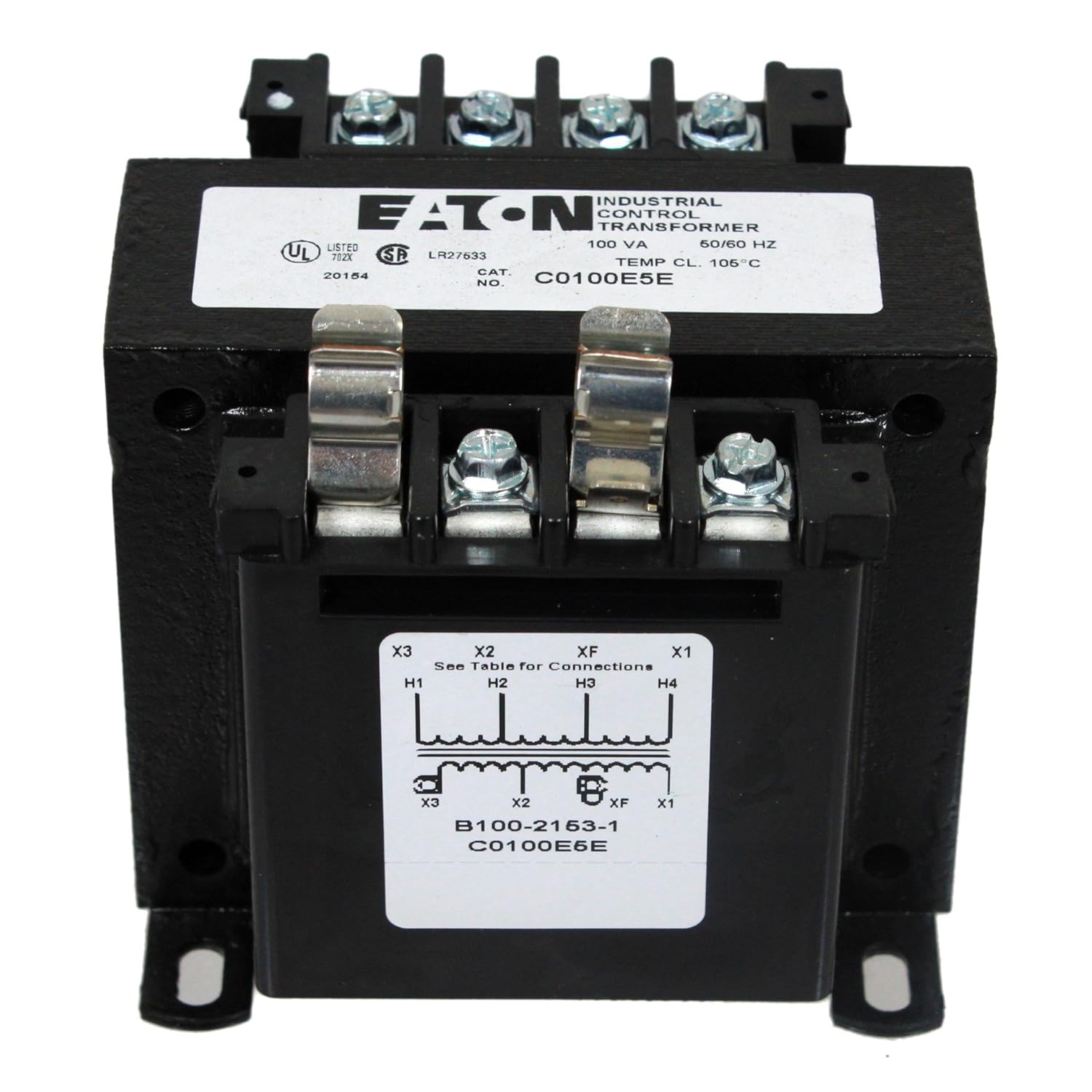

The EATON Control Transformer, MPN C0100E5E, is designed to reduce voltage for machine tool control devices. This transformer operates with various primary voltages, including 200, 220, 440, and 208, 230, 460, while providing a secondary output of 23, 110, 24, 115, or 25, 120 volts. It supports a power rating of 100 VA and is suitable for 50/60 Hz applications.

• Type MTE for industrial use

• Copper magnet wire for high-efficiency performance

• Meets ANSI/NEMA ST-1 standards

Product Highlights

This transformer allows for flexibility in machine tool connection and isolation from power circuits, enhancing safety and efficiency.

Product Information

Standard Information

• Manufacturer: EATON

• Power Rating: 100 VA

Technical Specifications

• Type: MTE

• Primary Voltage: 200/220/440 V; 208/230/460 V; 240/480 V

• Secondary Voltage: 23/110 V; 24/115 V; 25/120 V

• Frequency Rating: 50/60 Hz

• Weight: 5.9 lb

• Dimensions: 5.63 x 3.74 x 3.189 Inches

• Temperature Rating: 55 deg C

• Housing Material: Silicon Steel
